Kinugawa Turbo TF035HL-15T Upgrade for Mitsubishi Pajero Triton 4M41 DiD 3.2L 00~03

Sale price $749.00 Regular price $749.00


- Mitsubishi Pajero III 3.2 Di-D 2000-2003 with the Diesel 4M41 118/121 Kw 165 Hp 3.2L Engine TF035HL-14GK, 49135-03410, 49135-03411, ME191474, ME203949, 2246666

This is an Upgrade Turbocharger which is a Direct Fit replacement for the original unit fitted to the Mitsubishi Pajero III 3.2 Di-D with the 3.2L 4M41 engine/s - No modifications are required. This turbo is a bolt-on replacement and upgrades for the original TF035HL-14GK, 2246666 unit. Increase 30% torque and 20% horsepower.

Wheels Spec
- Compressor wheel:  Upgraded to 42/56 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
(stock is 39.58 / 51 mm)
- Turbine wheel: 43 / 37.7 mm

Turbines Housing
- A/R: 4cm turbine Housing

Bearing Type
- Journal Bearing with 360-degree performance thrust bearing kit

Cooling systems
- Oil and water cooling

Actuator Pressure
- 1.0 bar / 14.7 psi-drive will go with Turbo.
- 0.5bar, 0.8 bar, 1 bar, 1.2 bar, 1.5 bar, available 1.7 bar and 2.0 bar, Please add a comment about your order if you need to change it.

Situation code
- Brand New

The set includes
- 1 x workpiece turbocharger

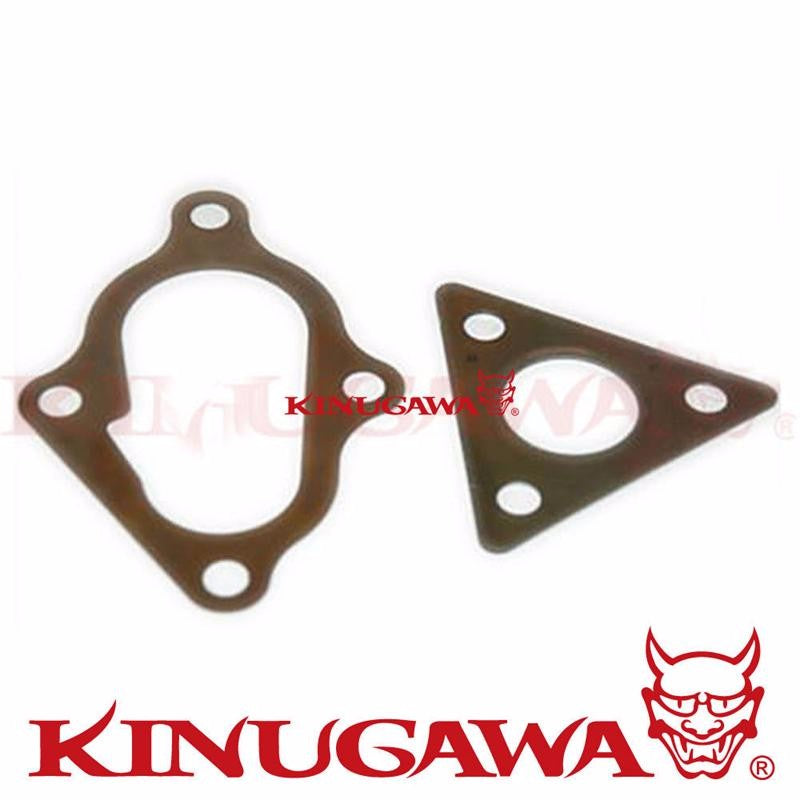

- 1 x turbine inlet/outlet seal set
- 1 x Return Oil Pipeline

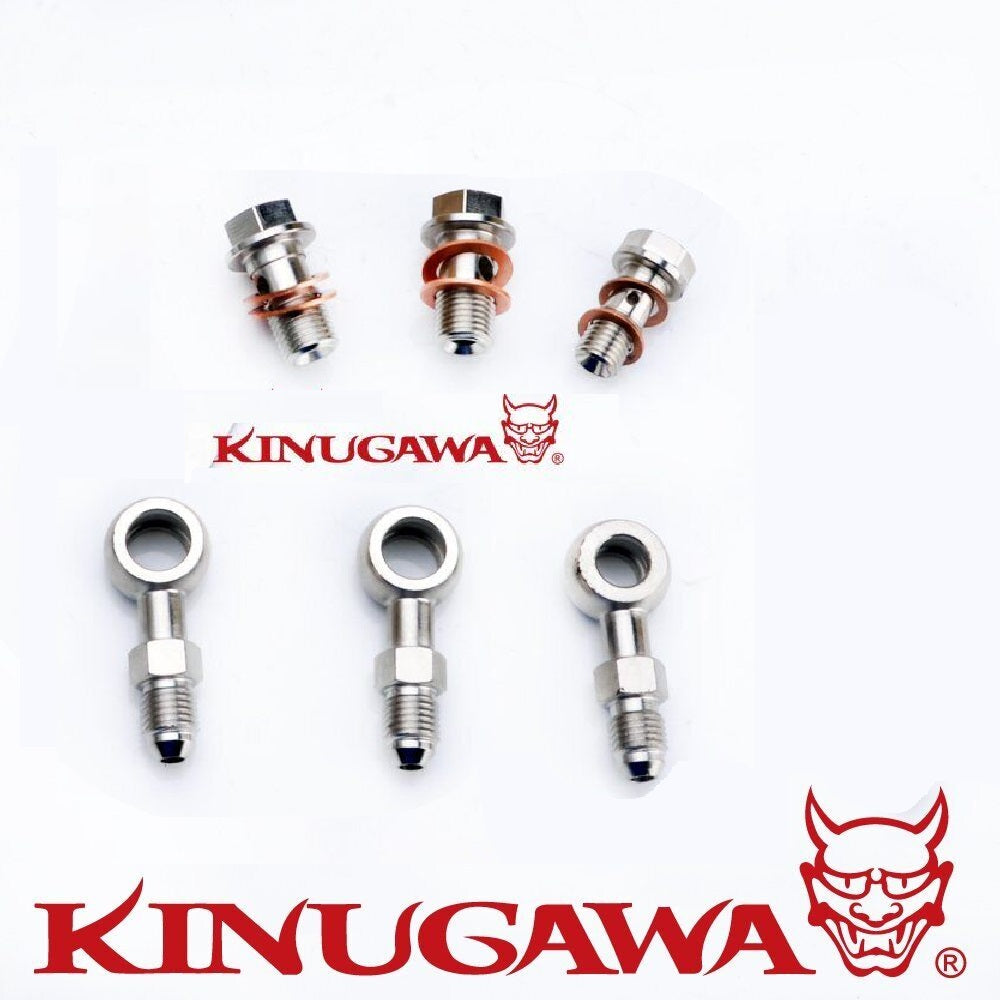

- 1 x oil supply bolt for turbo side
- 2 x water coolant for turbo side
-1x Balance report with Anti-Counterfeit Tag

- Kinugawa Turbo Systems

- One year
