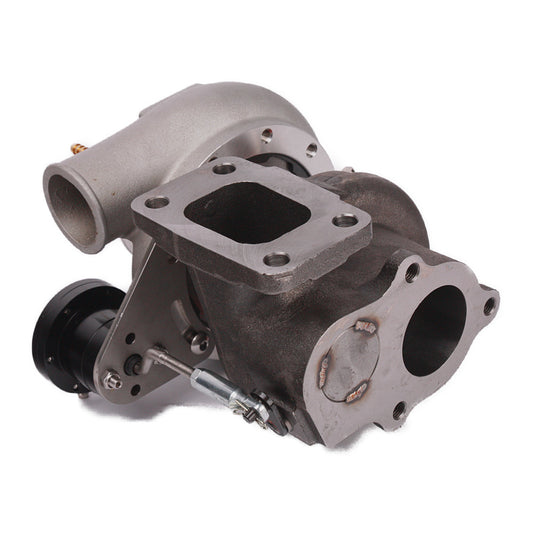

Collection: TD42 Nissan Patrol 3" V-Band 6cm Low Mount Oil-Cooled Turbo

High-Performance Turbochargers for Nissan Patrol TD42 Diesel Engines

Premium bolt-on turbo upgrades engineered specifically for Nissan Patrol TD42 diesel engines with low-mount oil-cooled configurations. These 3" V-band outlet turbos deliver proven performance across 200-330 horsepower applications.

Technical Specifications

• Application: Nissan Patrol TD42 diesel (GR, GQ Y60, GU Y61 chassis)
• Turbine Housing: 6cm A/R T3 inlet with 3" V-band outlet
• Mounting: Low mount oil-cooled configuration

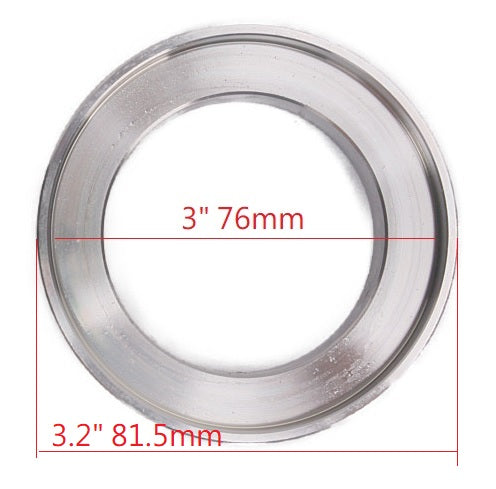

• Outlet Size: 3" V-band or DTS 3-bolt flange options
• Cooling: Oil-cooled bearing system

Available Turbo Models by Power Range

• TD05H-16G: 200-250 HP - Entry-level performance upgrade
• TD05H-18G: 200-280 HP - Most popular street/track configuration
• TD05H-20G: 250-300 HP - Recommended for 250+ HP builds
• TD05H-16K: 280-330 HP - High-flow option for maximum power

Key Features

• Anti-surge compressor housing options for improved response and reliability
• Billet and cast compressor wheel configurations
• Multiple blade designs (6+6, 7+7, 11+0) for different power characteristics
• Direct bolt-on fitment for TD42 low-mount manifolds
• Proven performance in street, off-road, and competition applications

Compatibility

These turbos are designed for Nissan Patrol TD42 engines with:

• Low-mount exhaust manifold configuration
• Oil-cooled turbo system (non-water-cooled)
• 3" V-band or DTS 3-bolt downpipe connection
• T3 turbine inlet flange

Professional installation recommended. Tuning required to achieve optimal performance and reliability.
