Think of a turbine map as a report card for the "hot side" of the turbocharger—the part that gets spun by your engine's exhaust gases. This map tells us how well the turbine can handle that exhaust gas and turn it into the spinning power needed to drive the compressor (the "cold side" that pushes fresh air into your engine).
A good match means maximum power and efficiency, while a bad match can choke your engine and actually rob you of horsepower, no matter how much boost you're running!

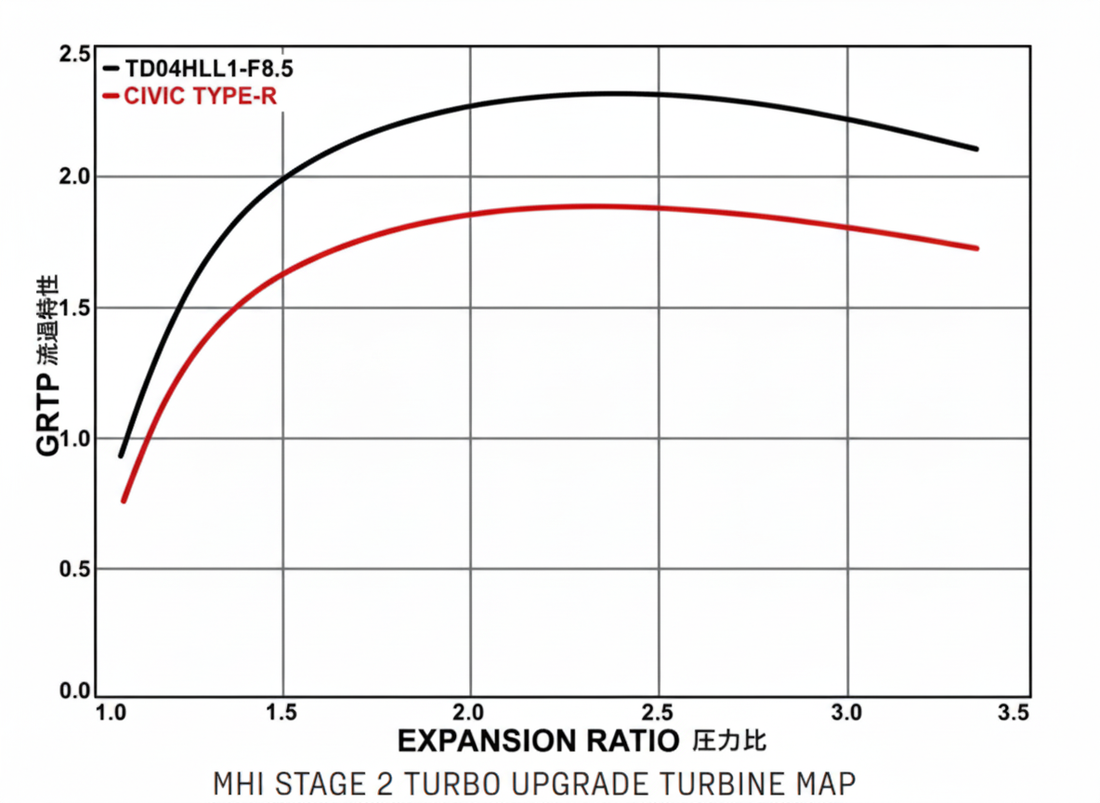

Here's an example of a turbine map. It looks a little complex at first, but it's actually pretty simple once you know what the different parts mean. Let's break it down.
Reading the Blueprint
A turbine map shows the relationship between how much exhaust is flowing through the turbine and how much pressure is driving it.
TD04HLL1-F8.5
CIVIC TYPE-R
The Horizontal Axis (X-Axis): Expansion Ratio
- What it is: This is a fancy term for how hard the exhaust gas is pushing to get through the turbine. It's calculated by dividing the pressure of the exhaust going into the turbine by the pressure of the exhaust coming out of it.
- Think of it like this: Imagine blowing air through a pinwheel. The Expansion Ratio is like the pressure of your breath. A higher number means you're blowing harder to make the pinwheel spin faster. On a car, a higher expansion ratio means the exhaust is working harder to spin the turbine wheel.
The Vertical Axis (Y-Axis): Corrected Flow (GRTP)
- What it is: This axis shows the mass flow rate—basically, how much exhaust gas the turbine can swallow at a given pressure. The units might look complicated (like GRTP or Corrected Flow lb/min), but the concept is simple.
- Think of it like this: This is the "breathing capacity" of the hot side of your turbo. A higher number on this axis means more exhaust is flowing through, which is what you need to support higher horsepower at higher RPMs.
The Curve: The Performance Line
What it shows: The curve on the map shows you how much flow you get for a certain amount of push. As you follow the line from left to right, you can see that as the expansion ratio (push) increases, the flow rate (breathing) also increases... up to a point!
The "Choke Point": Notice how the curve starts to flatten out at the top right? This is super important. It's called the
choke point. It's like trying to drink a giant milkshake through a tiny straw—at some point, no matter how hard you suck (increase the pressure), you just can't get any more milkshake to flow through. When a turbine chokes, it can't flow any more exhaust gas. This creates a massive traffic jam of backpressure in your exhaust manifold, which robs your engine of power. This is known as "pumping loss" and it's a real performance killer.
Why This Map Is Your Best Friend
So, how do you use this? The goal is to pick a turbo with a turbine map that matches your engine's needs.
For Quick Response: A smaller turbine (often with a smaller A/R Ratio, which is a measure of the housing's size) will "spool up" faster because it chokes at a lower flow rate. This gives you great response at low RPMs but can limit your top-end power.
For Top-End Power: A larger turbine (with a larger A/R Ratio) can flow a lot more exhaust gas before it chokes. This is perfect for a race car that lives at high RPMs but might feel "laggy" on the street.
That's why Kinugawa Turbo Systems offer the same turbo with different turbine housing sizes, espcially in Subaru WRX/STi modes — so you can fine-tune the performance and get that perfect balance for your specific car and driving style!
