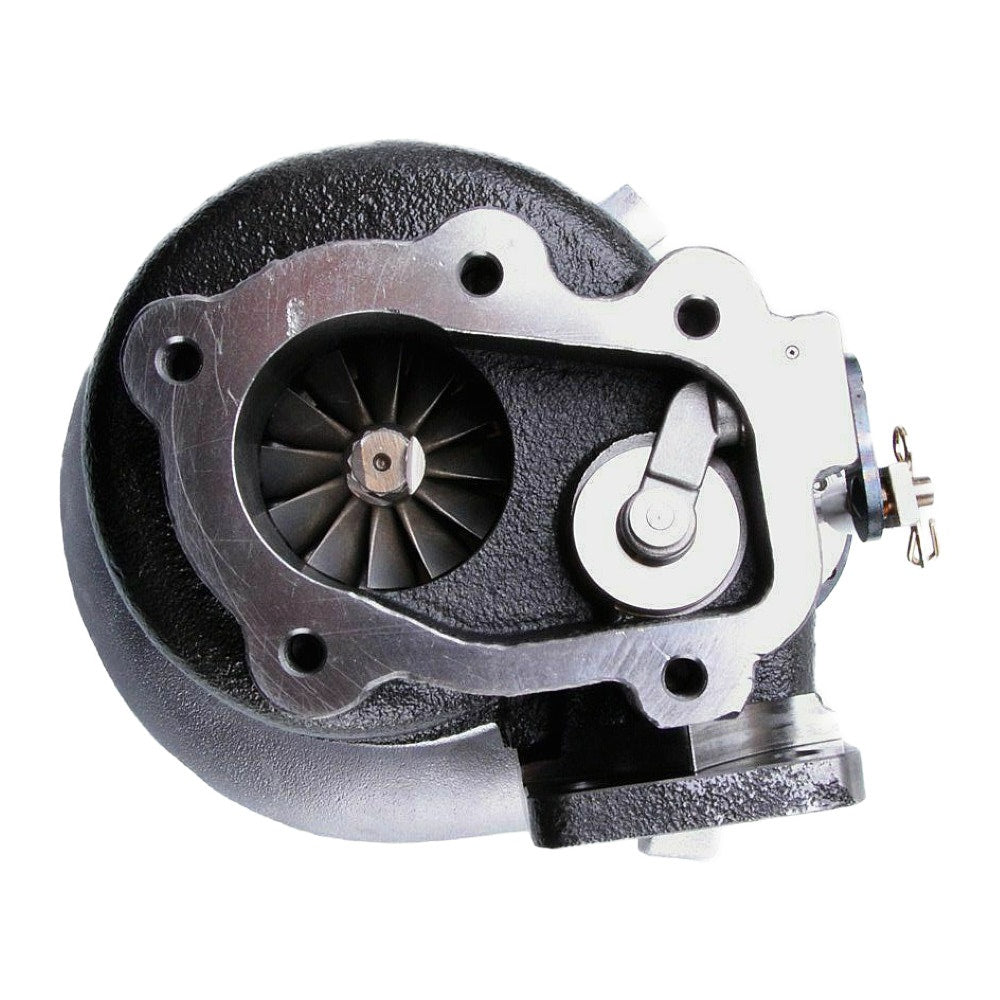

Kinugawa Turbo TD05H-18G for Nissan CA18DET SR20DET SILVIA S13 S14 S15 Bolt-On

Sale price $899.00 Regular price $899.00



Application
- For Nissan CA18DET Silvia S13 180SX/ 200SX (Europe)/ 240SX (North America)
- For Nissan SR20DET Silvia S13 S14 S15/ 200SX (AUS/NZ)/ 240SX (North America)
- Horsepower Range: 300~400HP
Replace the turbo
- Replace and refresh the stock for the Garrett T28 TURBO directly.

CHRA Size
TD05H-18G

Wheels Spec
- Compressor wheels: 50.3/68 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56/49 mm
Feature: The STS (Superior Turbine Strike) turbine wheel. It will take a shorter time (decrease 5-8%) to build a boost and, at higher RPM, prevent choking easier because it's less inertia and restrictive than an 11 or 12 blades turbine.
Turbines Housing AR
- 8cm ^ 2 T25 Inlet

Bearing Type
- Journal Bearing with 360-degree performance thrust bearing kit

Cooling Type
- oil and water cooling

Actuator Pressure
-1.0 bar / 14.7 psi-drive will go with Turbo.
-0.5 bar, 0.8 bar, 1 bar, 1.2 bar, 1.5 bar, available 1.7 bar and 2.0 bar, Please add a comment about your order if you need to change it.

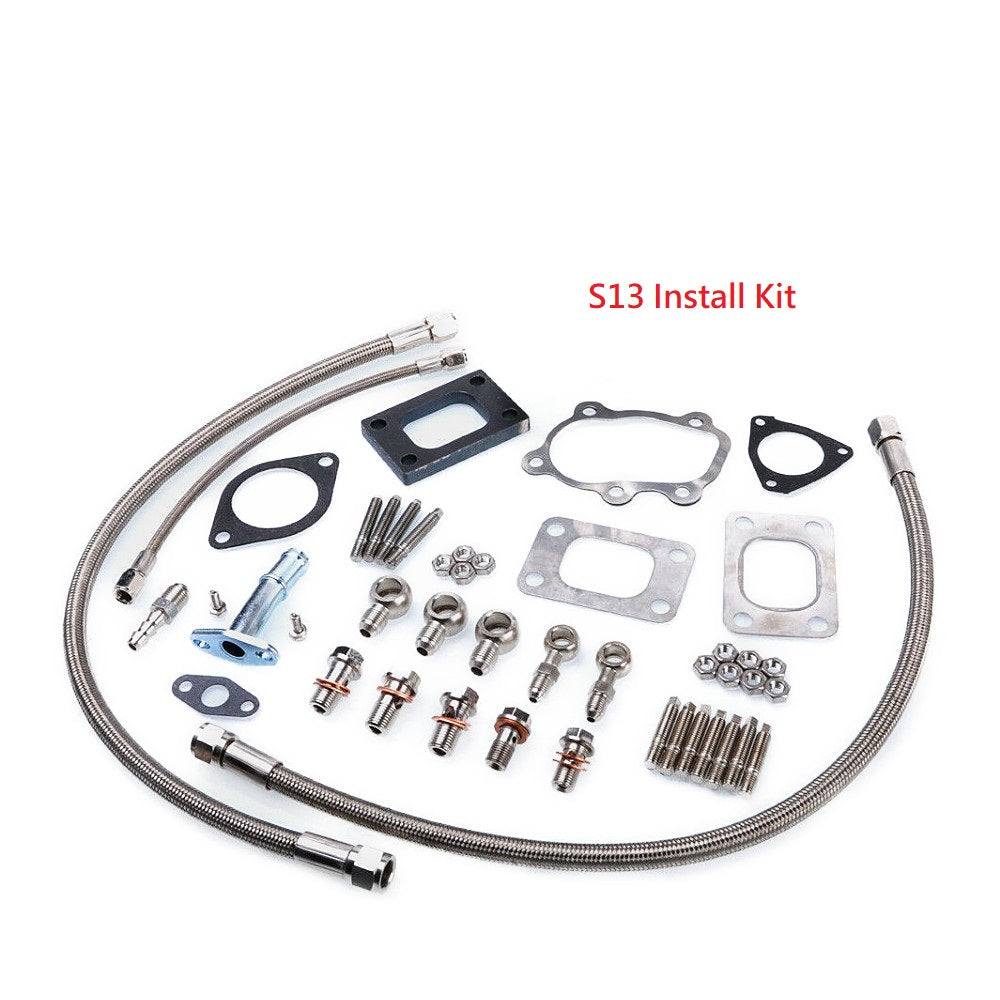

The set includes
- 1 x turbine inlet/outlet gasket
- 1 x compressor input / Output gasket
- 1 x Return gasket
- 1 x Oil supply set
- 1 x Return Oil Pipeline
- 1 x water supply kit for water (6AN hose)
- 8 x cloves and nut set
- 1 x Turbocharger
- 1 x Balance Report with anti-counterfeit tag

Situation
Brand New

Provider
Kinugawa Turbo Systems

Guarantee
One year


Kinugawa STS Superior Turbine Strike Technology Evolution
Kinugawa Turbo Systems Billet Compressor Wheel and 360 Dynamic Thrust Bearing
Kinugawa Turbo Systems Compressor Map TD02-TD08
Kinugawa Turbo Systems SCHENK Balancer
Kinugawa Turbo Systems Anti-Counterfeit Tag
`
