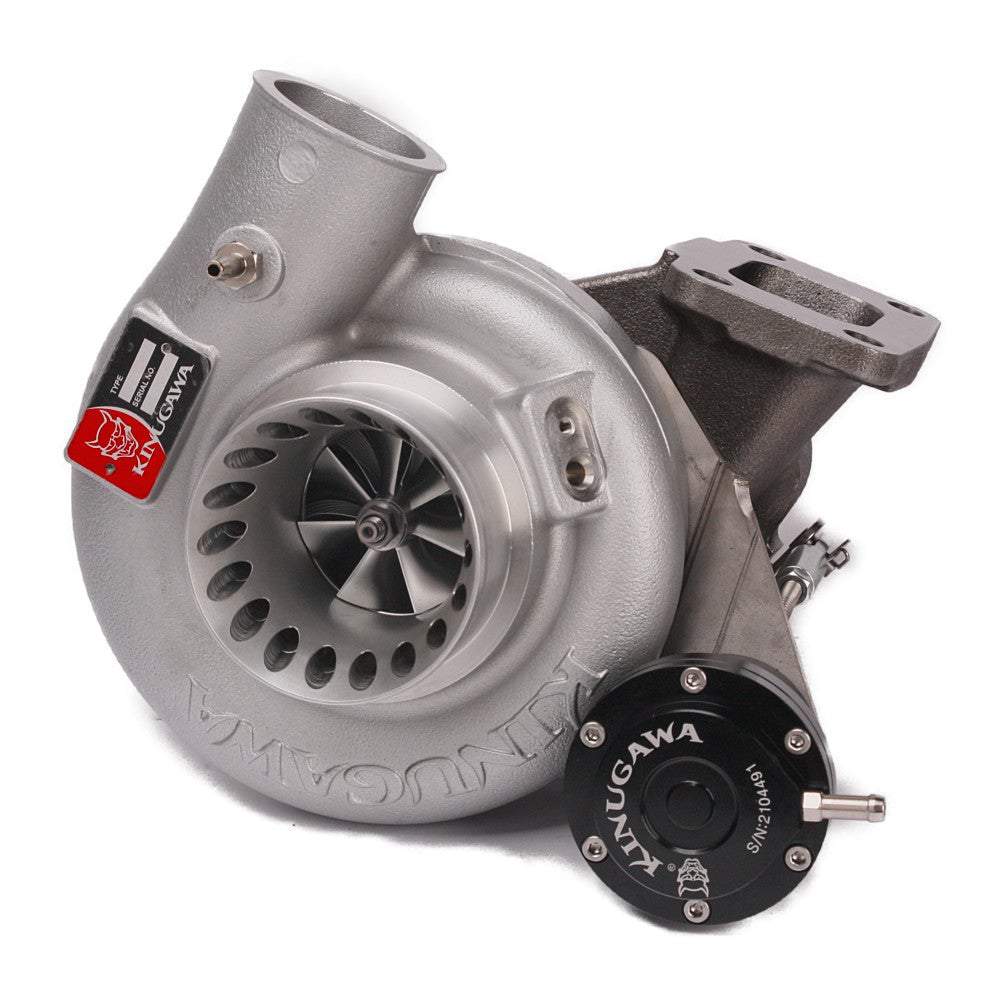

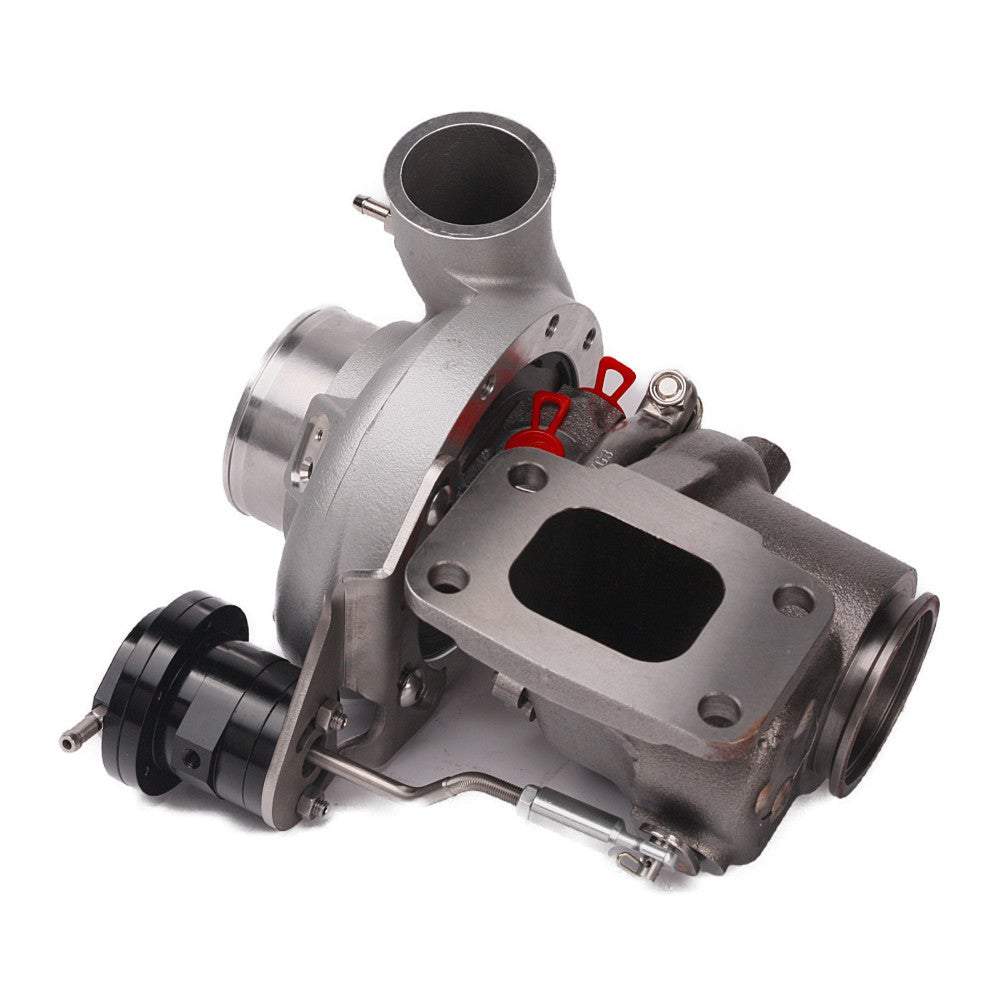

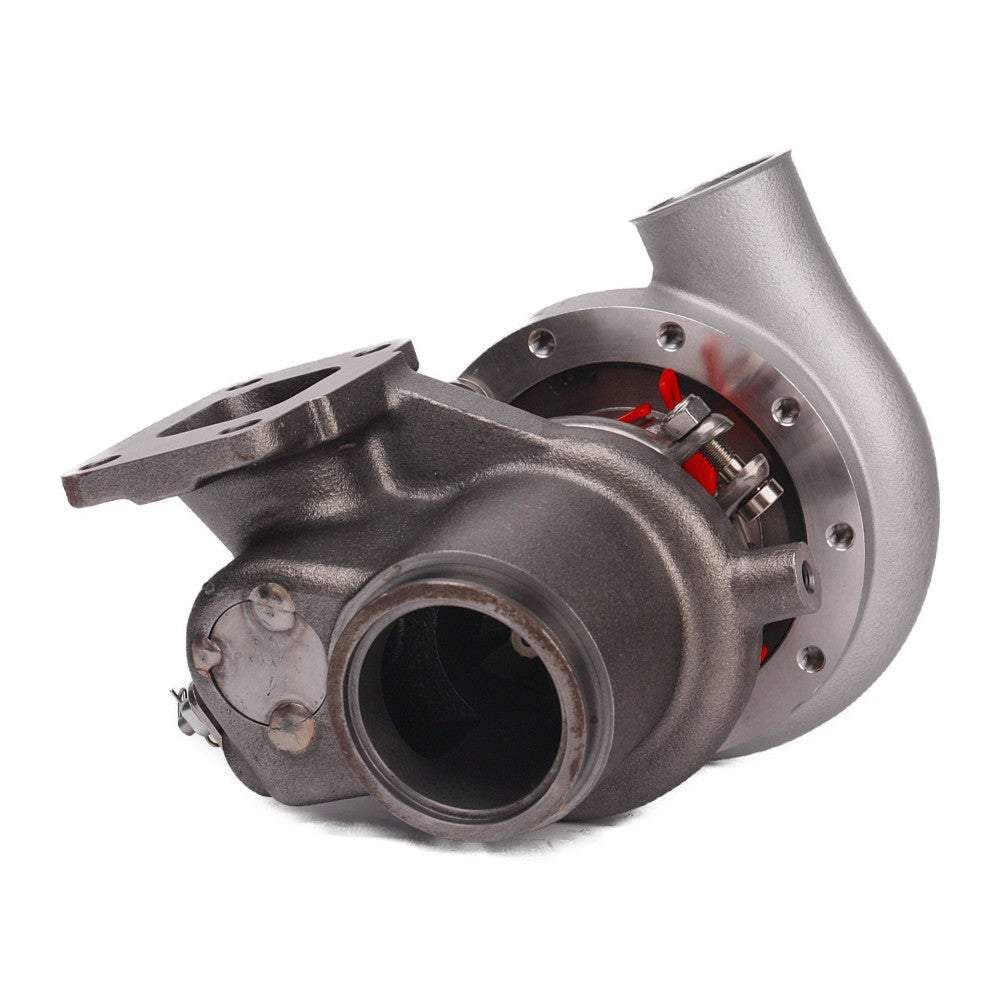

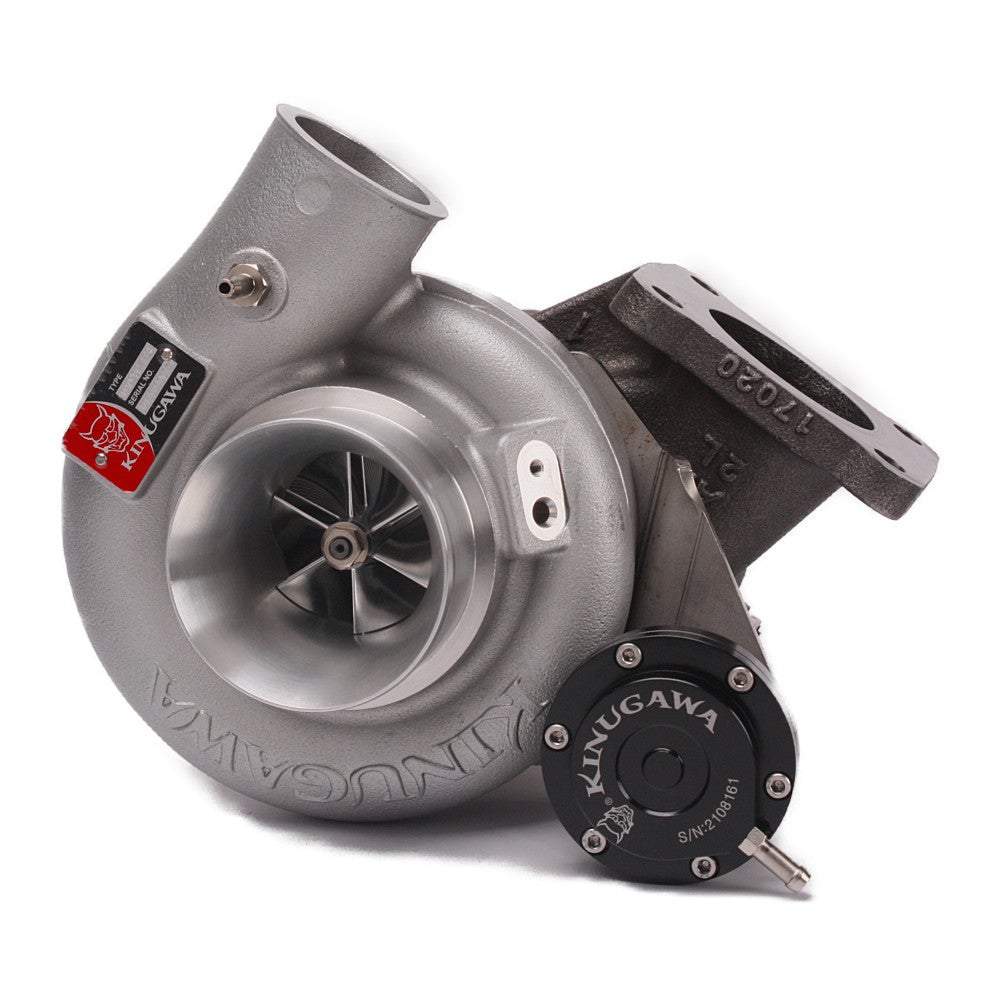

Kinugawa Turbo Ball Bearing 3" TD05H-18G 6cm T3 3" V-Band for Toyota Land Cruiser 1HZ 75 79 80 100 105

Kinugawa Turbo Ball Bearing 3" TD05H-18G 6cm T3 3" V-Band for Toyota Land Cruiser 1HZ 75 79 80 100 105

Regular price $1,199.00USD
Regular price $1,199.00USD Sale price $1,199.00USD
Sale Sold out
Shipping calculated at checkout.

Crank Horsepower: 200-250HP (18G Trim 55) for Diesel

Choose Driving Styles By Following Options

Do you prioritize quick spool-up and low-end torque for street driving, or are you seeking maximum power for track days? Here are the 3 factors to tune prioritized.
kinugawa turbo how to fine tune spool time 3 factors
  • Priority: Highest
  • Impact on Spool Time: The A/R ratio directly influences the exhaust gas velocity and energy reaching the turbine wheel. A smaller A/R ratio generally leads to faster spool-up due to increased exhaust gas velocity, but it can also limit top-end power. A larger A/R ratio results in slower spool-up but can support higher power levels at higher RPMs.
2. Turbine Wheel Design:
  • Priority: High
  • Impact on Spool Time: The size and design of the turbine wheel affect its inertia and how efficiently it extracts energy from the exhaust gases. A smaller and lighter turbine wheel will typically spool up faster, but it might have lower peak power potential. The blade design also plays a role, with some designs optimized for faster spool-up.
3. Compressor Wheel Design:
  • Priority: Moderate
  • Impact on Spool Time: While the compressor wheel itself doesn't directly impact spool time, its design and size influence the overall balance and efficiency of the turbocharger. A larger compressor wheel requires more energy to spin, which can slightly increase spool time. However, a well-matched compressor wheel can improve overall efficiency and reduce backpressure, indirectly aiding spool-up.
Compressor Housing
Compressor Wheel
Turbine Wheel
Application
- Kinugawa TOYOTA 1HZ 4.2L Diesel 250HP Limited
- 75/78/79/80/100 series with 6cm T3 V-Band Turbine housing, You need an exhaust manifold with a T3 flange to install this turbocharger on a 1HZ Engine.
- Feature: The A/R 6cm turbine housing provides the ultimate spool time than the CT26 17201-17010 and 17201-17040 turbo with A/R 8cm.

The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.

CHRA
- TD05H-18G

Wheels Spec
- Compressor wheel: 50.3 / 68.0 mm (The 6+6 blades are better for low-end torque, and the 11+0 type is for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (STS 9 Blades Click here to learn more about STS technology.)

Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Outlet: 2"

Turbines Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: 2.5" to 3" V-Band
- Wastegate: internal gated

Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Kinugawa Turbo STS Advanced Ball Bearing Technology
Cooling Type
- Oil and water cooling

Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

The Set Includes
- 1 x Turbocharger
- 1 x Oil supply set
- 1 x Water coolant and return set
- 1 x T3 gasket

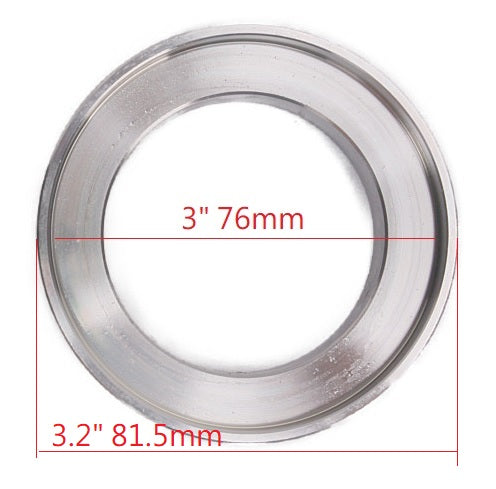

- 1 x V-Clamp and V-Band Socket Adapter Kit (3" ring #417-03009-012)
Kinugawa Turbo Toyota 1HZ Install kit instruction
Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany

Provider
-Kinugawa Turbo Systems

Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
