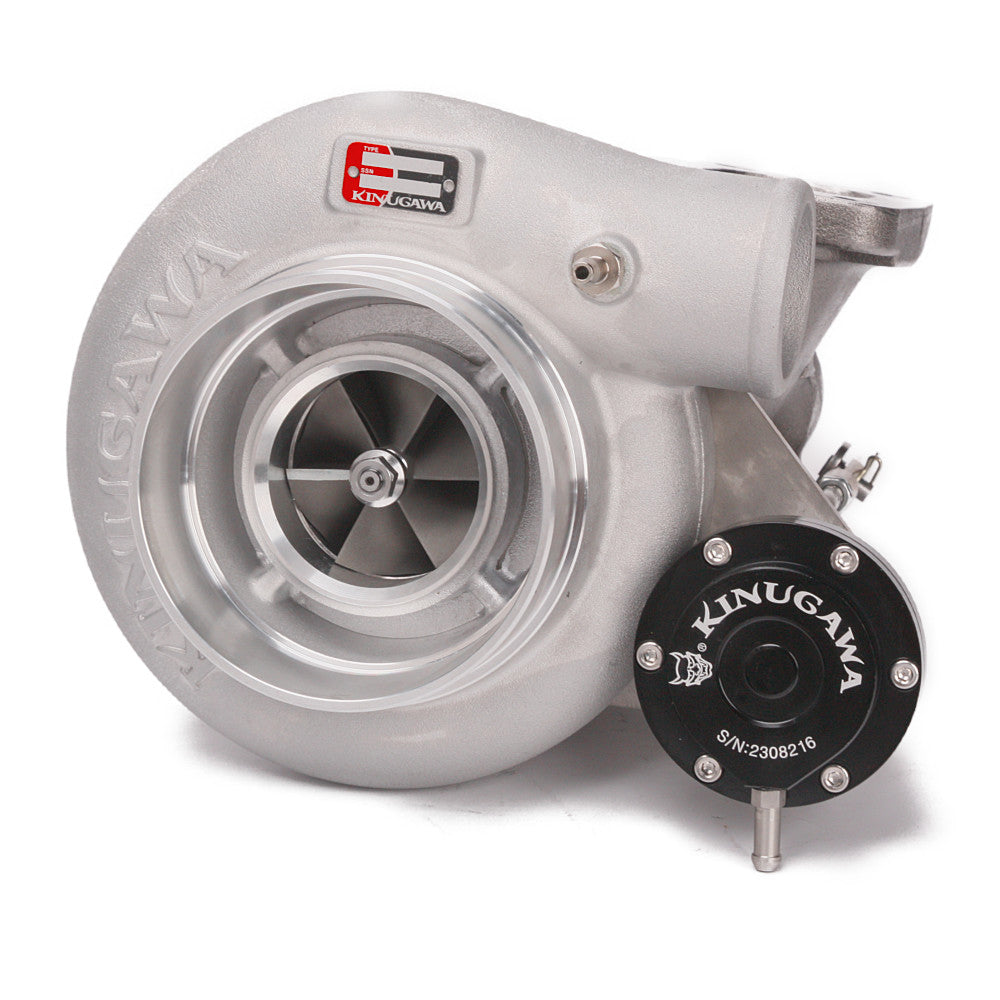

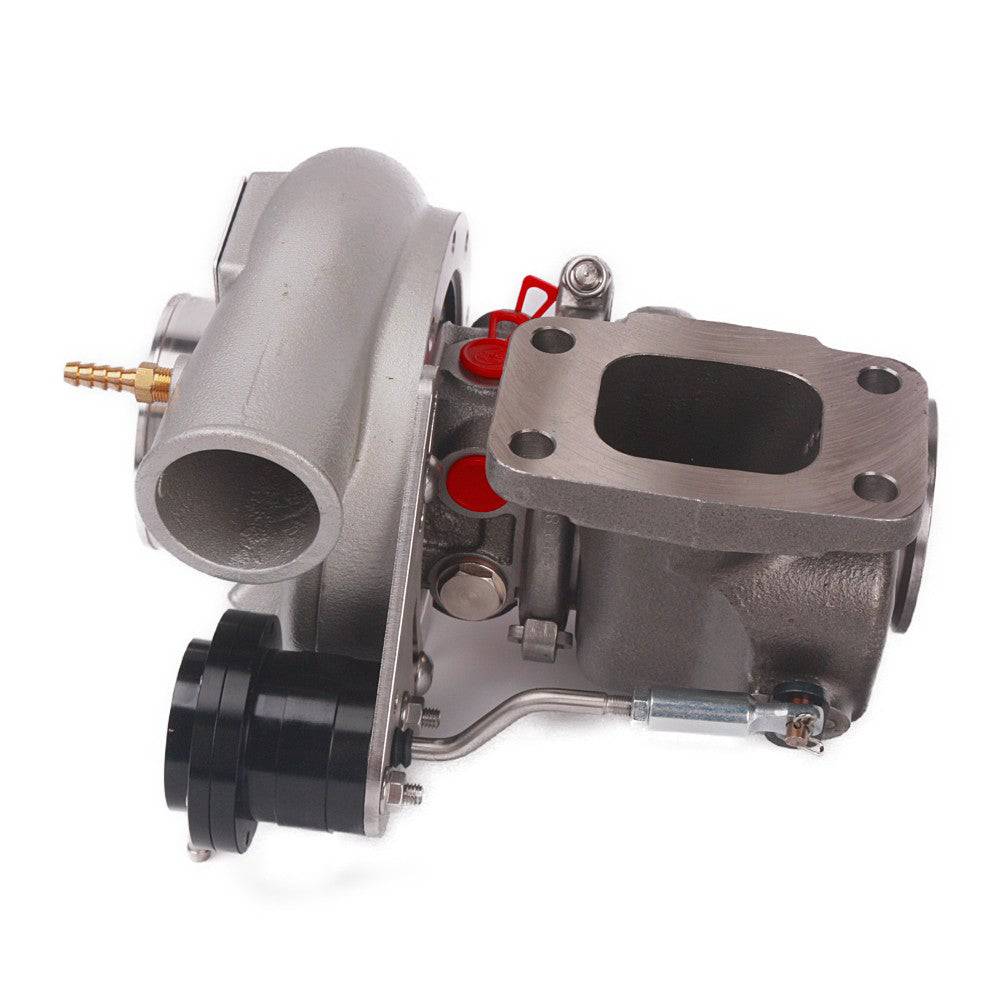

Kinugawa Turbo 4" Anti-Surge TD05H-20G 6cm 2.5" V-Band for Nissan Patrol Safari TD42 Low Mount Water-Cooled

Kinugawa Turbo 4" Anti-Surge TD05H-20G 6cm 2.5" V-Band for Nissan Patrol Safari TD42 Low Mount Water-Cooled

Regular price $899.00USD
Regular price $899.00USD Sale price $899.00USD
Sale Sold out
Shipping calculated at checkout.

Crank Horsepower: 250-300HP (20G Trim 59) for Diesel

Model
Compressor Wheel
Turbine Wheel

Consider Your Driving Style

Do you prioritize quick spool-up and low-end torque for street driving, or are you seeking maximum power for track days? Here are the 3 factors to tune prioritized.
kinugawa turbo how to fine tune spool time 3 factors
  • Priority: Highest
  • Impact on Spool Time: The A/R ratio directly influences the exhaust gas velocity and energy reaching the turbine wheel. A smaller A/R ratio generally leads to faster spool-up due to increased exhaust gas velocity, but it can also limit top-end power. A larger A/R ratio results in slower spool-up but can support higher power levels at higher RPMs.
2. Turbine Wheel Design:
  • Priority: High
  • Impact on Spool Time: The size and design of the turbine wheel affect its inertia and how efficiently it extracts energy from the exhaust gases. A smaller and lighter turbine wheel will typically spool up faster, but it might have lower peak power potential. The blade design also plays a role, with some designs optimized for faster spool-up.
3. Compressor Wheel Design:
  • Priority: Moderate
  • Impact on Spool Time: While the compressor wheel itself doesn't directly impact spool time, its design and size influence the overall balance and efficiency of the turbocharger. A larger compressor wheel requires more energy to spin, which can slightly increase spool time. However, a well-matched compressor wheel can improve overall efficiency and reduce backpressure, indirectly aiding spool-up.
Application
- Nissan TD42 Patrol Safari GR GQ  Y60, GU Y61 TD42T engine

- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.

CHRA Size
- TD05H-18G

Wheels Spec
- Compactor wheel: 52.3 / 68.0 mm (The 6+6 blades are better for low-end torque, and the 11+0 type is for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (3 types offered: STD, STS, STS55. Click here to learn more about STS technology.)

Kinugawa STS Superior Turbine Strike Technology Evolution
Compressor Housing
- Nozzle area: AR.60
- Inlet: 4" anti-surge
- Outlet: 2"

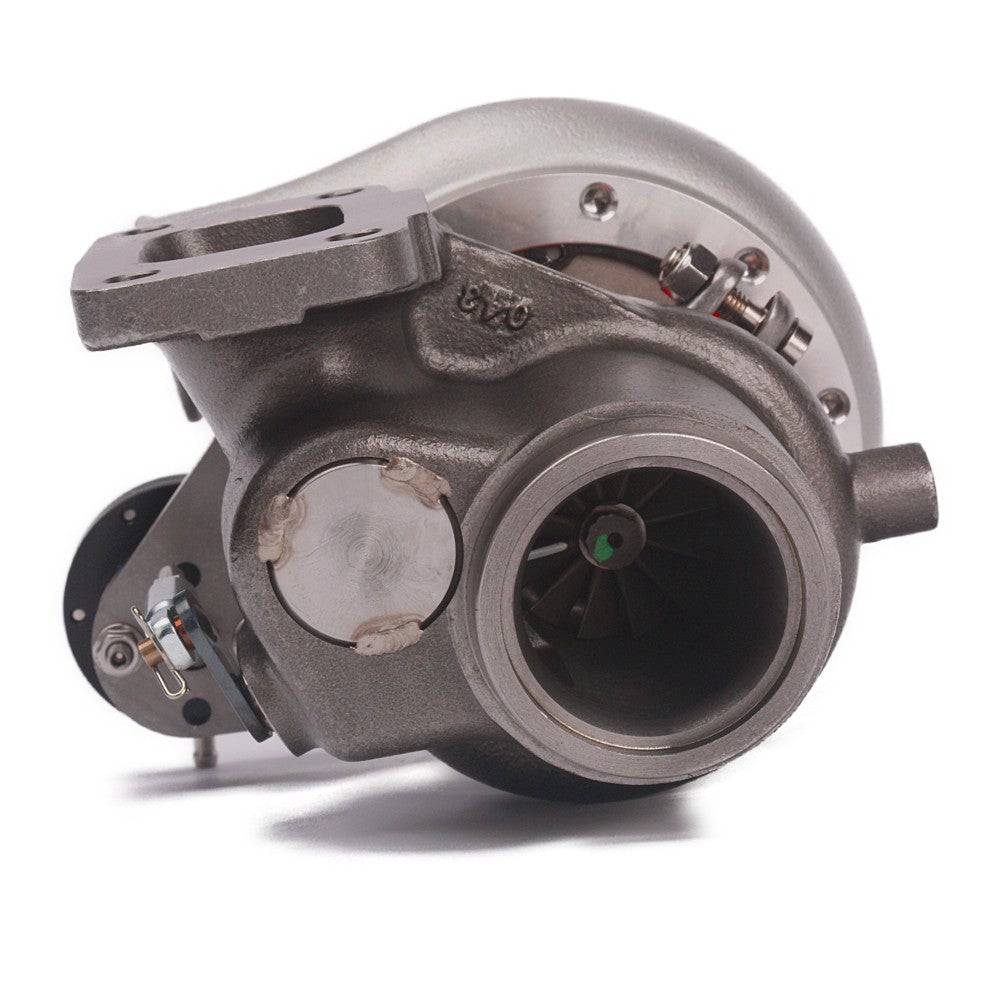

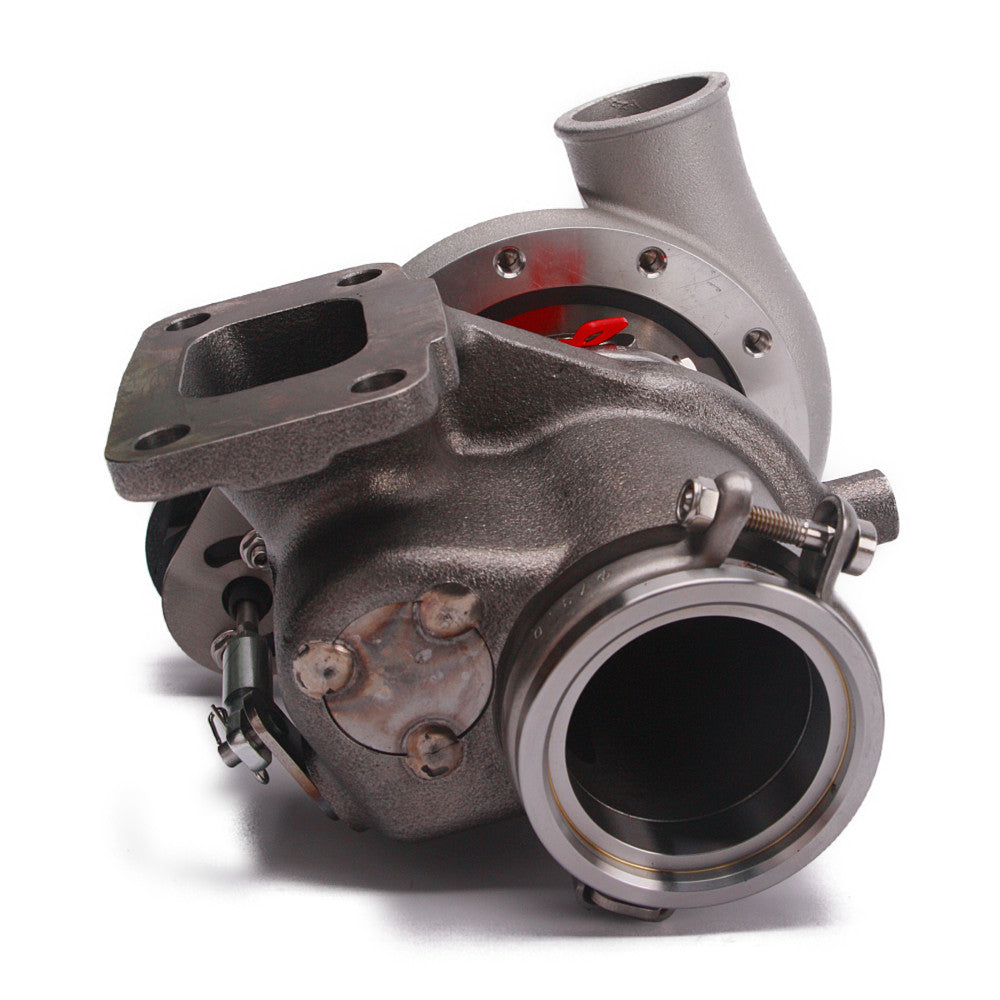

Turbine Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: 2.5" v-band
- Wastegate: internal gated

Bearing Type
- Journal bearing system with 360-degree thrust bearing kit

Cooling Type
- Oil and water cooling

Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

The set includes
- 1 x Oil supply set
- 1 x Water coolant and return set
- 1 x T3 gasket

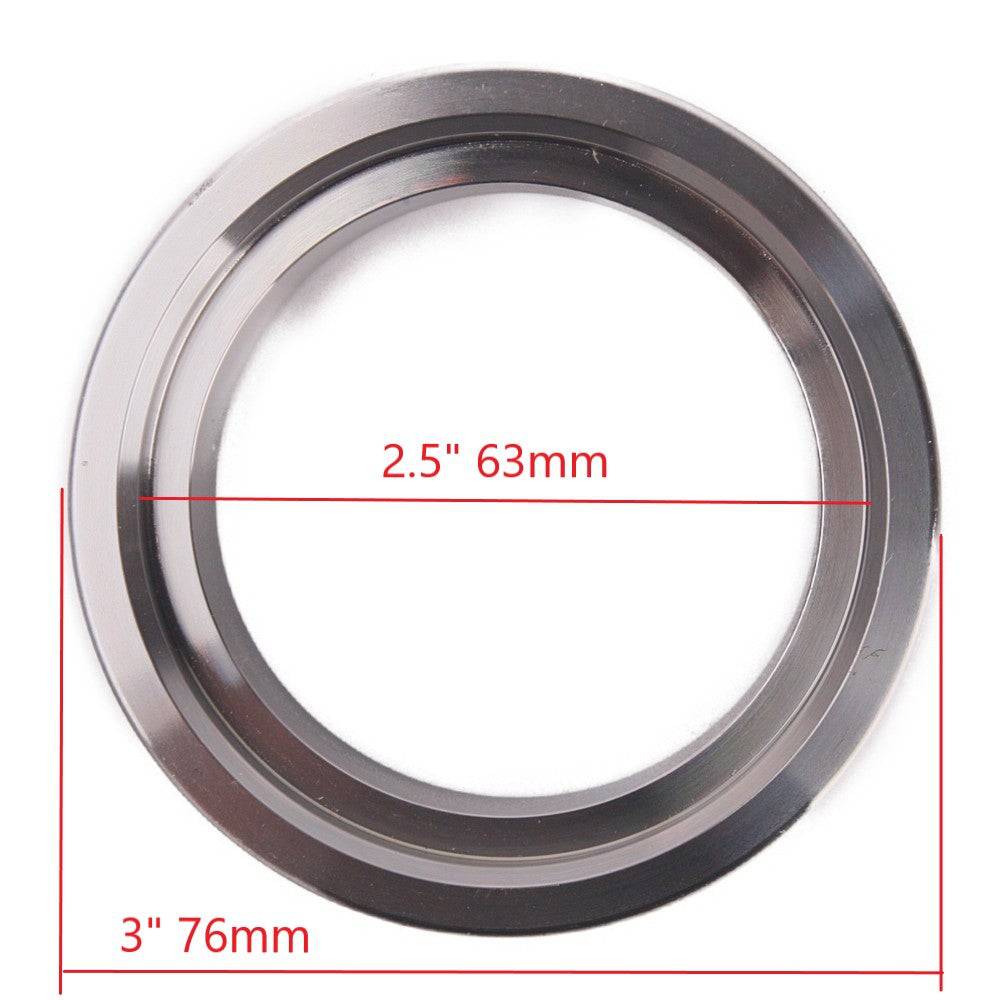

- 1 x V-Clamp and V-Band Socket Adapter Kit
- 1 x Turbocharger

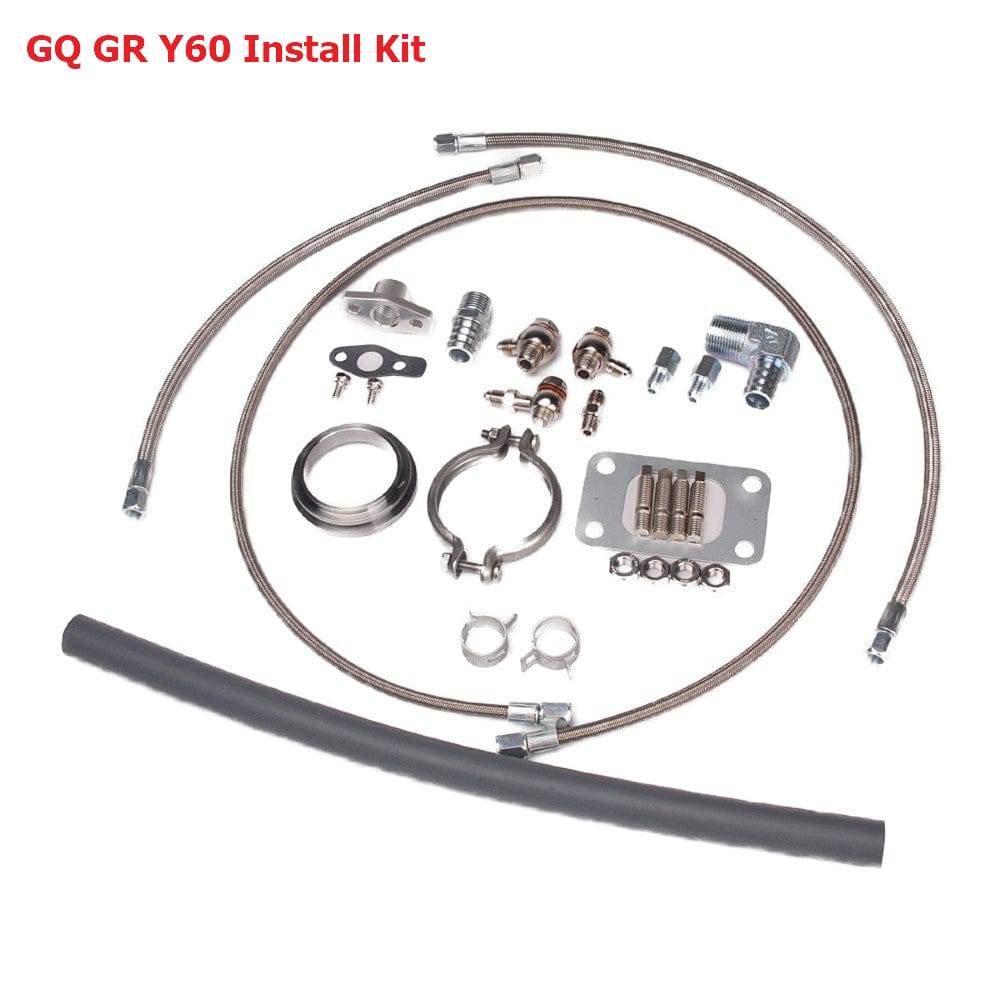

GR GQ Y60 Install Kit Instruction

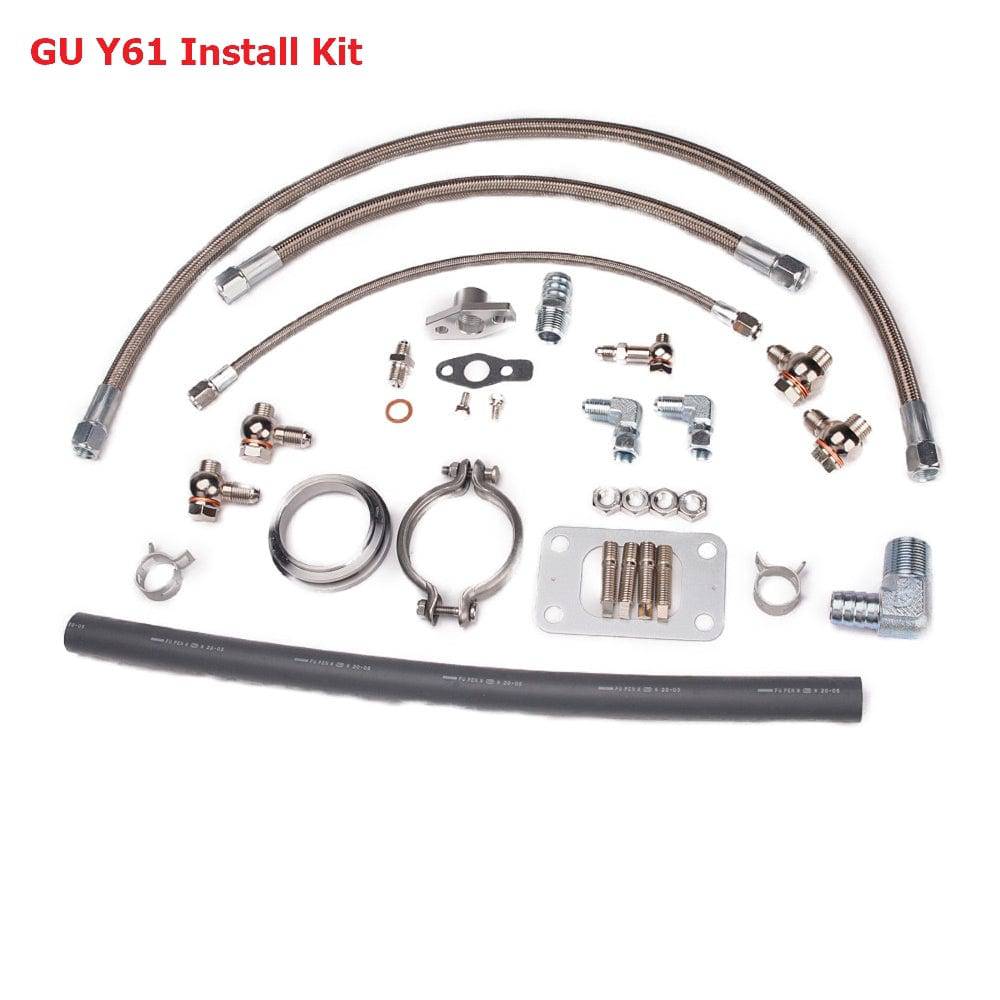

GU Y61 Install Kit Instruction
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany

Provider
- Kinugawa Turbo System

Warranty
Kinugawa 1-Year Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
