- Fits for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T engine
- Fits for Radius Fabrications TD42 High Mount Turbo Manifold comes with a
T3 turbo flange.
- Horsepower Range: 160-200HP
- Compressor wheel: 48.3 / 68.0 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56 / 49.2 mm
Feature: The STS (Superior Turbine Strike) turbine wheel. It will take a shorter time (decrease 5-8%) to build a boost and, at higher RPM, prevent choking easier because it's less inertia and restrictive than an 11 or 12 blades turbine.

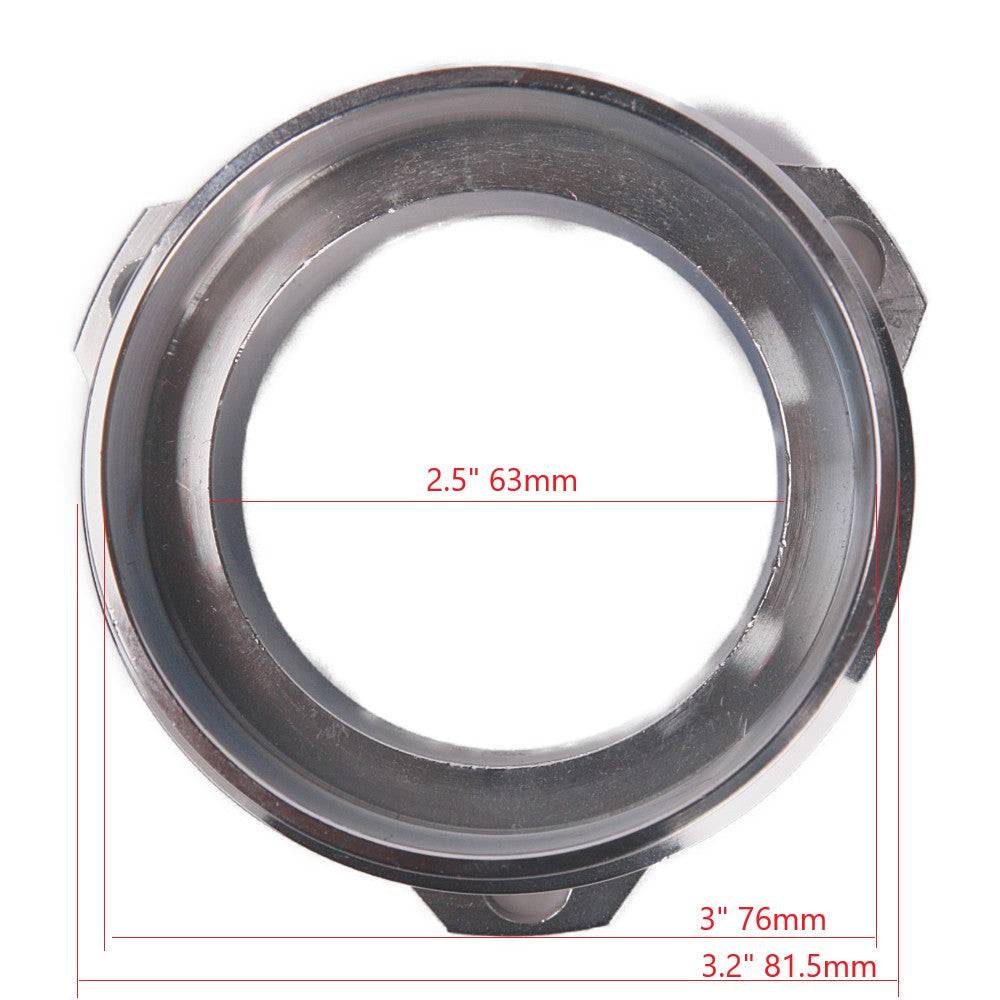

- inlet: 3" Anti-surge

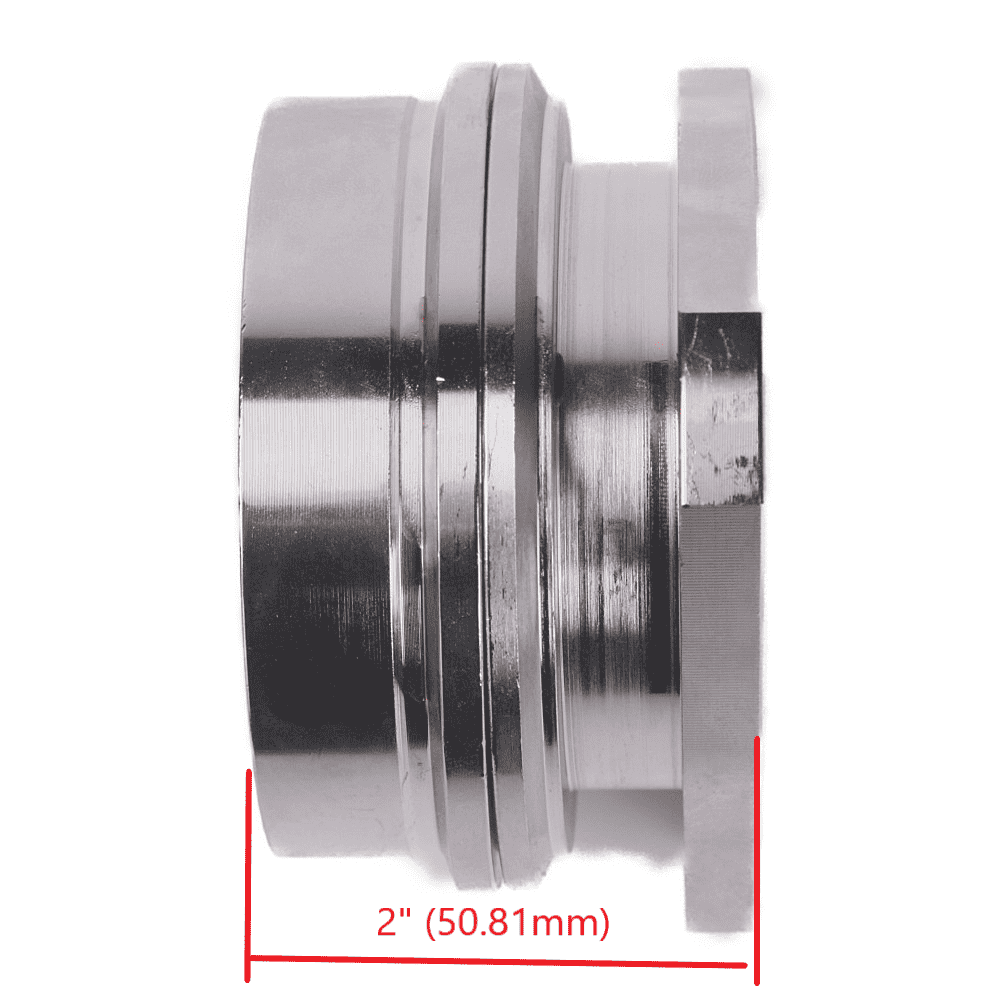

- outlet: 2"

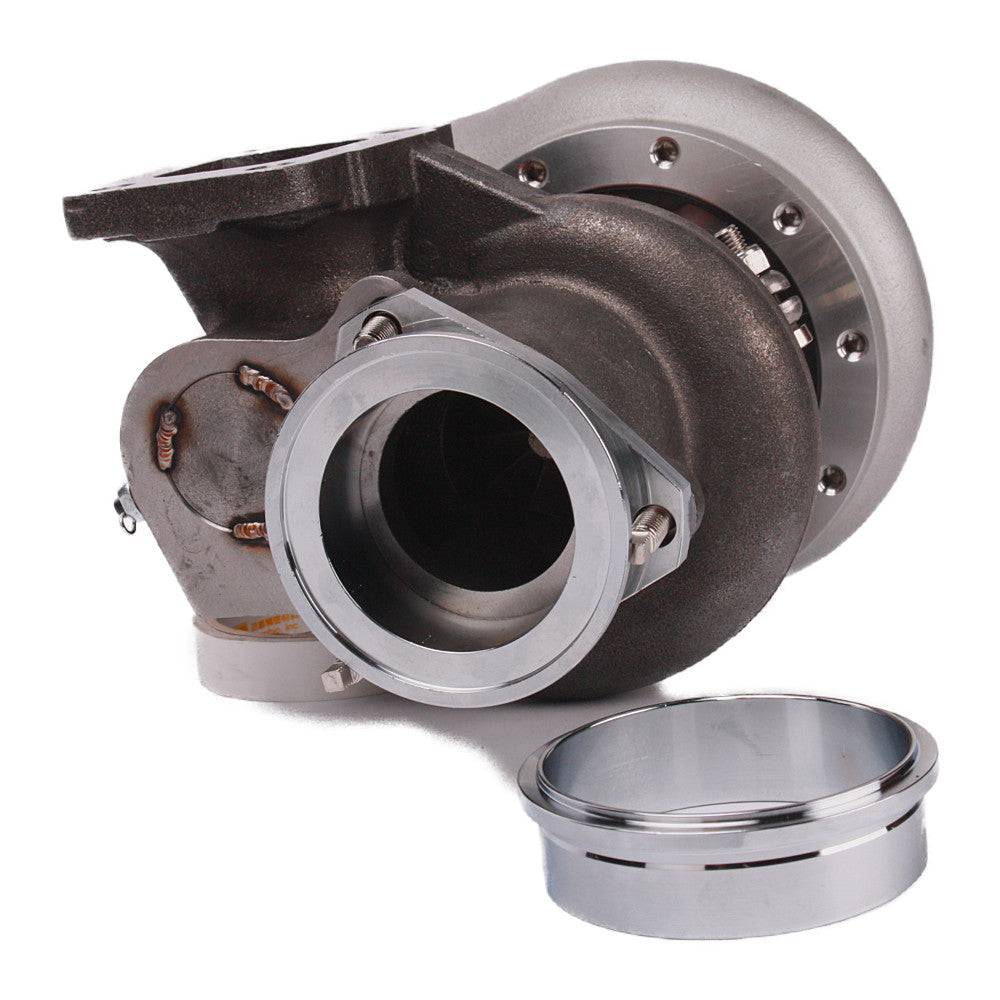

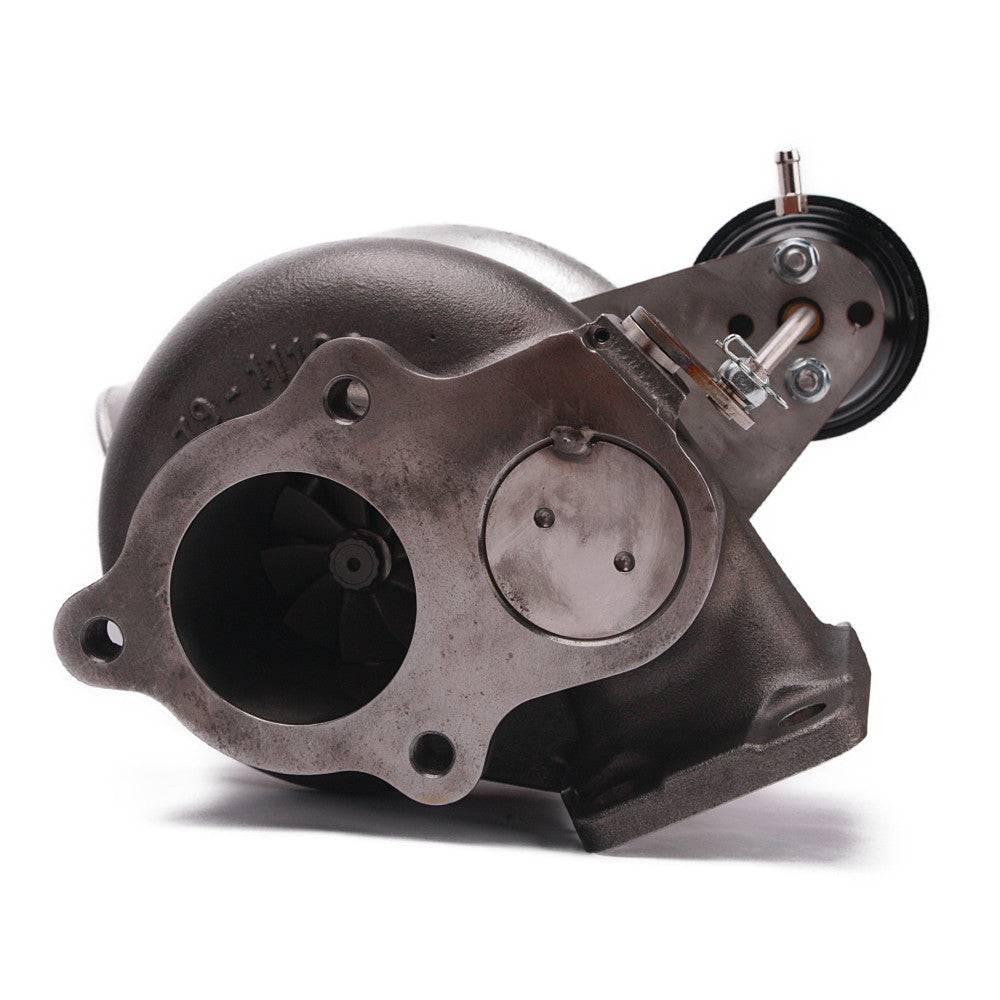

- T3 inlet with 3" V-band outlet AR 6cm
- Journal Bearing with a performance 360-degree thrust bearing kit.
- Oil and Water Cooling System
- 1.0 bar / 14.7 psi-drive is default
- 0.5bar, 0.8 bar, 1 bar, 1.2 bar, 1.5 bar, available 1.7 bar, and 2.0 bar, Please add a comment about your order if you need to change it.

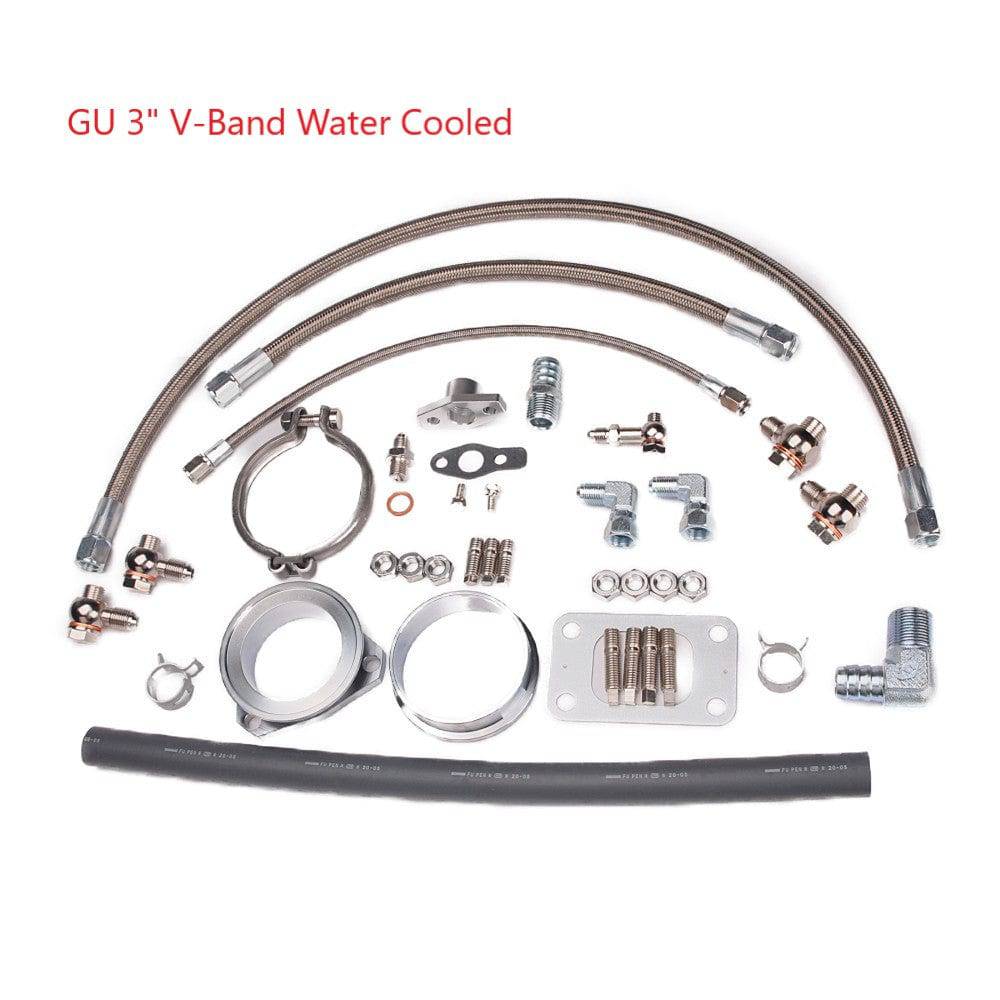

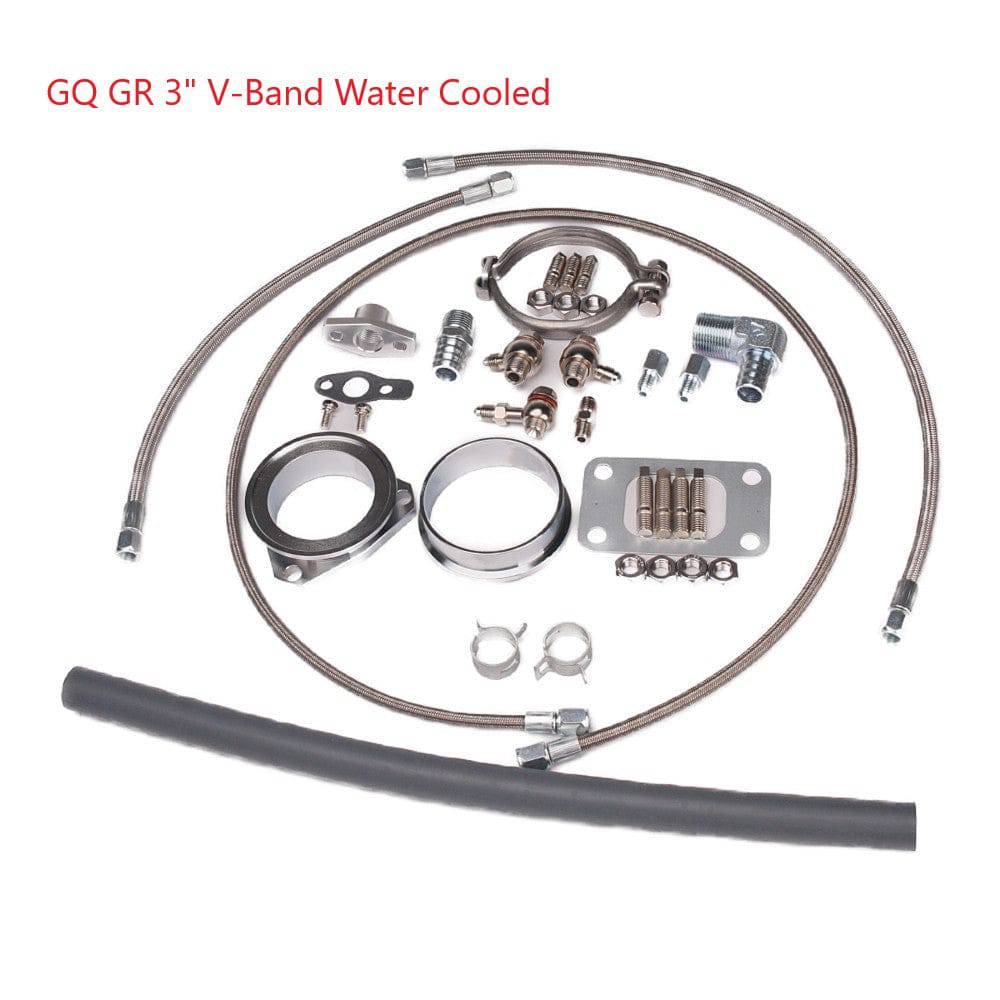

The set includes
- 1 x Oil supply set
- 1 x water coolant and return set
- 1 x T3 gasket
- 1 x V-Clamp and V-Band Socket Adapter Kit
- 1 x Turbocharger
- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag
- Brand New
- Full balance from Schenk MBRS110 Germany
- Kinugawa Turbo System
- One year
