Kinugawa Turbo TD04HL-19T 6cm for SAAB 9-3 2.0T B207L B207R Aero

Kinugawa Turbo TD04HL-19T 6cm for SAAB 9-3 2.0T B207L B207R Aero

Regular price $839.00USD
Regular price $839.00USD Sale price $839.00USD
Sale Sold out
Shipping calculated at checkout.

Crank Horsepower: 300-350HP (19T 46/56 mm Trim 63) for Gasoline

Compressor Wheel
Turbine Wheel
Valve Type

Consider Your Driving Style

Do you prioritize quick spool-up and low-end torque for street driving, or are you seeking maximum power for track days? Here are the 3 factors to tune prioritized.
kinugawa turbo how to fine tune spool time 3 factors
  • Priority: Highest
  • Impact on Spool Time: The A/R ratio directly influences the exhaust gas velocity and energy reaching the turbine wheel. A smaller A/R ratio generally leads to faster spool-up due to increased exhaust gas velocity, but it can also limit top-end power. A larger A/R ratio results in slower spool-up but can support higher power levels at higher RPMs.
2. Turbine Wheel Design:
  • Priority: High
  • Impact on Spool Time: The size and design of the turbine wheel affect its inertia and how efficiently it extracts energy from the exhaust gases. A smaller and lighter turbine wheel will typically spool up faster, but it might have lower peak power potential. The blade design also plays a role, with some designs optimized for faster spool-up.
3. Compressor Wheel Design:
  • Priority: Moderate
  • Impact on Spool Time: While the compressor wheel itself doesn't directly impact spool time, its design and size influence the overall balance and efficiency of the turbocharger. A larger compressor wheel requires more energy to spin, which can slightly increase spool time. However, a well-matched compressor wheel can improve overall efficiency and reduce backpressure, indirectly aiding spool-up.

Application
- For Mitsubishi, please specify: 49377-06520
- For Saab P / N: 55564940
- For Saab 03 ~ 9-3 Aero 2.0l vector
- For Saab 03 ~ 05 9-3 2.0l arc b207l motor
- For Saab 03 ~ 9-3 Aero with engine b207r
- For Opel Vectra - Z20NET (rebadged B207L) 2006–2008
- For Opel Signum - Z20NET (rebadged B207L) 2003–2008
- For Cadillac BLS - B207L B207R 2006–2010
- Turbo P/N: 49377-06520
- OEM P/N: 55564940/55564941/55565831
- For GM PN: 55564940/55564941/55565831
- For MHI PN: 49377-06620 / 49377-06500 / 49377-06501 / 49377-06502 / 49377-06510 / 49377-06520
- The turbo was upgraded from genuine MHI/GM turbochargers.

- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.

Wheels Spec
- Compressor wheels: 46 / 58.0 mm (11+0 designed for top-end speed and 6+6 for low-end torque)
- Turbine wheel: 52 / 45.6 mm (3 types offered: STD, STS, STS55. Click here to learn more about STS technology.)
Kinugawa STS Turbin Wheel
Turbines Housing
- Nozzle area: 6cm
- Wastegate: internal gated

Bearing Type
- Journal Bearing

Cooling Type
- Oil and water cooling

Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

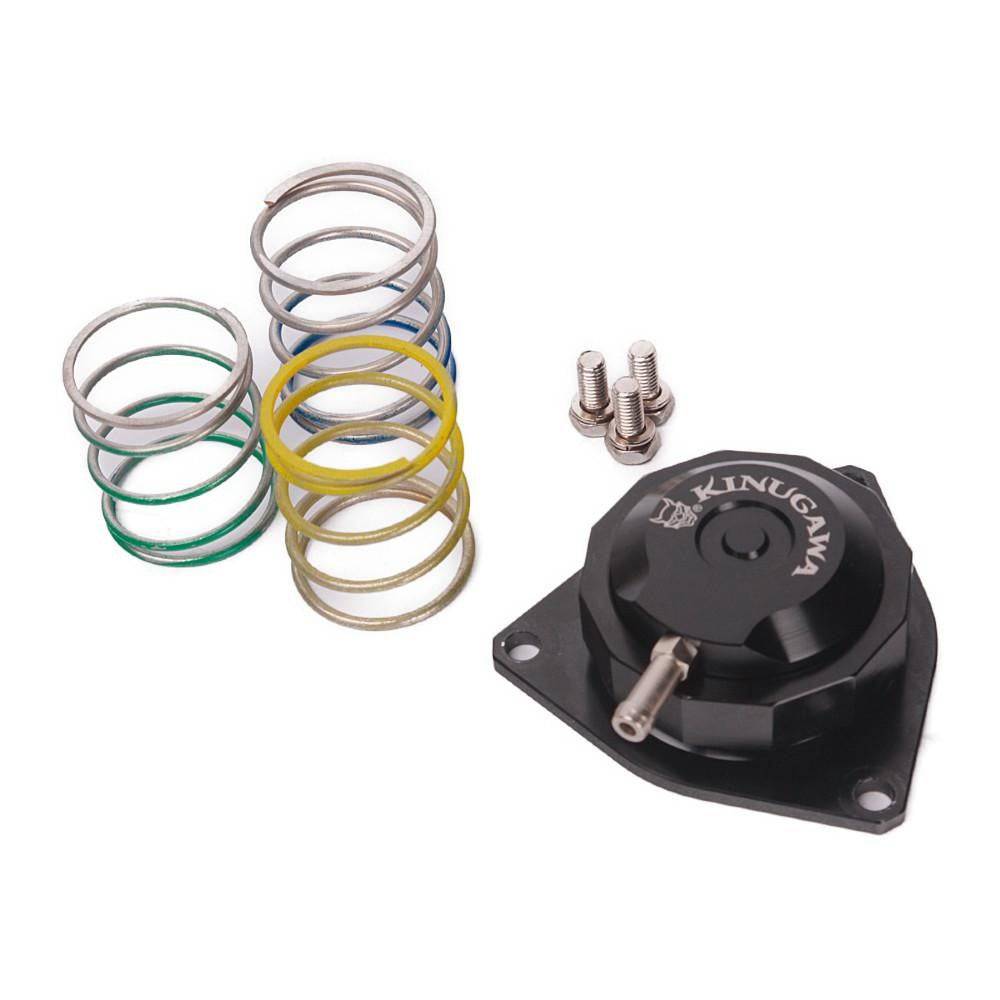

Valve Type - BOV/BCV

- Compressor cover has a factory BCV, that can change to a block plate, adjustable blow-off valve (BOV), or recirculating valve (BCV).
 (Click here to learn about the difference between BOV and BCV.↗)
- The suggestion of spring is according to the wastegate actuator spring pressure range.
 - 1 x Green spring: 5~15 Psi (default installation)
 - 1 x Yellow spring: 15~23 Psi (not included)
 - 1 x Blue spring: 23~30 Psi (not included)
- Please add a note or contact us if you need to change to yellow or blue spring.

The Set Includes
- 1 x Turbocharger
- 1 x Factory BCV, black plate, or adjustable BOV/BCV (4 options)
- 1 x Balanced report with anti-counterfeit tag↗

Situation
- Brand New
Execute the balanced cartridge on SCHENK MRBS 110 to ensure it can work very well.

Provider
- Kinugawa Turbo Systems

WARRANTY
Kinugawa 1-Year Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
