Kinugawa Turbo Ball Bearing TF06-18K for Mitsubishi 4B11T EVO X 10 Stage 2
Kinugawa Turbo Ball Bearing TF06-18K for Mitsubishi 4B11T EVO X 10 Stage 2
Regular price
$1,579.00USD
Regular price
$1,579.00USD
Sale price
$1,579.00USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The turbo makes the power curve much smoother and pulls to redline, making it faster and easier to drive daily because it's less jerky. Removing the stock turbo, downpipe, and mounting hardware is quite a task, but it is not insurmountable. This turbo is well worth the time it takes. It's worth your desire because of the flow characteristics and powerband. Someone usually makes the mistake of going too large and losing a lot of mid-range without the 18k turbo!
Application
- UK cars kept the Evolution X name. GS, GSR SST, FQ-300, FQ-330, FQ-360, FQ-400, FQ400 MR
- For Mitsubishi 4b11T EVO 10 / EVO X
- Japanese models: RS, GST
- North American models: GRS, MR, MR Premium, MR Touring, SE, Final Edition
Horsepower range
- 450-550WPH
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's performance results depend highly on your vehicle's modifications and tuning/calibration.
Wheels Spec:
- Compressor wheel: 55.1 / 75 mm Third-order surface
This high-performance 75mm compressor blends quick response and top-end power with OE reliability. The billet 18KX (aka 18K) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades for a 54lb/min flow rate. This turbo can produce 500+hp with a built engine and supporting modifications.
| Free Surface | Ruled Surface | |
| Process | Point Milling | Flank Milling |
| Machining Time | Slow 120 mins.each | Quick 15 mins. each |
| Characters |
1. Free Surface can be only produced by Point Milling 2. More air pressure and increase much better flow efficiency. 3. Only suitable to the very easy design of compressor wheel 4. Mainly for high-efficiency turbochargers. |
1. Ruled Surface can be produced by Flank Milling 2. Low efficiency 3. Only suitable to the very easy design of compressor wheel 4. Mainly for fundamental mechanical engineering such as Centrifugal compressor |
- Turbine wheel: 54 / 61.5 mm (TF06 turbine wheel)
Feature: The STS (Superior Turbine Strike) turbine wheel. It will take a shorter time (decrease 5-8%) to build a boost and, at higher RPM, prevent choking easier because it's less inertia and restrictive than an 11 or 12 blades turbine.
Compressor Housing

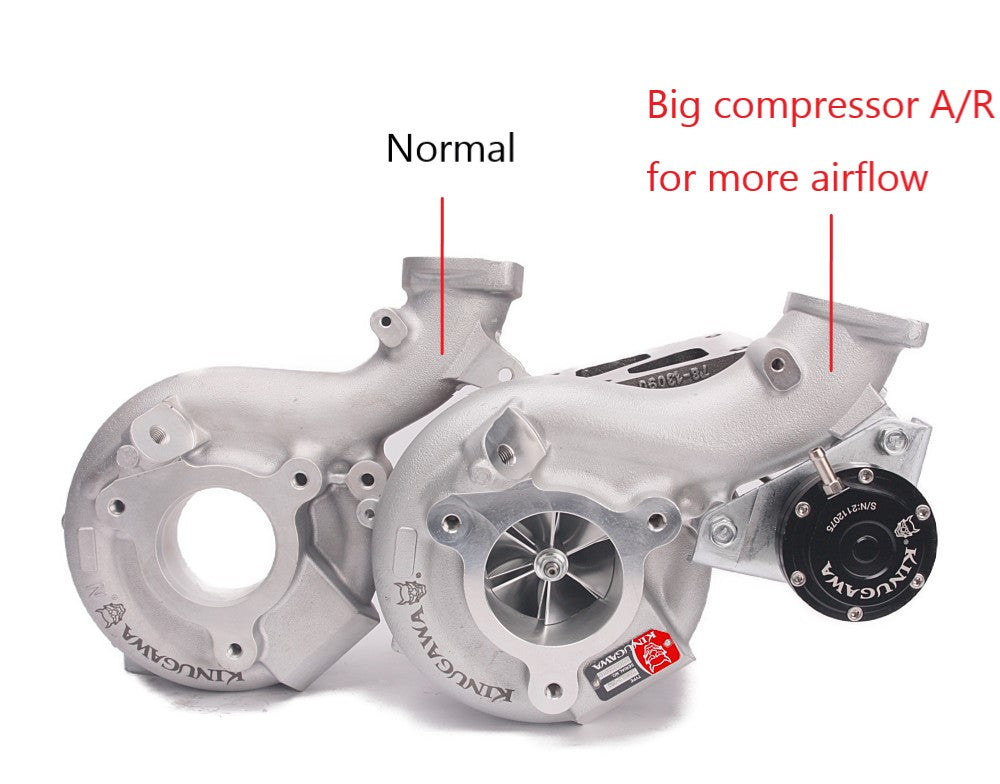

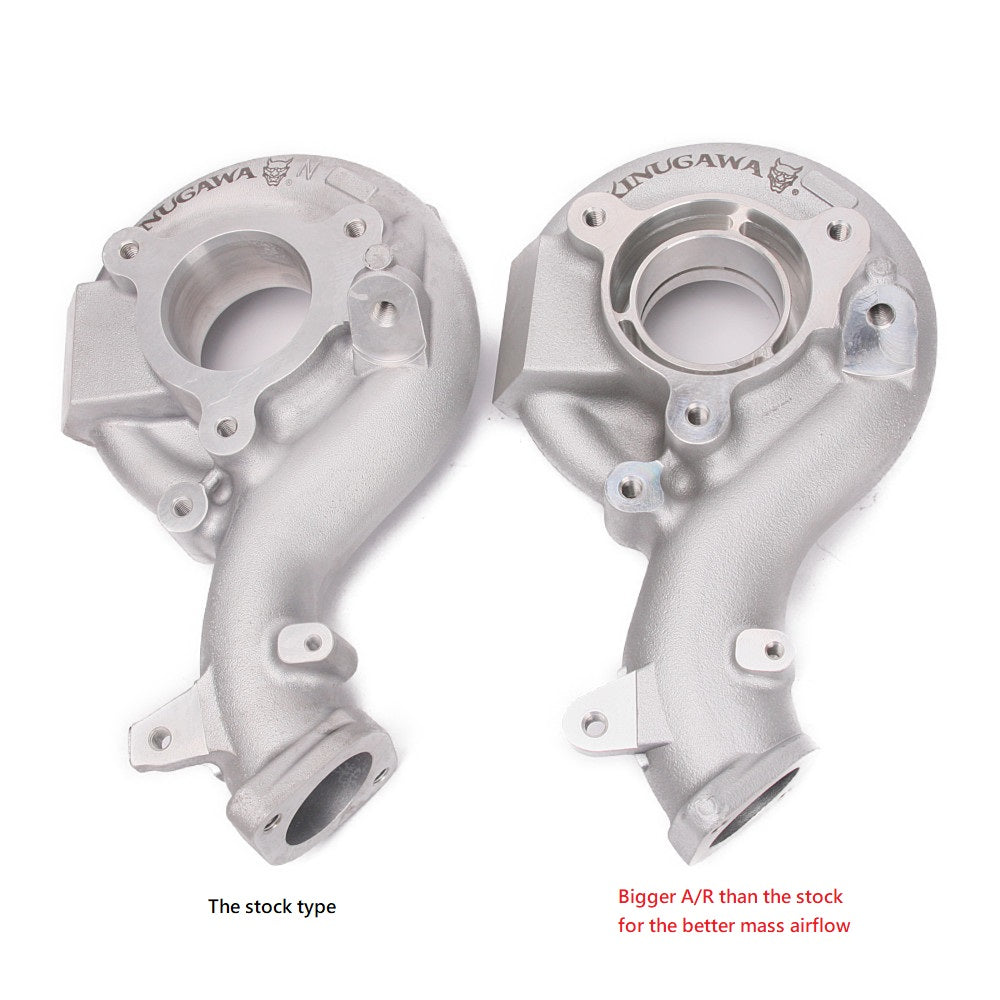

- The stock position with the bigger a/r is better for the mass airflow.
Turbines Housing (Thermal Resistant)
- 12cm ^ 2 double-scrolling turbine housing 22% Hi-NI
BEARING TYPE
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling systems
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 psi is the Default.
- 0.5 bar, 0.8 bar, 1 bar, 1.2 bar, 1.5 bar, available 1.7 bar, and 2.0 bar; please add a comment about your order if you need to change it.
Situation
- Brand New
The set includes
- 1 x Oil set for oil supply
- 1 x Return Oil Pipeline
- 1 x water coolant and return kit (6an / large hose)
- 1 x Turbine gasket kit
- 1 x Turbocharger
- 1 x Balance Report with Anti-Counterfeit Tag
Provider
- Kinugawa Turbo Systems
Guarantee
- One year
Certification and Quality
Certification and Quality
The anti-counterfeit tags that come with the Kinugawa turbochargers and cartridges balance reports. Customers can check genuine status, product information, instruction of installation, troubleshooting via our cloud system.
Where and How to use the APP?
1. Touch: Anti-Counterfeit filaments, randomly allocated on the Anti-Counterfeit Tag, are solid and 3-dimensional. Consumers can touch, feel and look at the Tag to verify its authenticity.
2. Scan: Use the Wetrusty APP to scan the Anti-Counterfeit Tag and QR Code. Should scanning fails, customers can switch to manual mode, enter the Tag ID numbers to obtain the authenticated image provided by Wetrusty service.
3. Compare: Compare your scanned image/photo with the authenticated image provided by Wetrusty. Pay close attention to the allocations of the Anti-Counterfeit filaments: their positions, shapes and quantities. To facilitate comparison, customers can tap the screen to enlarge and drag images, or switch compare mode—“side by side” or “overlay” mode.
4. Product information inquiry: Inquiry roduct information, traceability, logistics information, related websites and activities, company profile and websites, etc.
