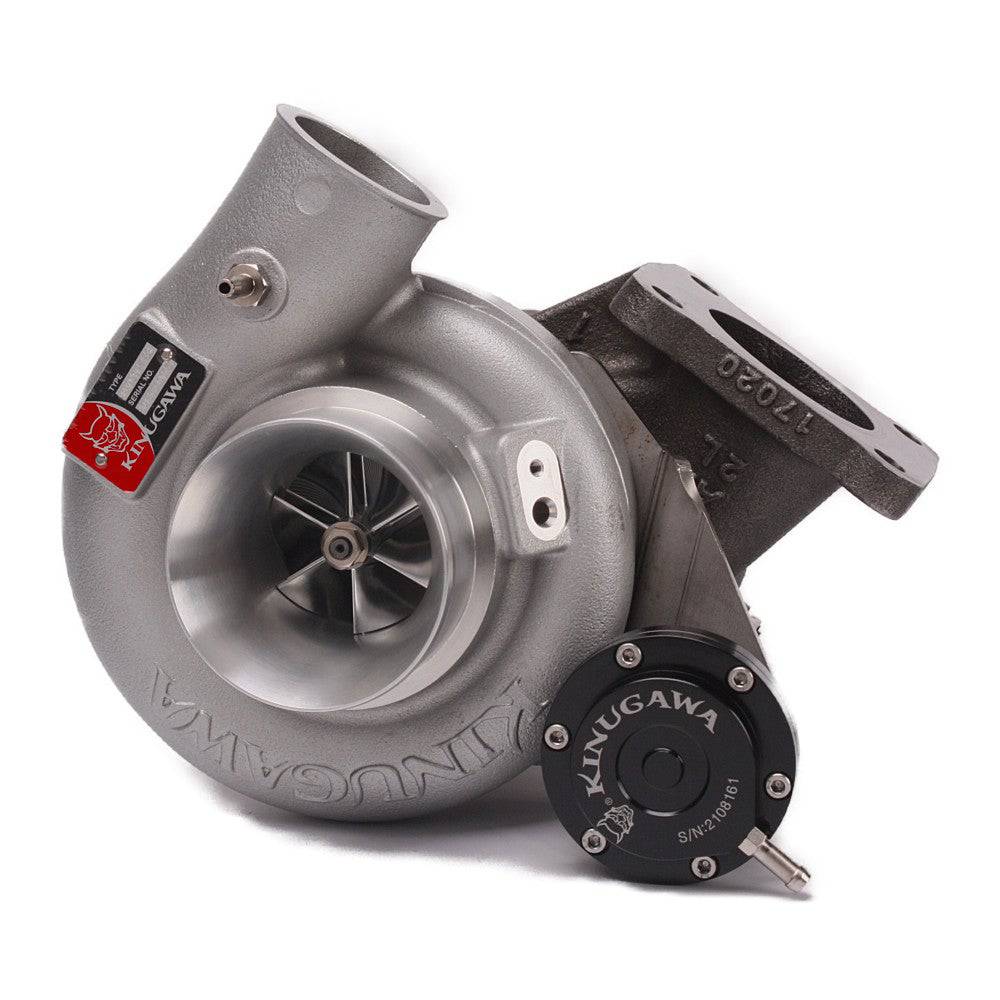

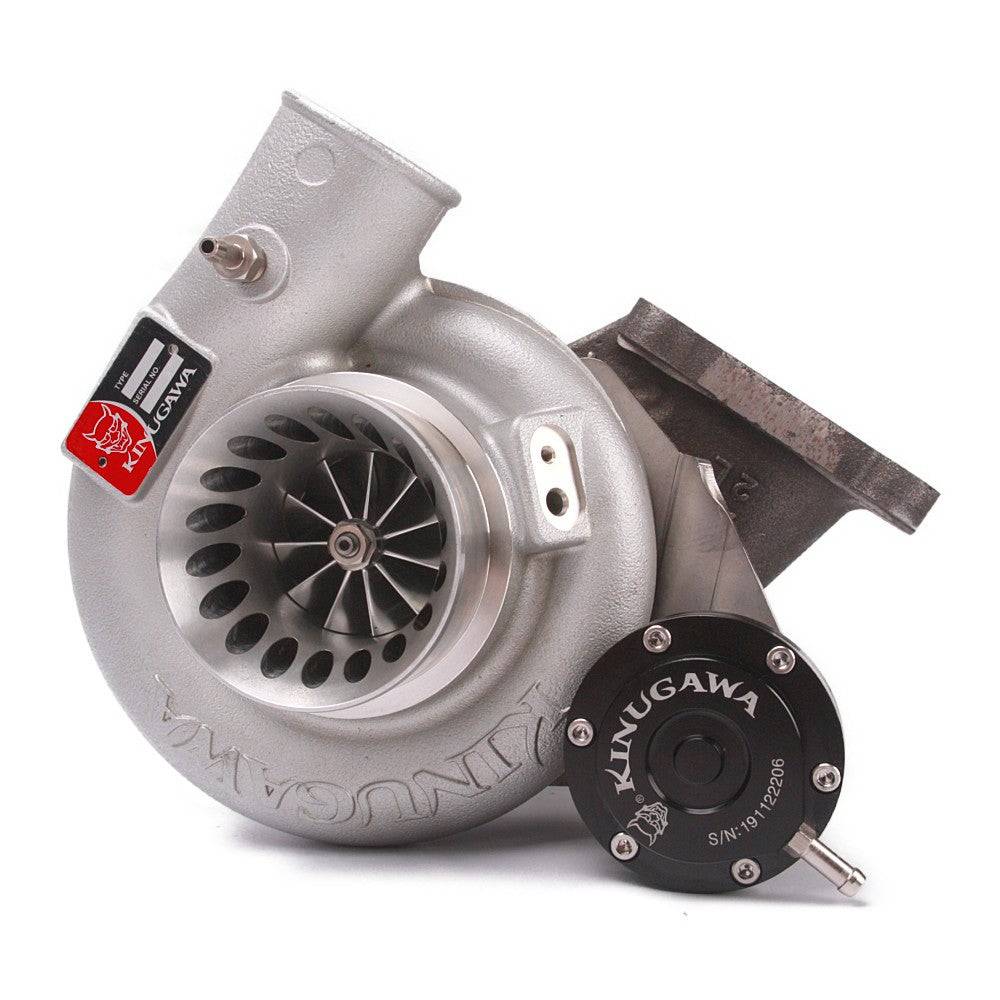

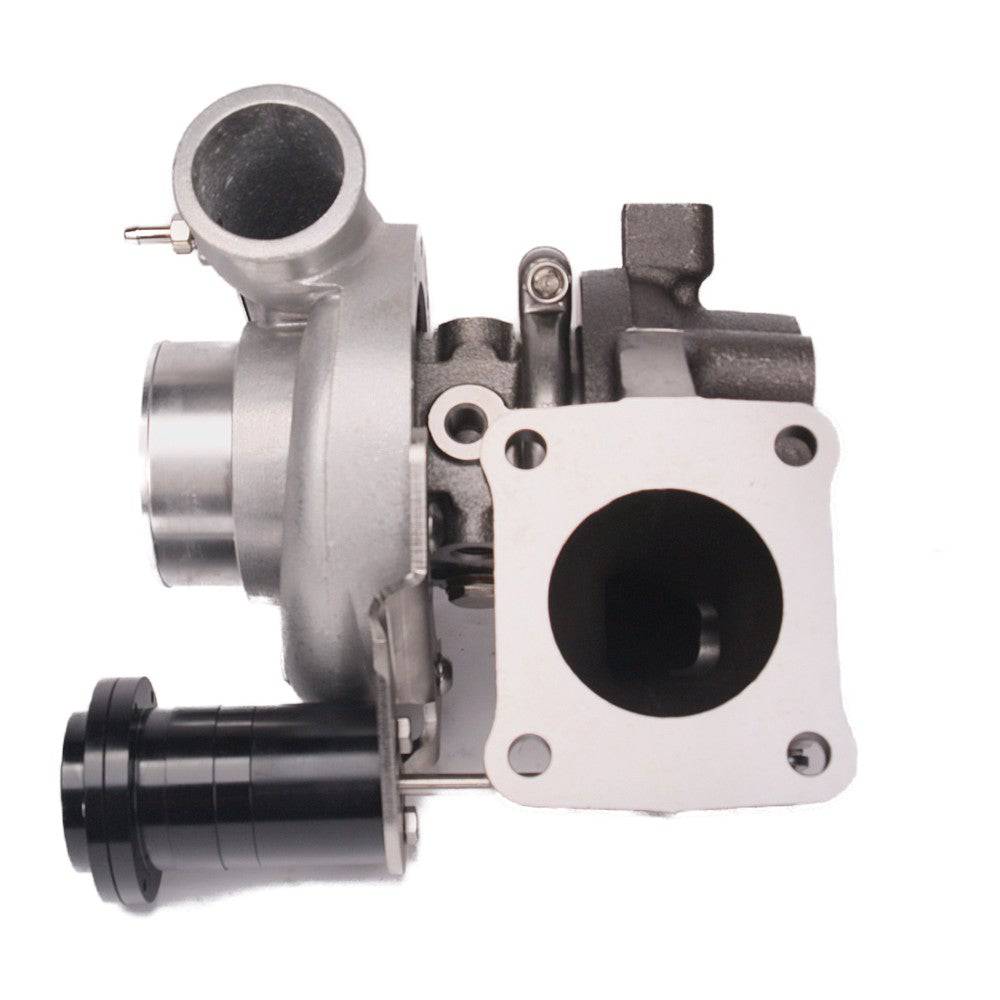

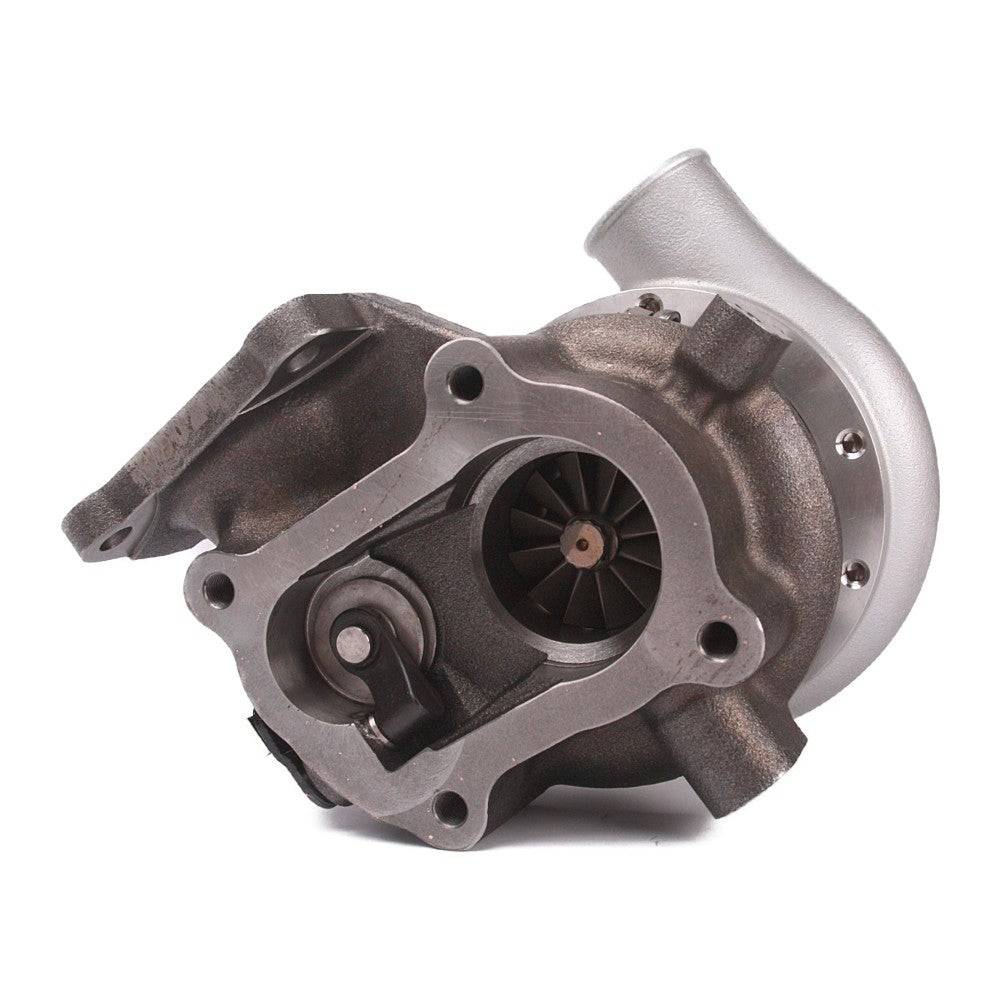

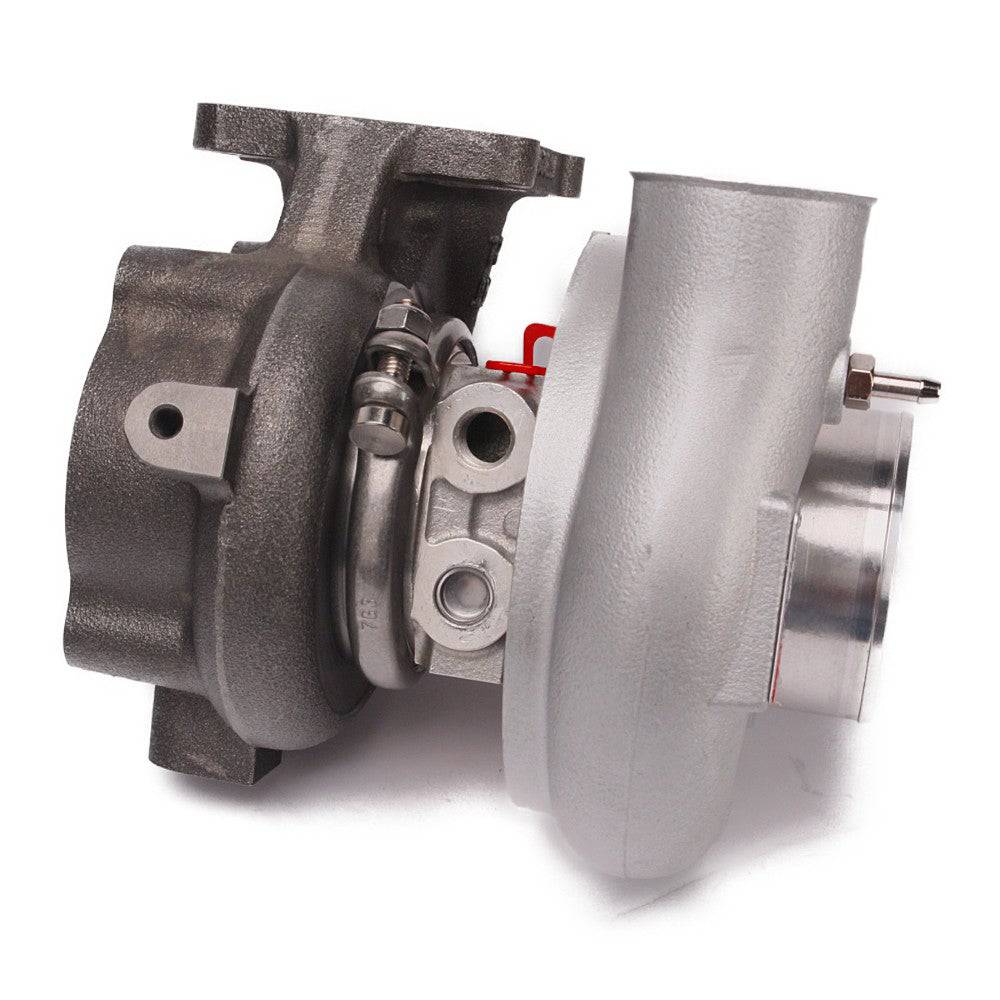

Kinugawa Turbo Ball Bearing 3" TD05H-18G 7cm Toyota LandCruiser 1HD-T 1HD-FT Ultimate Spool

Regular price $1,199.00



Description
Kinugawa for Toyota 1HD diesel td05h-18g spec turbocharger with 3" inlet cover and 7cm Bolt-on turbine housing provide ultimate spool time than the stock (8cm). The turbocharger is equipped with CT26 base turbine housing (inlet and outlet type) the same as the factory turbocharged 1HD Land Cruiser engine you will get less labor work. There is more top-end speed with the bigger compressor wheel

Application
  • 1991~1997 TOYOTA 1HD-T / 1HD-FT 4.2L Land Cruiser (HDJ80/81/82)
  • Replace & Upgrade 17201-17010, 17201-17030
  • Bolt Up to fit factory exhaust manifold and dump pipe.
  • Horsepower Range: 250~280hp
  • The compressor cover inlet pipe / Air filter needs to modify to fit this 3” inlet. (If your demand is for 17201-17040 of 1HD-FTE HDJ78 HDJ79 HDJ100 HDJ105 inquiring about different compressor housing)
CHRA Size
- TD05H-18G

Wheels Spec
- Compressor wheel: 50.3 / 68.0 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56 / 49.2 mm 9 blades sts Click here to learn more about STS technology. (the factory CT26 Turbine wheel is 68/52 mm )


Compressor Housing
- Compressor inlet: 3 " Anti-surge AR 60

Turbines Housing
- A/R: 7cm CT26 Bolt-on smaller than the stock 8cm for fast spool

Bearing Type
- Dual Ceramic Ball Bearing

Cooling Type
- oil and water cooling

Actuator Pressure
- Default 1.0bar The drive will go with the turbo.
- We have 0.5bar, 0.8bar, 1.2bar, 1.5bar, 1.7bar, and 2.0bar drives; please add a comment to your order if you need to change it.

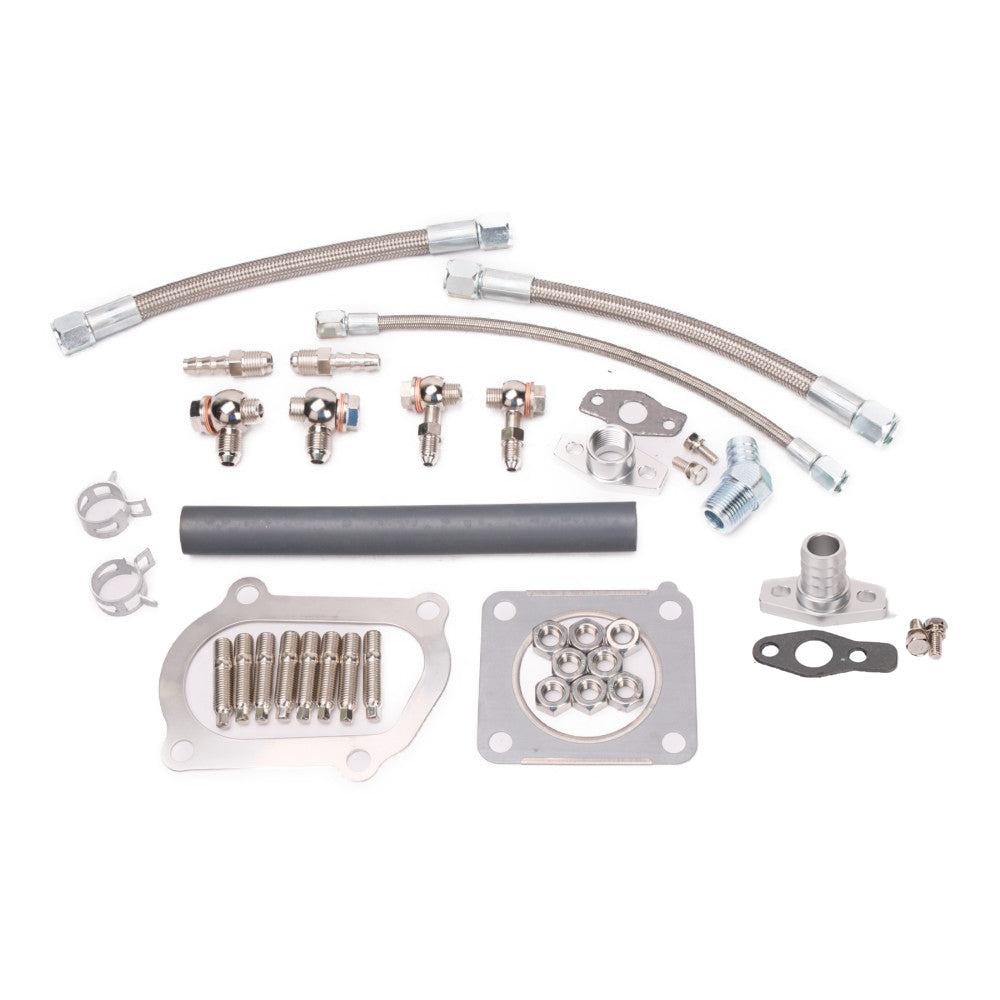

The set includes
- 1 x Oil supply set
- 1 x water coolant and return set
- 1 x gasket set

- 1 x Turbocharger

- 1 x Balance report with an anti-counterfeit tag

Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany

Provider
- Kinugawa Turbo Systems

Guarantee
- One year



Kinugawa STS Turbin Wheel

Kinugawa Turbo Systems STS Advanced Fast Spool
Kinugawa Turbo Systems SCHENK Balancer
Kinugawa Turbo Systems Anti-Counterfeit Tag
`
