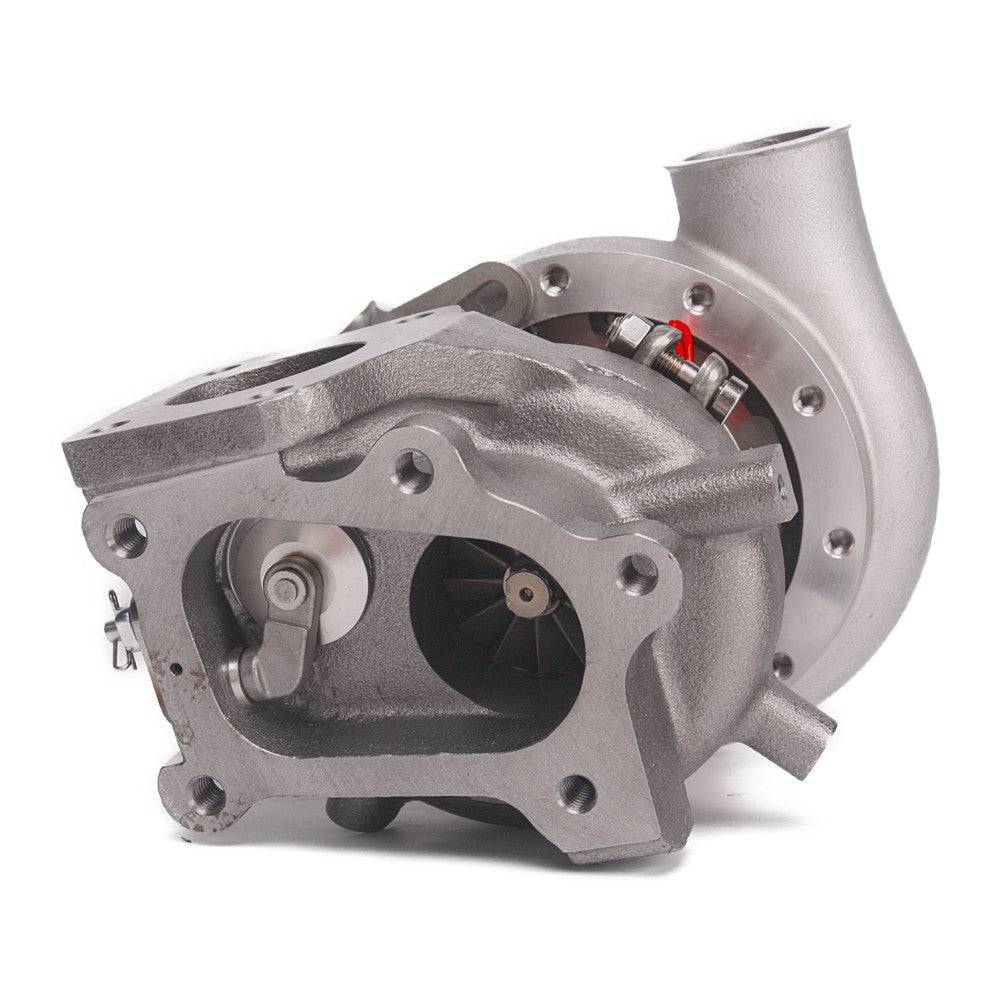

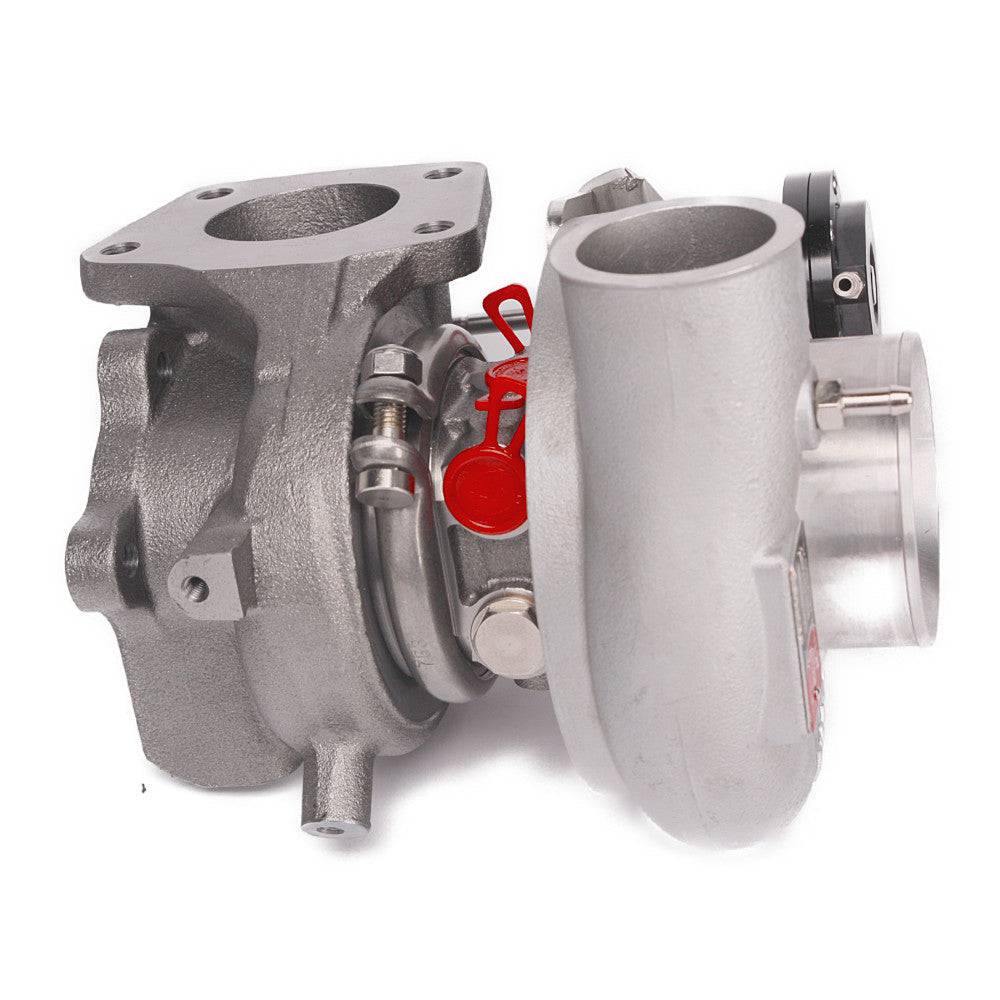

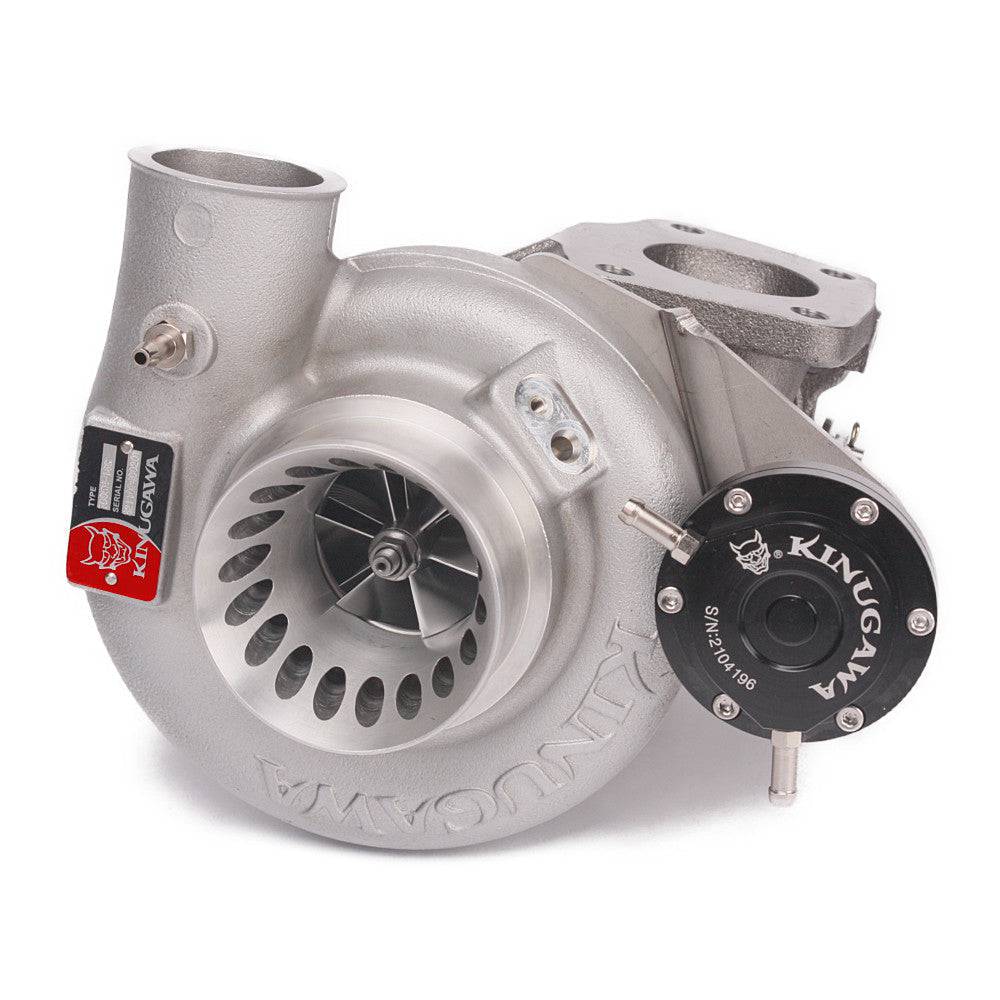

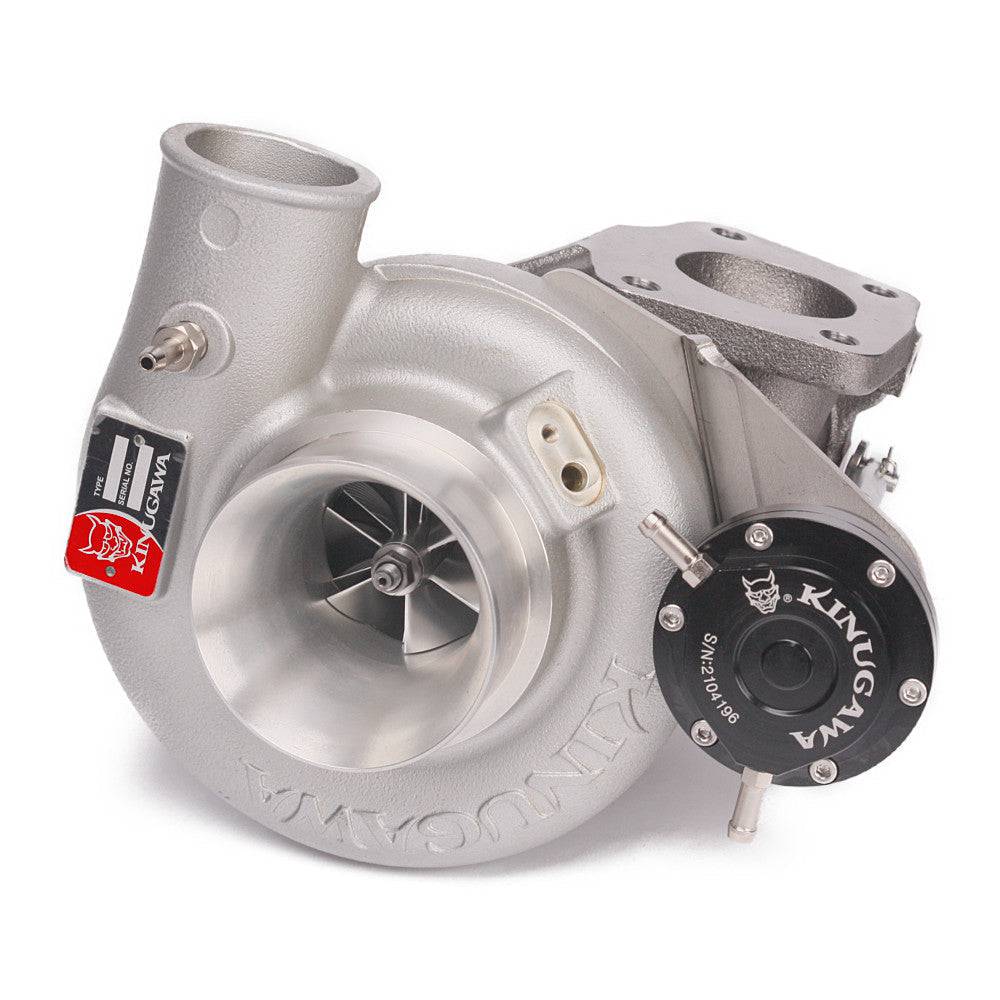

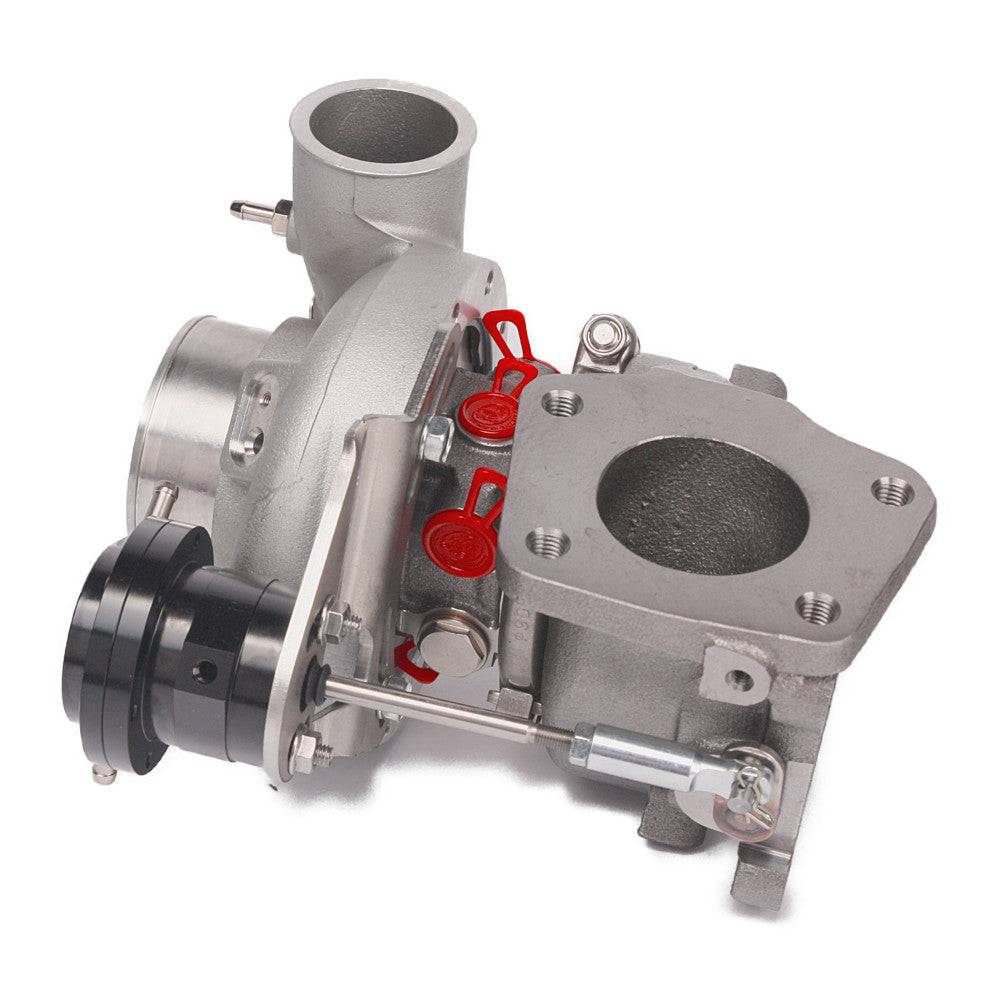

Kinugawa Turbo 3" TD06SL2-20G MAZDA Mazdaspeed 3 6 MPS MZR DISI 2.3L CX7 CX9

Sale price $899.00 Regular price $899.00



Description
Is the factory turbocharger feeling a little tired? Or if you are ready to make a little more power without going way over the top, then you will be pleased with the turbocharger. This is a great upgrade for those of you looking to make more power while maintaining a great low-range to the mid-range response. This particular turbocharger is capable of producing up to 400 WHP on a healthy engine with an excellent throttle response. This is a great option for street and track duties.

Application
- Fits 2007~2013 Mazdaspeed 3 MPS / 6 / CX7 / CX9 with K0422-881, K0422-882, K0422-883 K04-581, 582, 583 turbochargers.
- Fits Mazdaspeed6/ Mazda6 MPS/Atenza MPS, Mazda CX-7, Mazdaspeed3/ Mazda3 MPS/Axela MPS, Mazda MPV (JDM)
- Horsepower range: 350~400WHP

The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD06SL2-20G

Wheels Spec
- Turbine wheels: 61/ 54 mm
Feature: The STS (Superior Turbine Strike) turbine wheel. It will take a shorter time (decrease 5-8%) to build a boost and, at higher RPM, prevent choking easier because it's less inertia and restrictive than an 11 or 12 blades turbine.
- Compressor wheel: 52.3 / 68 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)

Compressor Housing
- Compressor inlet: 3"
- Compressor outlet: 2.0"
- A/R .60 Larger than stock better for top-end speed extended.

Turbines Housing
- Bolt-on to the stock manifold
- A/R .65 (9cm) Larger than stock and help to reduce the backpressure and is better for top-end speed extended.

Bearing Type
- Journal Bearing with 360-degree thrust bearing kit

Cooling Type
- oil and water cooling

Actuator Pressure
1.0bar is the default.
- We have 0.5bar, 0.8bar, 1.2bar, 1.5bar, 1.7bar, and 2.0bar drives, Please add a comment to your order if you need to change it.

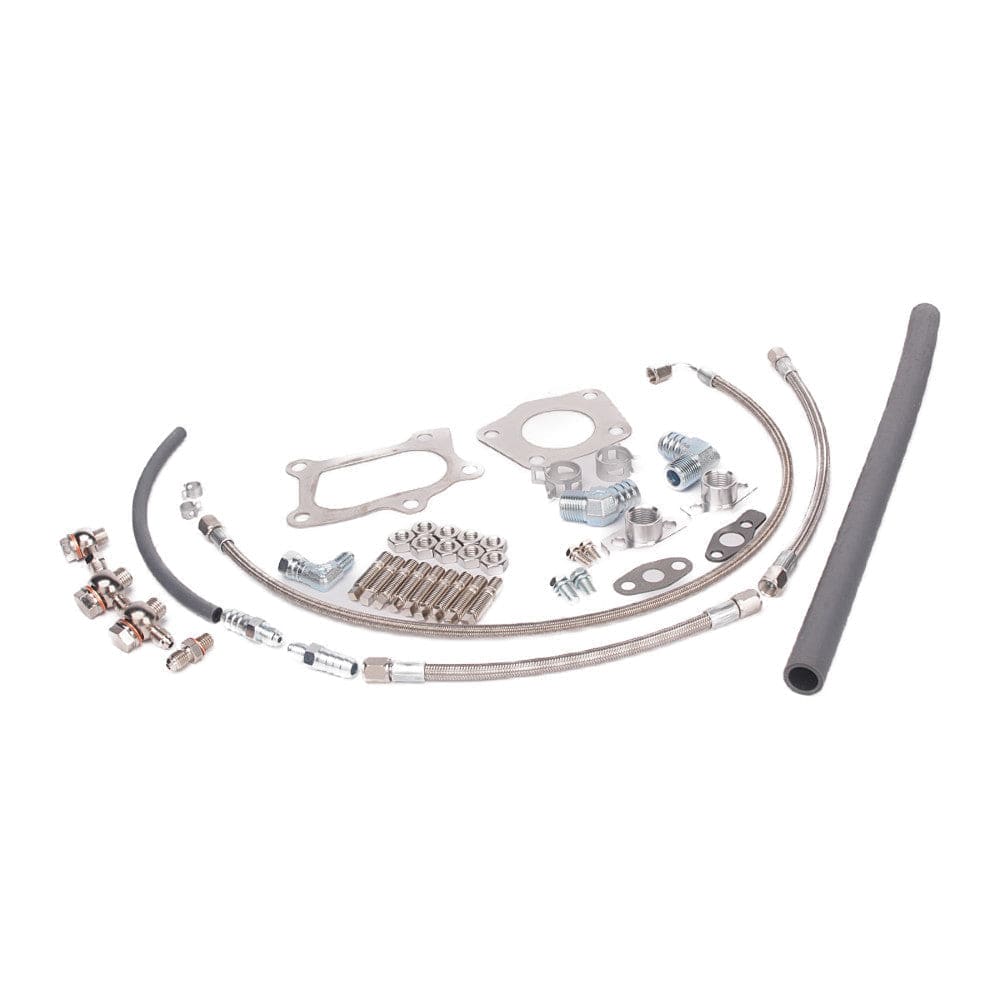

The set includes
- 1 x Oil supply set
- 1 x water supply and return pipe set
- 1 x Return Oil Pipeline
- 1 x turbine inlet and outlet gasket
- 9 x Stud And Nut Set

Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany

Provider
- Kinugawa Turbo Systems

Guarantee
-One year


Kinugawa STS Turbin Wheel
Kinugawa Turbo Systems Billet Compressor Wheel and 360 Dynamic Thrust Bearing
Kinugawa Turbo Systems Compressor Map TD02-TD08
Kinugawa Turbo Systems SCHENK Balancer
Kinugawa Turbo Systems Anti-Counterfeit Tag

`
