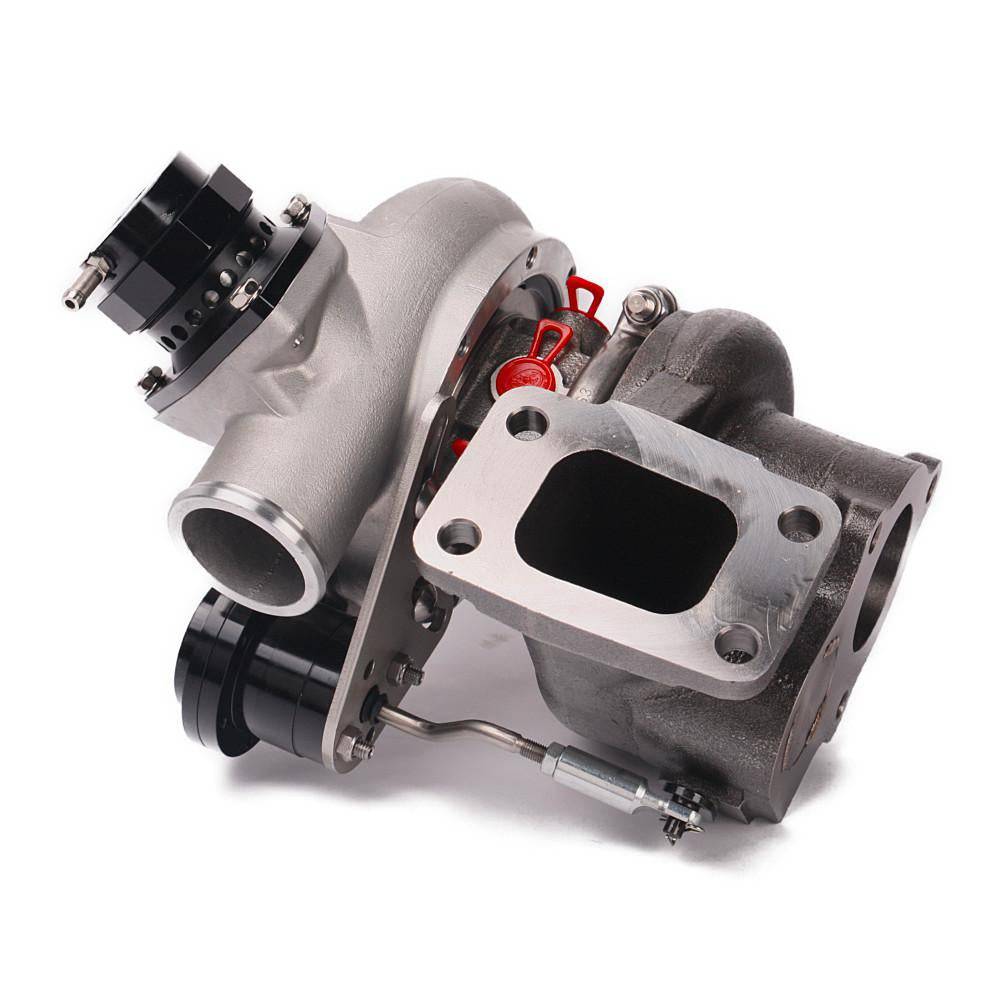

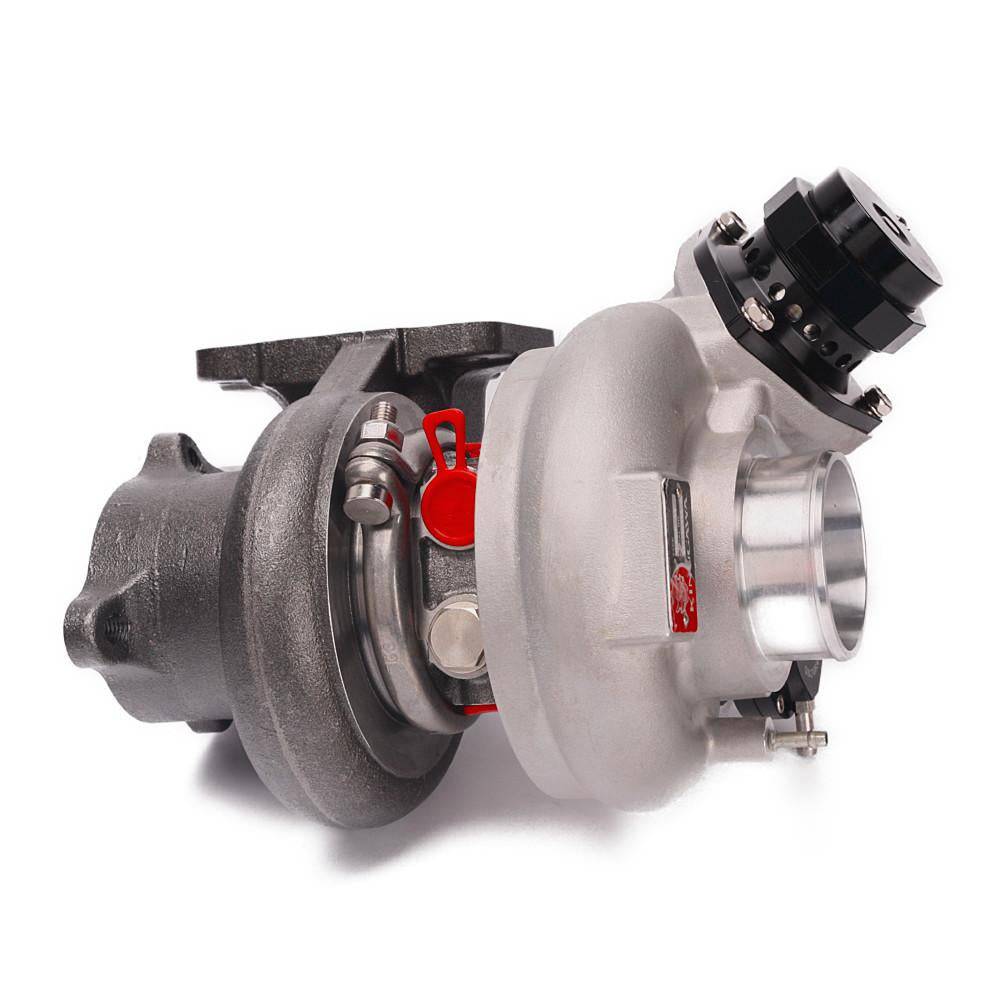

Kinugawa Turbo Ball Bearing 2.4" TD05H-18G 6cm T3 3-Bolt 3" V-Band Internal Wastegate BOV BCV

Kinugawa Turbo Ball Bearing 2.4" TD05H-18G 6cm T3 3-Bolt 3" V-Band Internal Wastegate BOV BCV

Regular price $1,199.00USD
Regular price $1,199.00USD Sale price $1,199.00USD
Sale Sold out
Shipping calculated at checkout.

Crank Horsepower: 350-400HP

Compressor Wheel
Turbine Wheel
Valve Type

Consider Your Driving Style

Do you prioritize quick spool-up and low-end torque for street driving, or are you seeking maximum power for track days? Here are the 3 factors to tune prioritized.
kinugawa turbo how to fine tune spool time 3 factors
  • Priority: Highest
  • Impact on Spool Time: The A/R ratio directly influences the exhaust gas velocity and energy reaching the turbine wheel. A smaller A/R ratio generally leads to faster spool-up due to increased exhaust gas velocity, but it can also limit top-end power. A larger A/R ratio results in slower spool-up but can support higher power levels at higher RPMs.
2. Turbine Wheel Design:
  • Priority: High
  • Impact on Spool Time: The size and design of the turbine wheel affect its inertia and how efficiently it extracts energy from the exhaust gases. A smaller and lighter turbine wheel will typically spool up faster, but it might have lower peak power potential. The blade design also plays a role, with some designs optimized for faster spool-up.
3. Compressor Wheel Design:
  • Priority: Moderate
  • Impact on Spool Time: While the compressor wheel itself doesn't directly impact spool time, its design and size influence the overall balance and efficiency of the turbocharger. A larger compressor wheel requires more energy to spin, which can slightly increase spool time. However, a well-matched compressor wheel can improve overall efficiency and reduce backpressure, indirectly aiding spool-up.
APPLICATION
- Universal type
- 1800~2500cc

- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.

CHRA SIZE
- TD05H-18G

WHEEL SPEC
- Compressor Wheel: 50.3 / 68 mm
 (The 6+6 blade is better for low-end torque; the 11+0 blade is for top-end speed.)
- Turbine Wheel: 55.8 / 49.1 mm (9 Blades STS)
 (Click here to learn more about STS technology.↗)

COMPRESSOR HOUSING
- Nozzle Area: AR.57
- Inlet: 2.4" non anti-surge
- Outlet: 2"

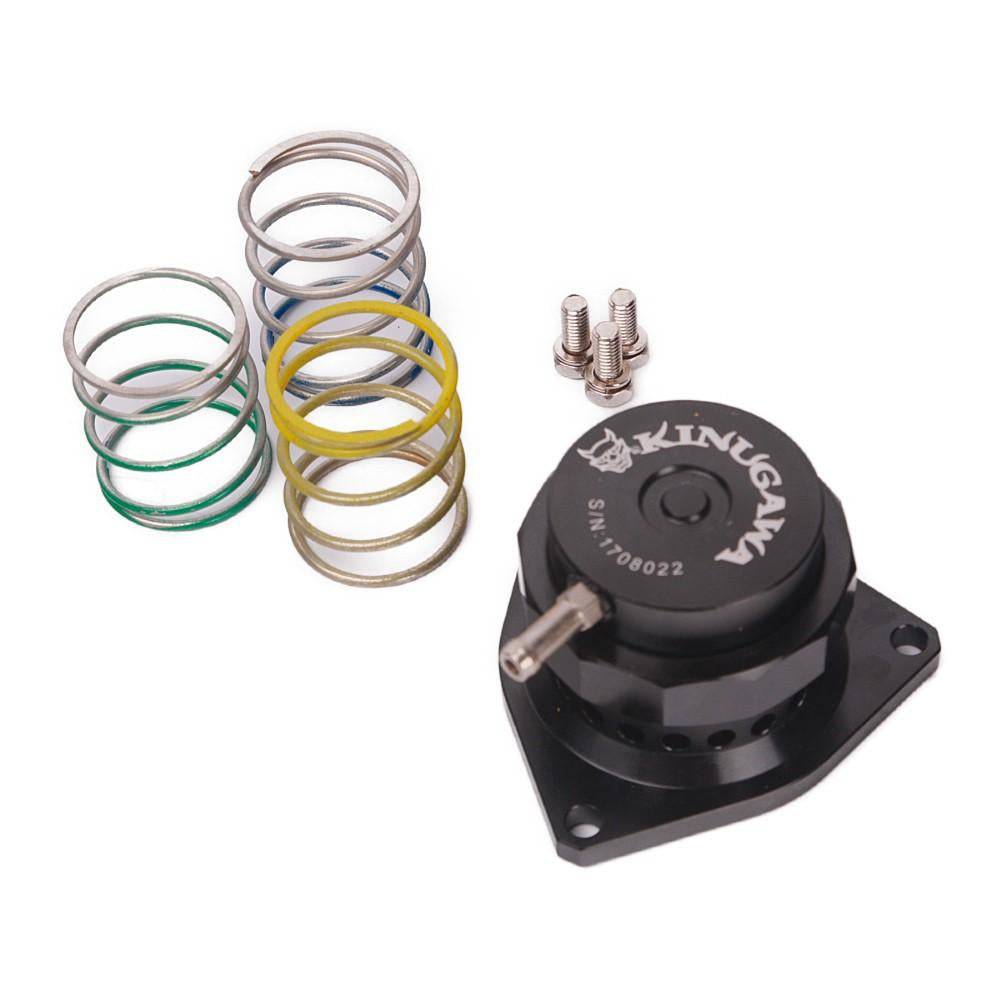

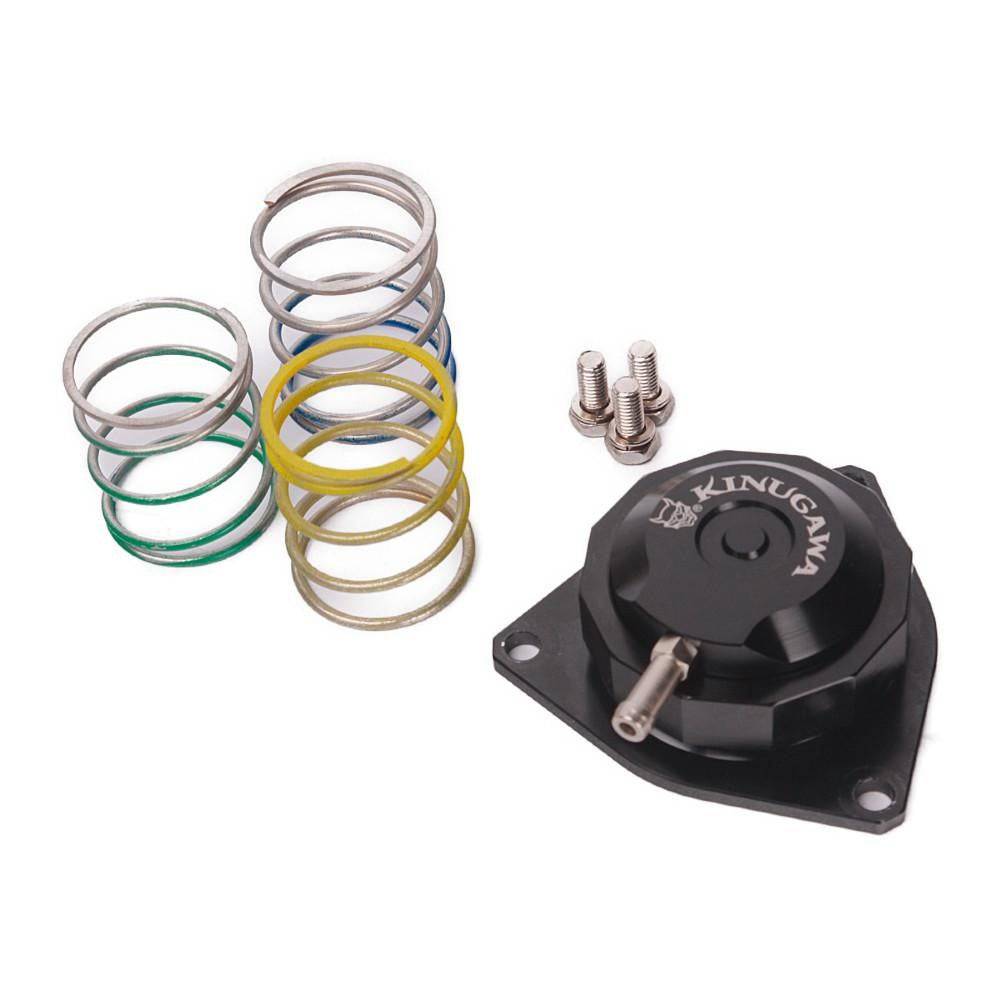

- Cover with an optionally adjustable blow-off valve (BOV) or recirculating valve (BCV)
 (Click here to learn about the difference between BOV and BCV.↗)
- The suggestion of BOV/BCV spring is according to the wastegate actuator spring pressure range.
 - 1 x Green spring: 5~15 Psi (default installation)
 - 1 x Yellow spring: 15~23 Psi (included)
 - 1 x Blue spring: 23~30 Psi (included)

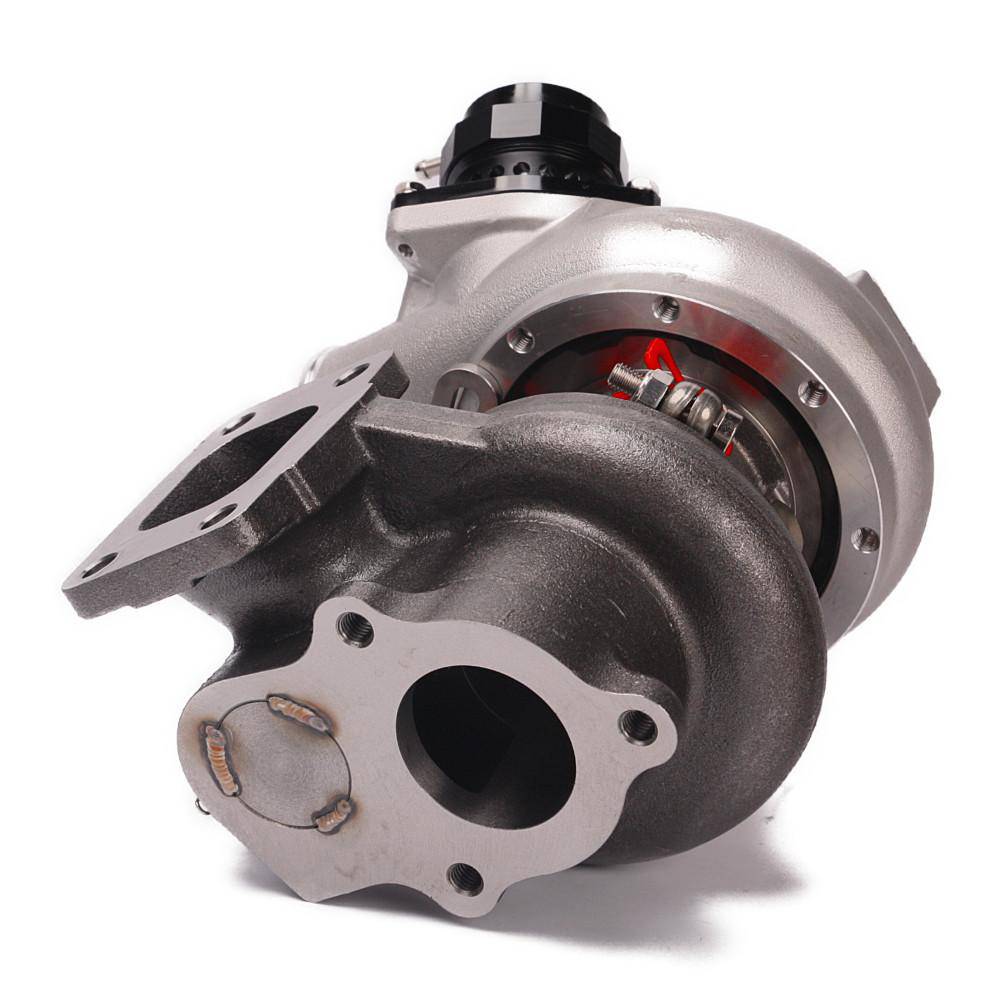

TURBINE HOUSING
- Nozzle Area: 6cm AR.41
- Inlet: T3

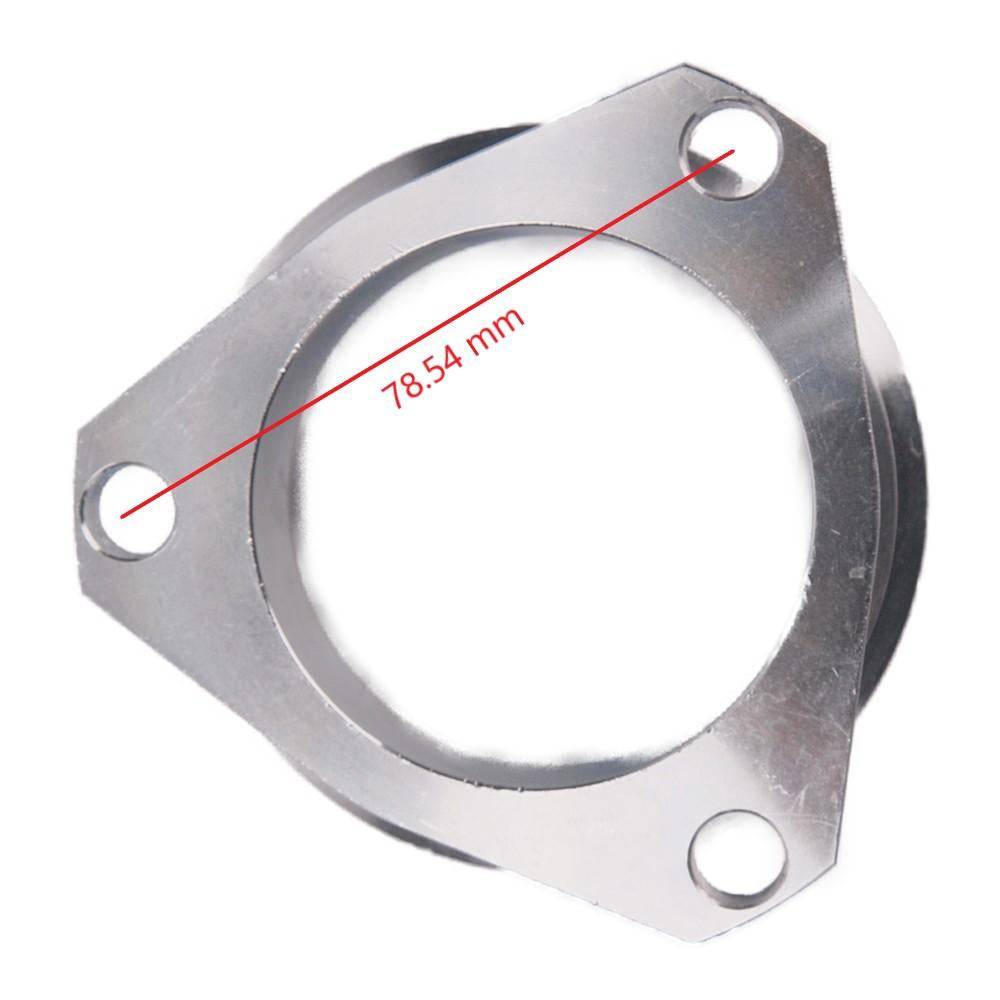

- Outlet: DTS 3-bolt type to 3" V-band
- Wastegate: Internal gated
- Note: This 3-bolt type of TD05/06 turbine housing is commonly used on some factory diesel engines such as Mitsubishi Fuso / Kobelco 4M50T TD05H (49178-02020 / 49178-02030...), CAT S6K TD06H, Kubota M105D/V4702, some gasoline engine as GMC 4.3L LB4 Syclone/Typhoon...
Such turbine housing was used on some Greddy (RB20DET, RB25DET, 7M-GTE, 3S-GTE...) and DTS/MTQ...turbo kits.

BEARING TYPE
- Dual Ceramic Ball Bearing

COOLING TYPE
- Oil and Water-Cooled

ACTUATOR PRESSURE
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

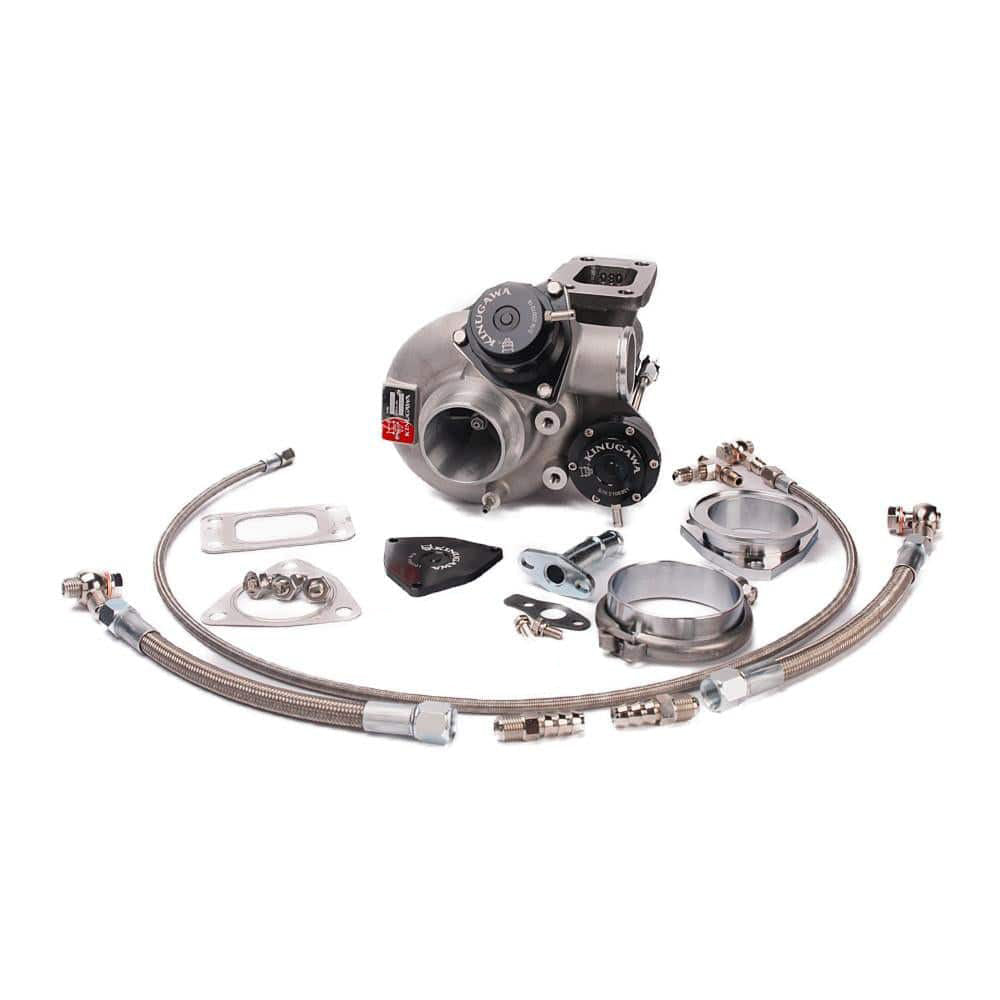

KIT INCLUDES
- 1 x turbocharger
- 1 x adjustable BOV or BCV (2 options)
- 1 x blowoff flange kit
- 1 x oil and water line kit
- 1 x turbine inlet/outlet gasket set

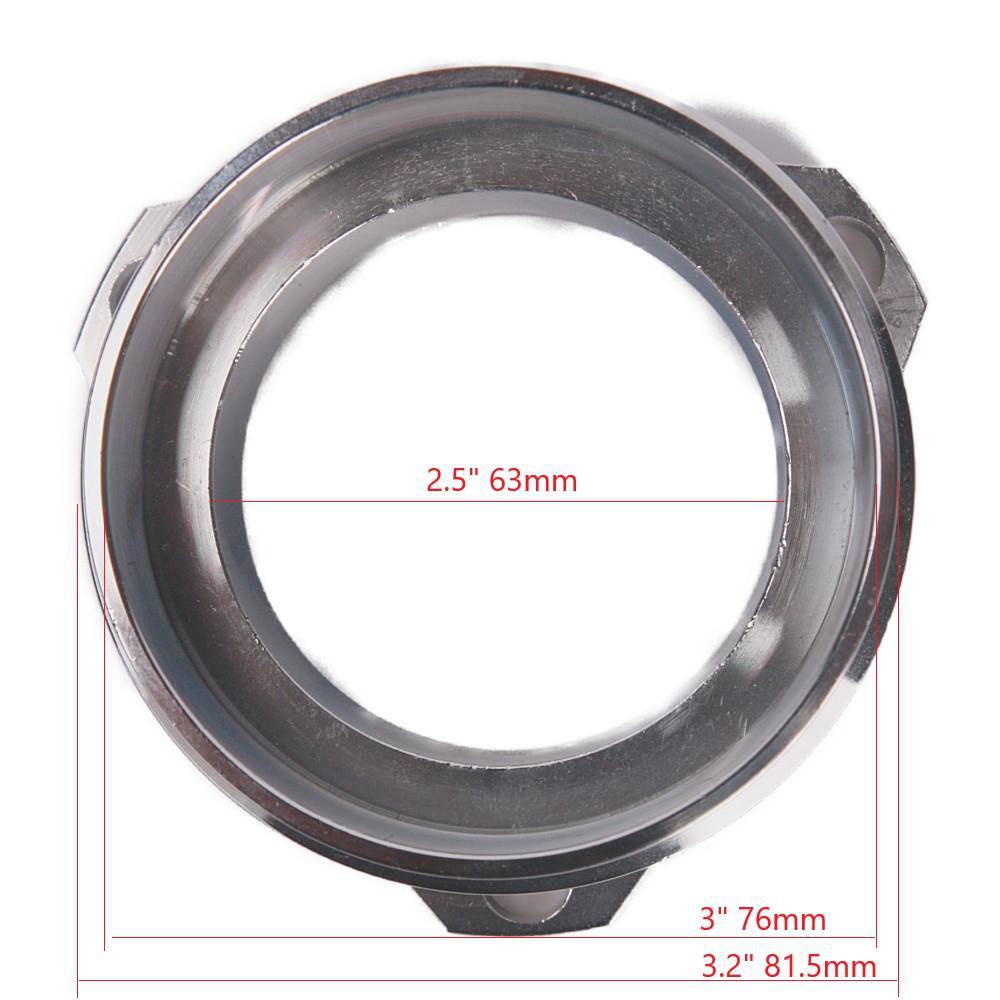

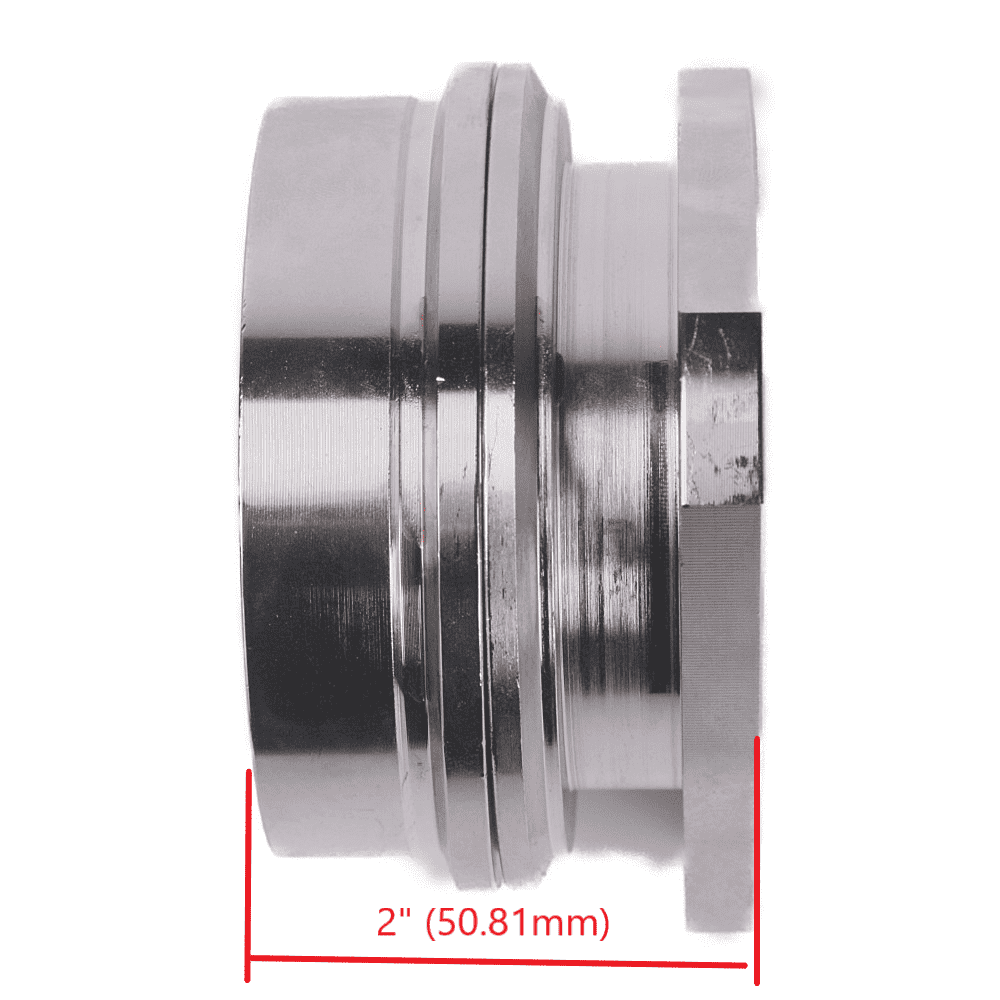

- 1 x 3" v-band adapter kit
- 1 x Balance report with anti-counterfeit tag↗

PRODUCT SITUATION
- Brand New

PROVIDER
- Kinugawa Turbo Systems

WARRANTY
Kinugawa 1-Year Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
