Description
APPLICATION
- 1.5~2L petrol engine
- 2.5~4L diesel engine
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
WHEEL SPEC
- Compressor Wheel: 47 / 58.0 mm
(The 6+6 blade is better for low-end torque; the 11+0 blade is for top-end speed)
- Turbine Wheel: 52.0 / 45.6 mm
(3 types available: STD, STS, STS55. Click here to learn more about STS technology.↗)
COMPRESSOR HOUSING (Adjustable Direction)
- Inlet: 2.4" non anti-surge
- Outlet: 2"
VALVE TYPE - BOV / BCV
- Compressor cover has a factory BCV, that can change to a block plate, adjustable blow-off valve (BOV), or recirculating valve (BCV).
(Click here to learn about the difference between BOV and BCV.↗)
- The suggestion of BOV/BCV spring is according to the wastegate actuator spring pressure range.
- 1 x Green spring: 5~15 Psi (default installation)
- 1 x Yellow spring: 15~23 Psi (included)
- 1 x Blue spring: 23~30 Psi (included)
TURBINE HOUSING
- Nozzle Area: 5cm^2 / AR.33
- Inlet: T25
- Outlet: SAAB Conic type with 2.25" flange adapter
- Wastegate: Internal gated
BEARING TYPE
- Journal Bearing
COOLING TYPE
- Oil and Water-Cooled
ACTUATOR PRESSURE
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
KIT INCLUDES

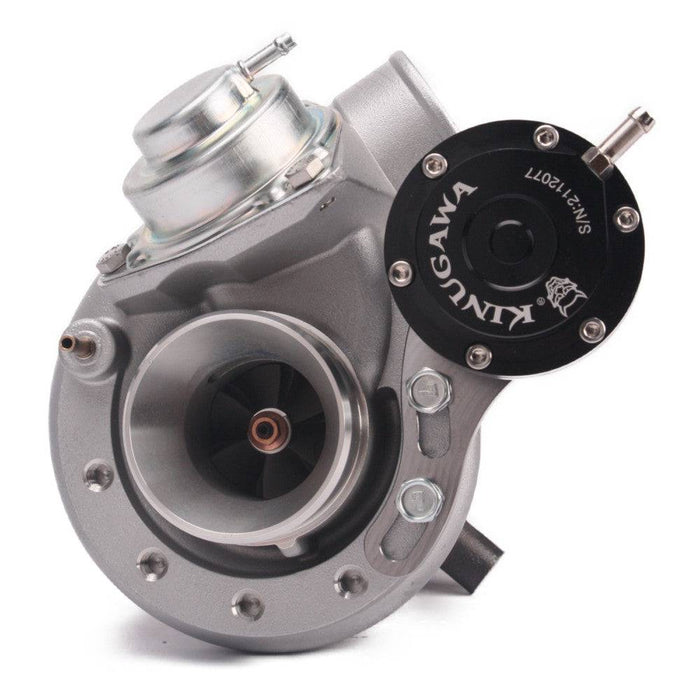

- 1 x turbocharger
- 1 x factory BCV, or adjustable BCV / BOV (3 options)
- 1 x oil feed line kit
- 1 x water coolant feed and return line kit
- 1 x turbine inlet gasket and outlet flange
- 1 x oil return pipe kit
- 7 x stud and nut set
- 1 x tee fitting
- 1 x Balance report with anti-counterfeit tag↗
PRODUCT SITUATION
- Brand New
- Complete CHRA balanced by Schenk MBRS110 Germany
PROVIDER
- Kinugawa Turbo Systems
WARRANTY
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
