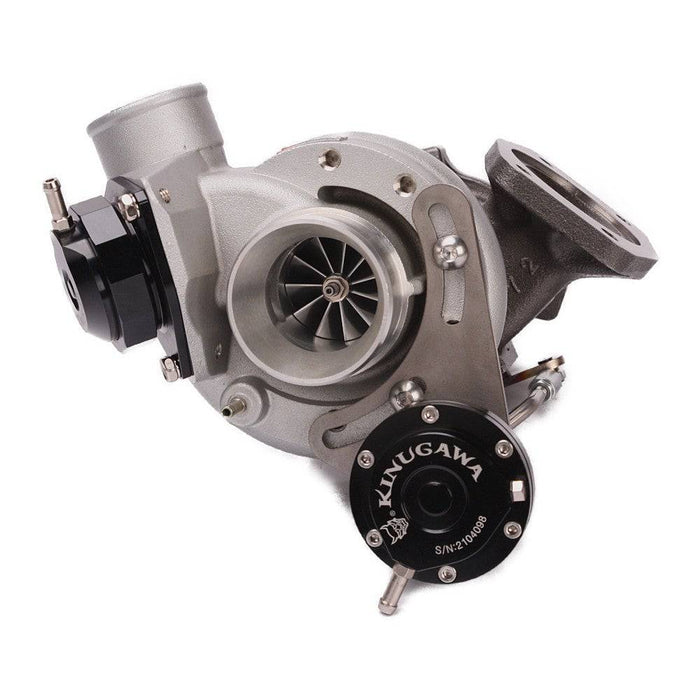

Kinugawa TD04HL Turbo Upgrade — 7cm Angled Flange — Volvo 740 & 940 B230FT / B230FK — 300 to 370HP
When your Volvo 740 or 940 build is targeting serious power — 300HP and beyond — the Kinugawa TD04HL 7cm Angled Flange is the housing choice that delivers. The larger 7cm nozzle area (AR.49) moves more exhaust gas than the 6cm units, and the angled flange outlet suits custom downpipe routing where a straight exit isn’t practical. Available in 19T and 20T billet compressor configurations, this is the high-power variant of the TD04HL Volvo lineup.
Vehicle Fitment
- Volvo 740 / 745 (1990–) — 2.3L 121kW B230FT
- Volvo 940 / 945 (1990–1996) — 2.3L 121kW B230FT
- Volvo 740, 760, 940, 960 (1989–1998) — B230FT engine
- Volvo 940, 960 (1990–) — B200FT engine
- Volvo 940 (1991–1998) — B230FK engine
Direct replacement for OEM turbo part numbers: 49189-01000, 49189-01200, 49189-01210, 49189-01260, 49189-01270
CHRA & Core Specification
- Core: TD04HL-19T / 20T
- Bearing type: Journal bearing
- Condition: Brand new
- Country of origin: Taiwan
Compressor Wheel Options — 2 Billet Power Levels
- 19T — 46 / 56mm, Trim 63 → 300–350HP (gasoline)
- 20T — 47 / 56mm, Trim 66 → 320–370HP (gasoline)
Blade note: 6+6 blades improve low-end torque; 11+0 blades favour top-end power.
Turbine Wheel — 3 Options
45.6 / 52mm turbine wheel, available in three specifications:
- STD (11 blades) — standard specification
- STS (9 blades) — Superior Turbine Strike, faster spool response
- STS 55 (10 blades) — high-flow advanced variant for maximum top-end
Learn more about STS technology →
Compressor Housing
- Universal rotated plate type
Turbine Housing
- Nozzle area: 7cm / AR.49
- Inlet: STD Volvo T3
- Outlet: Angled flange type
- Wastegate: Internal gated
Valve Type — BOV or BCV (Your Choice)
Rotated plate cover with an adjustable blow-off valve (BOV) or recirculating bypass valve (BCV). Learn the difference between BOV and BCV →
Three springs included to match your actuator pressure:
- Green spring: 5–15 Psi (default installation)
- Yellow spring: 15–23 Psi (included)
- Blue spring: 23–30 Psi (included)
Actuator Pressure
- Default: 1.0 bar / 14.7 Psi
- Custom options: 0.3, 0.5, 0.8, 1.2, 1.5, 1.7, or 2.0 bar
What's Included
- 1 × Turbocharger (TD04HL, your selected spec)
- 1 × Adjustable BOV or BCV with 3 springs (Green / Yellow / Blue)
- 1 × Oil and water line kit (#320-14054-003)
- 1 × Balance report with anti-counterfeit authentication tags
Performance Disclaimer
Maximum power figures are calculated from the compressor map choke flow (total turbo capability) and represent potential flywheel power. Actual results depend on your vehicle’s modifications, tuning, and calibration.
Warranty
Kinugawa Turbo Systems offers a 1-Year Trouble-Free Warranty from the purchase date to the original purchaser. If your turbocharger fails or develops an issue for any reason, return it for a free overhaul, recondition, or replacement. Kinugawa has you covered.
