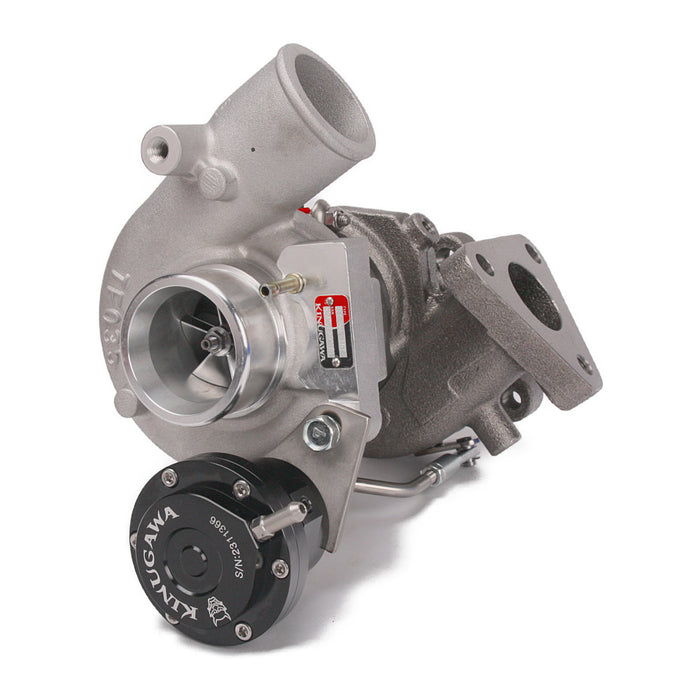

Brand new bolt-on turbo upgrade for the Mitsubishi Pajero III 3.2 Di-D (2000–03) with the 4M41 engine. The Kinugawa TF035HL-15T delivers +30% torque and +20% horsepower over the stock TF035HL-14GK. Billet compressor wheel, 360° thrust bearing, oil & water cooled — direct bolt-on, no modifications required.
Application
- Mitsubishi Pajero III 3.2 Di-D 2000–03 — 4M41 diesel, 118/121 kW, 165 HP, 3.2L
- Replaces OEM: TF035HL-14GK, 49135-03410, 49135-03411, ME191474, ME203949, 2246666
CHRA Size: TF035HL-15T
Wheels Spec
- Compressor wheel: 42/56 mm — upgraded from stock 39.58/51 mm — (6+6 blades for low-end torque | 11+0 blades for top-end speed)
- Turbine wheel: 43/37.7 mm — 2 types: STD, STS. Click here to learn more about STS technology.
Compressor Housing: Stock type
Turbine Housing
- Nozzle area: 4 cm² | Inlet: 3-bolt | Outlet: 4-bolt | Wastegate: Internal gated
Bearing Type: Journal Bearing with 360-degree performance thrust bearing kit
Cooling: Oil and water cooling
Actuator Pressure
- Default: 1.0 bar / 14.7 PSI
- Available on request: 0.3 / 0.5 / 0.8 / 1.2 / 1.5 / 1.7 / 2.0 bar — add a note at checkout or contact us
Condition: Brand New
The Set Includes
- 1 x Turbocharger
- 1 x Turbine inlet and outlet gasket set
- 1 x Banjo bolt kit for turbo oil feed side
- 2 x Banjo bolt kit for turbo water coolant side
- 1 x Balance Report with Anti-Counterfeit Tag
Provider: Kinugawa Turbo Systems
Warranty
Kinugawa offers a TROUBLE-FREE WARRANTY for 1 year from the purchase date. If your turbocharger fails or has any issue, return it for a free overhaul, recondition, or replacement — no questions asked.
