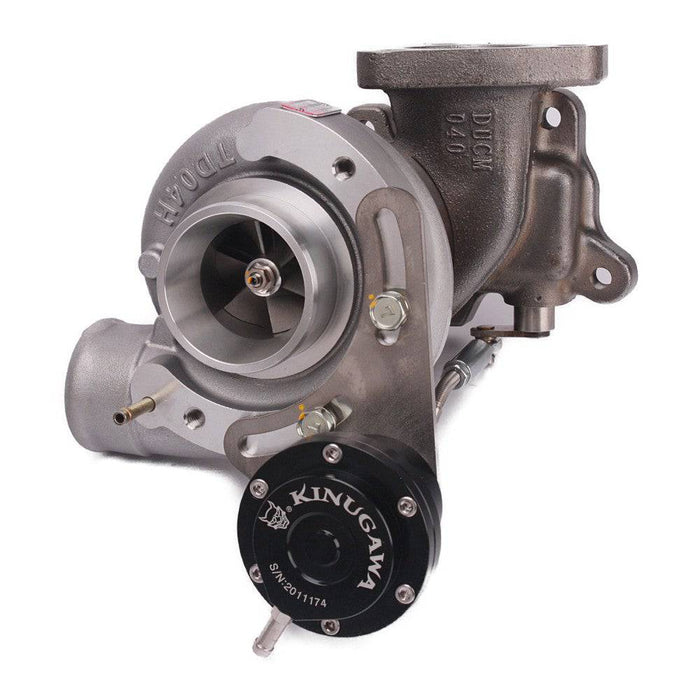

Brand new bolt-on turbo upgrade for the Mitsubishi 4D56T 2.5L diesel — 5-bolt turbine outlet, internal wastegate. The Kinugawa TD04L-15T delivers maximum airflow with a high-flow billet compressor wheel, faster spool, and superior durability over the OE unit. Direct bolt-on — no modifications required.
Application
- Mitsubishi 4D56T 2.5L diesel — 5-bolt turbine outlet housing: Pajero, Delica, Triton
- Replaces OEM: 49177-01500, 49177-01501, 49177-01510, 49177-01511, 49177-01512, 49177-01513, 49177-01514, 49177-01515 — all 49177-015xx turbos
Wheels Spec
- Compressor wheel: 42/56 mm (15T) — (6+6 blades for low-end torque | 11+0 blades for top-end speed)
- Turbine wheel: 40/47.1 mm — 2 types: STD, STS. Click here to learn more about STS technology.↗
Compressor Housing: Stock type
Turbine Housing
- Nozzle area: 4 cm² | Inlet: 3-bolt | Outlet: 5-bolt | Wastegate: Internal gated
Bearing Type: Journal Bearing
Cooling: Oil cooling
Actuator Pressure
- Default: 1.0 bar / 14.7 PSI
- Available on request: 0.3 / 0.5 / 0.8 / 1.2 / 1.5 / 1.7 / 2.0 bar
The Set Includes
- 1 x Turbocharger
- 1 x Oil feed banjo bolt
- 1 x Oil return gasket
- 1 x Turbine gasket set (inlet/outlet)
- 1 x Balance Report with Anti-Counterfeit Tag
Situation: Brand New — Full balance certified on Schenk (Germany)
Provider: Kinugawa Turbo Systems
Warranty
Kinugawa offers a TROUBLE-FREE WARRANTY for 1 year from the purchase date. If your turbocharger fails or has any issue, return it for a free overhaul, recondition, or replacement — no questions asked.
