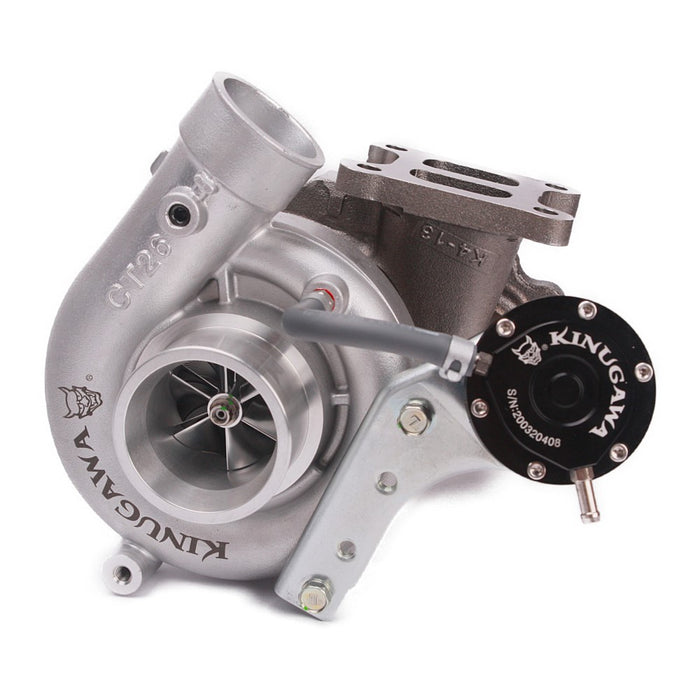

CT26 60-1 Turbo Upgrade for Toyota 3S-GTE Engines
Precision-engineered bolt-on turbocharger upgrade for Toyota 3S-GTE powered Celica GT4 (ST185, ST205) and MR2 Turbo (SW20) platforms. Features a Garrett 60-1 style cast 7+7 compressor wheel (60/76mm) for proven high-flow performance, direct replacement for CT20B and CT26 twin-scroll turbos, and complete generation-specific installation hardware for Gen 2 and Gen 3 engine variants.
Vehicle Compatibility
Toyota Celica GT4:
- 1989.9 – 1993.10 Celica ST185 (3S-GTE)
- 1991.10 – 1992.4 Celica ST185RC (3S-GTE)
- 1994.2 – 1999.8 Celica ST205 (3S-GTE)
Toyota MR2 Turbo (SW20):
- 1989.12 – 1993.11 SW20 Series 1 & 2
- 1993.12 – 1999.8 SW20 Series 3
- 1990–1993 MR2 Turbo (North America 1991–1995)
- 1993+ MR2 Turbo (Japan)
Engine Code: Toyota 3S-GTE / 3SGTE (all generations compatible with CT20B or CT26 twin-scroll turbo)
Fitment Note: Custom housing bolts to stock manifold and downpipe — compatible with aftermarket downpipes and intercoolers designed for CT2x turbos (CT26/CT20B/CT21/CT27).
⚠ Important: Does NOT fit Generation 4 (ST215) or Generation 5 (ST246) — these use an exhaust housing cast into the cylinder manifold, incompatible with this turbo's separate turbine housing design.
Engineering Specifications
Core Assembly: CT26 60-1 with journal bearing system, dual oil and water cooling
Compressor Wheel: 60.0 / 76.0mm — Garrett 60-1 style Cast 7+7
• Cast 7+7 blade design delivers proven high-flow performance in the Garrett 60-1 tradition
Turbine Wheel: 51.9 / 67.9mm available in two configurations — explore STS technology↗
• 10 Blades STD — stock-style response and reliability
• 9 Blades STS — Superior Turbine Strike for improved spool and durability
Compressor Housing: Bolt-on stock type
Turbine Housing: Bolt-on stock type with internal wastegate
Wastegate Actuator: 1.0 bar (14.7 PSI) default
• Available spring rates: 0.3, 0.5, 0.8, 1.2, 1.5, 1.7, 2.0 bar (specify at checkout or contact us)
Generation Selection Guide
Choose the correct generation to match your engine's oil feed fitting:
- Gen 2 — M18×1.5 oil feed fitting (ST185, SW20 Series 1 & 2)
- Gen 3 — M12×1.25 oil feed fitting (ST205, SW20 Series 3)
CT26 60-1 vs CT26 GT3071R — Which Should You Choose?
- CT26 60-1 (this product): Garrett 60-1 style cast 7+7 wheel (60/76mm) — proven high-flow design, ideal for builds prioritizing top-end power and established Garrett 60-1 airflow characteristics
- CT26 GT3071R: Billet 6+6 or 11+0 wheel (53.1/71mm) — smaller inducer for improved low-end torque or top-end speed depending on blade selection
Gen 2 Install Kit Reference
Gen 3 Install Kit Reference
Complete System Includes
- 1 × CT26 60-1 turbocharger assembly
- 1 × Turbine inlet gasket
- 1 × Turbine outlet gasket
- 1 × Oil feed and return gasket
- 2 × Water coolant gaskets
- 10 × Stud and nut set
- 1 × 20cm vacuum hose
- 1 × Balance report with anti-counterfeit verification tag↗
Performance Notes
Maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. Actual performance results depend highly on your vehicle's modifications and tuning/calibration.
Quality Assurance & Coverage
Condition: Factory-new assembly
Balancing: Complete CHRA balanced using SCHENCK MBRS 110 precision equipment (Germany)
Manufacturing Origin: Taiwan | HS Code: 841199
Warranty Protection: 1-year Kinugawa Trouble-Free Warranty covering free overhaul, reconditioning, or replacement from original purchase date. Complete peace of mind regardless of failure cause.
