Application
- For Mitsubishi EVO 4~8 4G63T RS GRS MR FQ TD05HR-16G Turbo Upgraded.

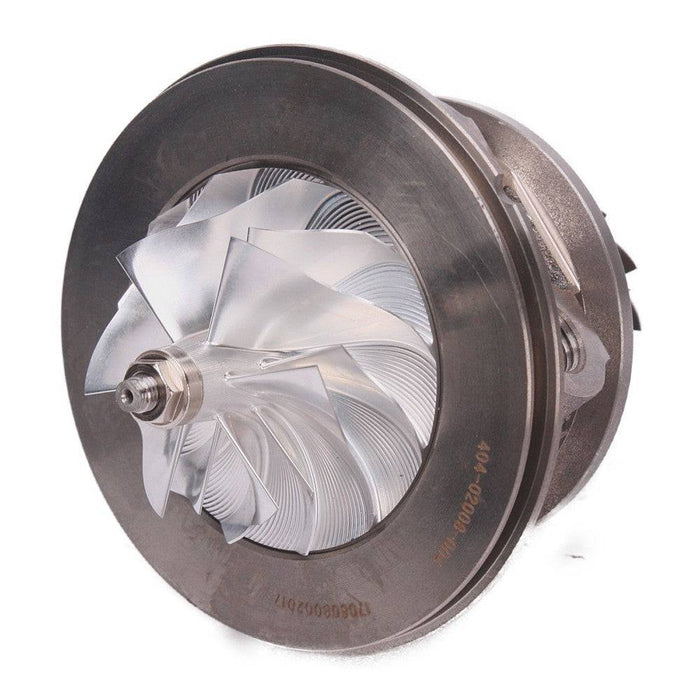

CHRA Size
- Reverse TF06-18K Wheel
Wheels Spec
- Compressor wheel: 55.1 / 75 mm (7+7 Point Milling / Third-Order Surface)
- Turbine wheel: 61.5 / 54.1 mm (TF06 9 blades STS. Click here to learn more about STS technology.)
Bearing Type
- Journal Bearing with 360-degree performance thrust bearing kit
Cooling Type
- Oil and water cooling
The Set Includes
- 1 x CHRA
- 1 x Banjo bolt w/ washer for turbo oil feed side (#315-01101-018)
- 1 x Oil return gasket (#413-02006-001)
- 2 x Banjo bolts w/ washer for turbo water coolant side (#315-01101-002)
- 1 x Oil return gasket (#413-02006-001)
- 2 x Banjo bolts w/ washer for turbo water coolant side (#315-01101-002)
Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- No
Warranty
- No
