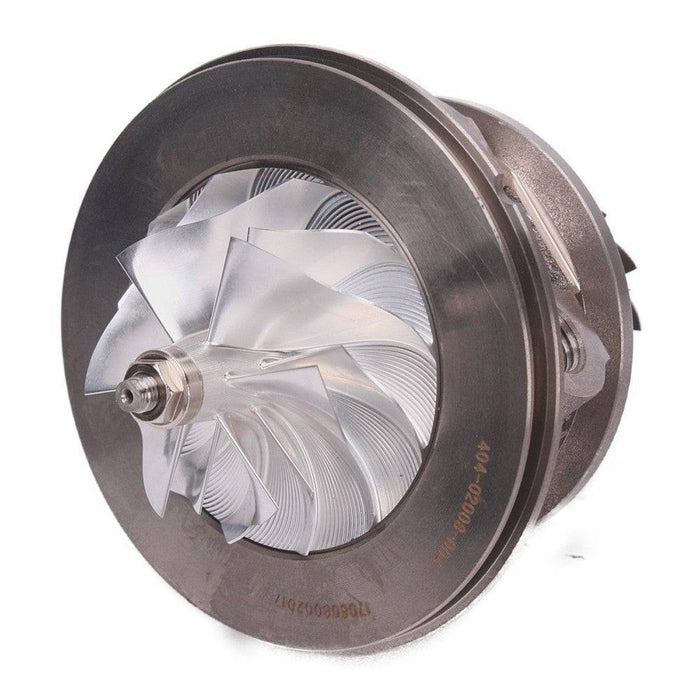

Kinugawa Turbo CHRA Cartridge TD05HR-20G for Mitsubishi Lancer EVO 4~8
Application
- For Mitsubishi EVO 4~8 4G63T RS GRS MR FQ
CHRA Size
- TD05HR-20G Wheel
Wheels Spec
- Compressor wheel: 52.5 / 68 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 49.2 / 56 mm (2 types available: STD, STS. Click here to learn more about STS technology.)
Bearing Type
- Journal Bearing with 360-degree performance thrust bearing kit
Cooling Type
- Oil and water cooling
The Set Includes
- 1 x CHRA
- 1 x Banjo bolt w/ washer for turbo oil feed side (#315-01101-018)
- 1 x Oil return gasket (#413-02006-001)
- 2 x Banjo bolts w/ washer for turbo water coolant side (#315-01101-002)
- 1 x Oil return gasket (#413-02006-001)
- 2 x Banjo bolts w/ washer for turbo water coolant side (#315-01101-002)
Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- No
- No
