Application
- Fits Kinugawa Turbo TD05H-18G for MAZDA Mazdaspeed 3 6 MPS MZR DISI 2.3L CX7 CX9

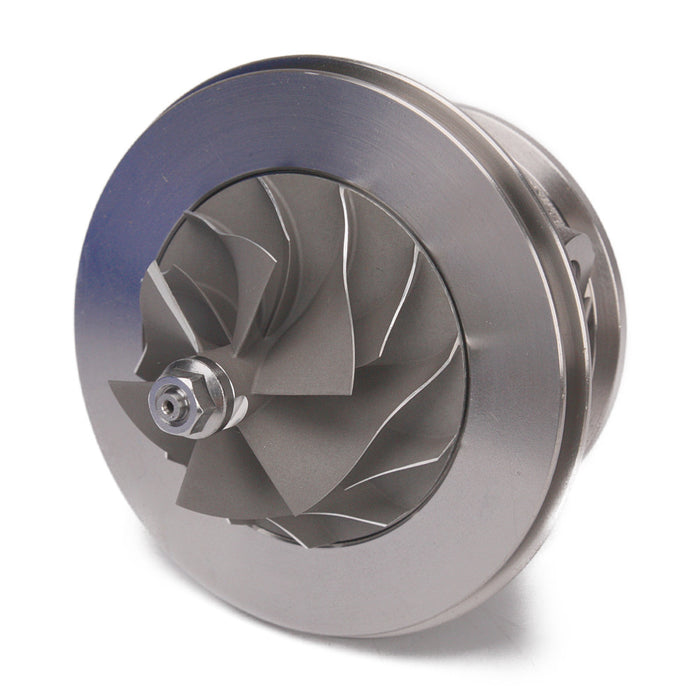

CHRA Size
- TD05H-18G
Wheels Spec
- Compressor wheel: 50.3 / 68.0 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (3 types offered: STD, STS, STS55. Click here to learn more about STS technology.)
Bearing Type
- Journal Bearing with 360-degree thrust bearing kit
Cooling Type
- Oil and water cooling
The Set Includes
- 1 x CHRA
Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- No
