Description
Application
- Fits Kinugawa Turbo 3" or 4" TD05H-16G 7cm for Toyota Land Cruiser 1HD-T 1HD-FT 1HD-FTE
- Fits Kinugawa Turbo 3" TD05H-16G 6cm T3 2.5" V-band for Toyota Land Cruiser 1HD
- Fits Kinugawa Turbo 3" TD05H-16G-6 T3 2.5" V-Band for Toyota Landcruiser 1HZ 75 79 80 100 105
- Kinugawa Turbo 3" TD05H-16G-7 for Toyota Land Cruiser 1HZ 75 79 80 100 105

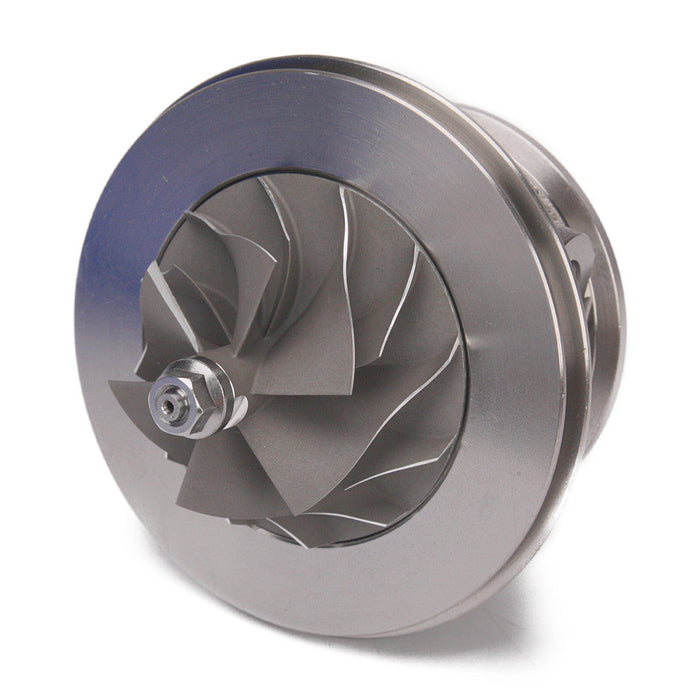

CHRA Size
- TD05H-16G
Wheels Spec
- Compressor wheel: 48.3 / 68.0 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 49 / 57 mm (3 types offered: STD, STS, STS 55. Click here to learn more about STS technology.)
Bearing Type
- Journal Bearing system with 360-degree performance thrust bearing
Cooling Type
- Oil and water cooling
The set includes
- 1 x CHRA
- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
WARRANTY
- No.
- No.
