Description
APPLICATION
- Gasoline engine: 2.5~4L
- Diesel engine: 4~6L
- Horsepower range: 400~450whp
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
- Gasoline engine: 2.5~4L
- Diesel engine: 4~6L
- Horsepower range: 400~450whp
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
CHRA SIZE

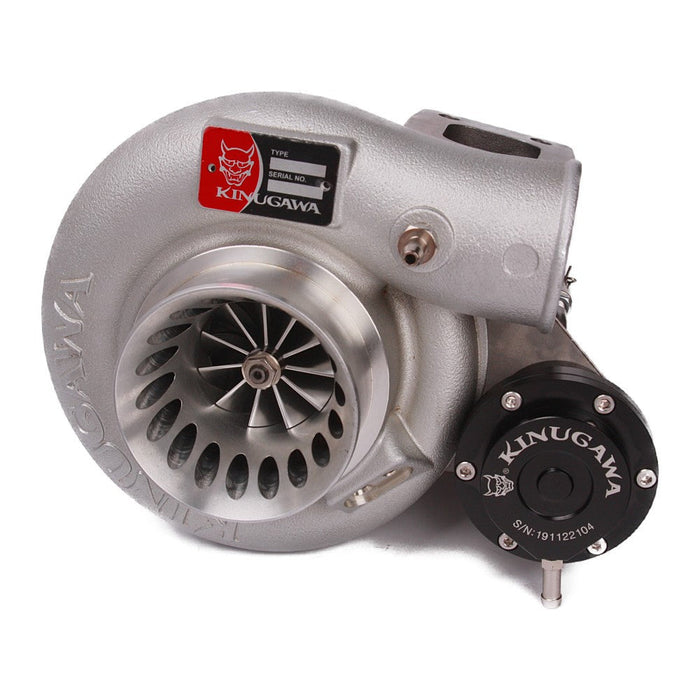

- TD06SL2-20G
WHEEL SPEC
- Compressor Wheel: 52.3 / 68.0 mm
(The 6+6 blade is better for low-end torque; the 11+0 blade is for top-end speed)
- Compressor Wheel: 52.3 / 68.0 mm
(The 6+6 blade is better for low-end torque; the 11+0 blade is for top-end speed)
- Turbine wheel: 61.0 / 54.1 mm
(3 types available: STD, STS, STS55. Click here to learn more about STS technology.↗)
COMPRESSOR HOUSING
- Nozzle Area: AR.60
- Inlet: 3"
- Outlet: 2"
TURBINE HOUSING
- Nozzle Area: 6cm^2 / AR .41 or 8cm^2 / AR .57
- Inlet: T3
- Outlet: 3 bolt GMC type to 3" V-band
- Wastegate: Internal gated
- Inlet: 3"
- Outlet: 2"
TURBINE HOUSING
- Nozzle Area: 6cm^2 / AR .41 or 8cm^2 / AR .57
- Inlet: T3
- Outlet: 3 bolt GMC type to 3" V-band
- Wastegate: Internal gated
- Note: This 3-bolt type of TD05/06 turbine housing is commonly used on some factory diesel engines such as Mitsubishi Fuso / Kobelco 4M50T TD05H (49178-02020 / 49178-02030...), CAT S6K TD06H, Kubota M105D/V4702, some gasoline engine as GMC 4.3L LB4 Syclone/Typhoon...
And such turbine housing was used on some Greddy (RB20DET, RB25DET, 7M-GTE, 3S-GTE...), and DTS/MTQ...turbo kits.
BEARING TYPE
- Journal Bearing with 360-degree performance thrust bearing
COOLING TYPE
- Oil and Water-Cooled
ACTUATOR PRESSURE
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
KIT INCLUDES
- 1 x Turbocharger
- 1 x Oil supply set
- 1 x Water supply and return pipe set
- 1 x Return oil pipeline
- 1 x Turbine inlet gasket and 3" v-band outlet adapter
- 1 x Balance report with anti-counterfeit tag↗
PRODUCT SITUATION
- Brand New
- Complete CHRA balanced by SCHENCK MBRS 110 Germany
PROVIDER
- Kinugawa Turbo Systems
WARRANTY
- One Year
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
And such turbine housing was used on some Greddy (RB20DET, RB25DET, 7M-GTE, 3S-GTE...), and DTS/MTQ...turbo kits.
BEARING TYPE
- Journal Bearing with 360-degree performance thrust bearing
COOLING TYPE
- Oil and Water-Cooled
ACTUATOR PRESSURE
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
KIT INCLUDES
- 1 x Turbocharger
- 1 x Oil supply set
- 1 x Water supply and return pipe set
- 1 x Return oil pipeline
- 1 x Turbine inlet gasket and 3" v-band outlet adapter
- 1 x Balance report with anti-counterfeit tag↗
PRODUCT SITUATION
- Brand New
- Complete CHRA balanced by SCHENCK MBRS 110 Germany
PROVIDER
- Kinugawa Turbo Systems
WARRANTY
- One Year
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
