Application
- Ford Maverick 1988-1994,Engine:TD42T Diesel 4.2L 145HP
- Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T engine
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size

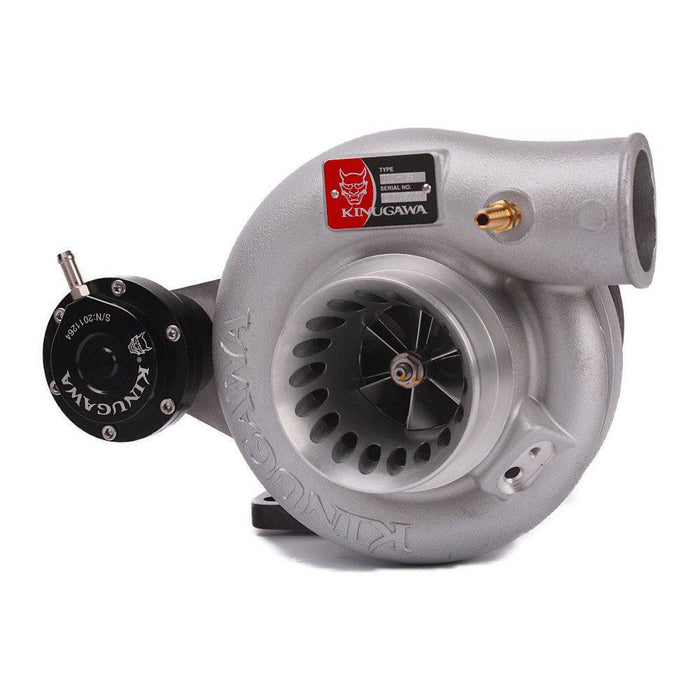

- TD05H-18G
Wheels Spec
- Compactor wheel: 50.3 / 68.0 mm (The 6+6 blade type better for low-end torque and the 11+0 is for top-end speed)
- Turbine wheel: 56 / 49.2 mm
Compressor Housing
- Nozzle area: AR.60
- Nozzle area: AR.60
- inlet: 3" anti-surge
- outlet: 2"
Turbines Housing
- Nozzle area: 8cm^2 / AR.57
- Input: T3
- Outlet: DTS 3-bolt type to 3" V-band
- Wastegate: internal gated
- Wastegate: internal gated
Bearing Type
- Journal bearing system with 360-degree thrust bearing kit
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The set includes
- 1 x Oil supply set
- 1 x water coolant and return set
- 1 x T3 gasket
- 1 x V-Clamp and V-Band Socket Adapter Kit
- 1 x Turbocharger
- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag
GR GQ Installation Kit Instruction
GU Installation Kit Instruction
GR GQ Installation Kit Instruction
GU Installation Kit Instruction
Situation
-Brand New
-Full balance from Schenk MBRS110 Germany
Provider
-Kinugawa Turbo System
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
