Collection: CHRA for SUBARU TD04 TD05 TD06

Kinugawa CHRA Cartridges for Subaru TD04 / TD05 / TD06 Turbos

Direct-fit, Schenk-balanced CHRA cartridges for 1998–2021 Subaru WRX, STI, Forester XT, Legacy GT, and Outback XT. Each unit ships with a balance report and anti-counterfeit tag — the most cost-effective way to rebuild or upgrade your Subaru turbo without replacing the full assembly.

TD04 Platform — WRX & Forester XT (1998–2008)

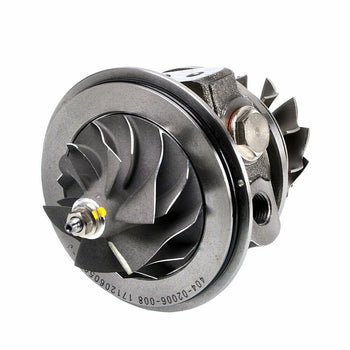

• TD04L-13T CHRA — Cast 6+6 / Billet 6+6 / Billet 11+0 compressor; STD or STS turbine. Fits EJ205 / EJ255 (98–08). Best Seller.
• TD04L-15T CHRA — Stepped-up compressor trim for mild power gains on EJ205 / EJ255 platforms.
• TD04HL-19T CHRA — High-flow HL housing; suits built EJ255 targeting 300+ whp.
• TD04HL-20T CHRA — Largest TD04 trim; maximum airflow for aggressive EJ builds.

TD05 Platform — Legacy GT, WRX, Forester XT (2008–2014)

• TD05H-16G CHRA — OEM-equivalent rebuild for 08+ Liberty / Legacy GT / WRX / Forester XT.
• TD05H-18G CHRA — Popular upgrade trim; improved spool and mid-range torque.
• TD05H-20G CHRA — High-flow option for tuned FA20 / EJ257 applications.
• TD05H-20G Ball Bearing CHRA — Faster spool, reduced friction; ideal for track and performance builds.
• TD05H-16K CHRA — K-trim compressor for broader power band on 08–14 WRX.
• TD05H G25-660 Ball Bearing CHRA — Garrett G25-660 compressor wheel swap; significant top-end airflow upgrade.

TD06 Platform — STI & High-Performance Builds

• TD06H-20G CHRA — Journal bearing; suits high-boost STI and Legacy GT builds targeting 350+ whp.

What Is Kinugawa STS Technology?

The STS (Superior Turbine Strike) turbine wheel improves boost response by 10–15% and reduces rotating mass for faster spool. Available as an option on select TD04 and TD05 CHRAs. Learn more about STS →

Every Kinugawa CHRA Includes

• Full dynamic balance certified on Schenk MBRS 110 (Germany)
• Oil feed banjo bolt + washers, oil return gasket, water coolant banjo bolts
• Balance Report with Anti-Counterfeit Tag
