What Is Turbo Axial Play and Why Does It Cause Failure?
Extreme axial (in-and-out) play occurs when the turbo rotor assembly is forcibly displaced toward the compressor inlet, causing the spinning blades to contact the housing wall. Even with healthy radial bearings, a one-way axial force can overwhelm the thrust bearing and produce uniform blade wear — often within a few thousand kilometers of operation.
Case Study: TD04HL-19T on Volvo 850 — Premature Compressor Failure at ~1,500 km
- Model: TD04HL-19T 7cm Angled Flange for Volvo 850 / S70 / V70 / S80
- Spec: Adjustable BCV / 19T Billet 11+0 / 10 Blades STS 55
- Ordered: August 25, 2025 | Installed: November 9, 2025
- Operating conditions: Conservative calibration (~15G equivalent), stock connecting rods, moderate boost and load

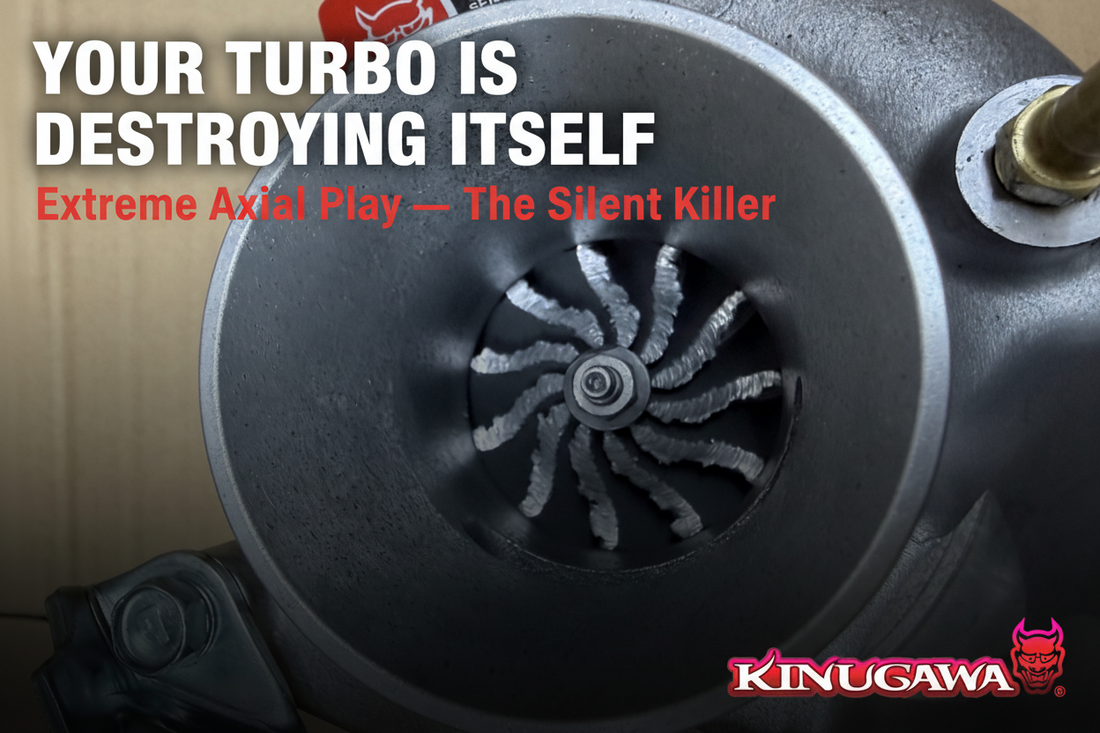

A high-pitched whistle was present from day one. During a subsequent engine teardown for a head gasket replacement, severe compressor wheel damage was discovered.
What Did the Inspection Find?
- Compressor blades almost completely worn down — uniform across all blades
- No axial shaft play detected; shaft rotates freely by hand
- No foreign objects found in the intake tract, intercooler, or charge piping
- Subtle circumferential witness band inside the compressor housing — no deep scoring
- Significant aluminum-oil paste throughout the charge system
- Fine aluminum slurry in the compressor outlet and piping
- Larger aluminum particles at the bottom of the intercooler inlet hose
- Approximately 0.5 L of oil drained from the intercooler
- Debris is predominantly aluminum consistent with compressor wheel material
What Causes Extreme Axial Displacement in a Turbocharger?
When journal bearings remain intact and hold the shaft radially, uniform blade contact with the housing has one physical explanation: the entire rotor assembly was pulled axially toward the air intake by a powerful external suction force during high-speed operation. Once the thrust bearing reached its load limit, slight axial displacement caused the blades to contact the compressor housing wall.
What Are the Most Common Causes of Turbo Axial Play Failure?
1. Clogged Air Filter (Most Likely Cause)
A severely clogged air filter creates extreme negative pressure (vacuum) in the intake tract at high RPM. This suction force pulls the high-speed rotor assembly forward, overwhelming the thrust bearing's axial load capacity.
Fix: Inspect and replace the air filter before installation and at regular service intervals.
2. Collapsing Intake Pipe
Soft or deteriorated intake piping can collapse under high load and rapid acceleration, creating an instantaneous vacuum restriction that generates the same axial pull effect.
Fix: Inspect all intake piping for deformation under boost. Replace with rigid silicone or aluminum piping where possible.
3. Blow-Off Valve (BOV) Malfunction
An improperly seated or malfunctioning BOV can create pressure spikes or vacuum events that stress the thrust bearing axially.
Fix: Confirm BOV operation before and after installation. Verify it opens and reseats cleanly under load.
Frequently Asked Questions About Turbo Axial Play
How do I check for axial play in my turbo?
With the turbo off the vehicle, grip the shaft and push/pull it along its axis (in and out). A small amount of movement (typically 0.025–0.076 mm) is normal. Excessive movement — especially if it allows blade contact with the housing — indicates thrust bearing wear or failure.
Can a turbo fail from axial play without radial play?
Yes. As shown in this case, the journal bearings (radial) were intact and the shaft rotated freely with no wobble. The failure was purely axial — the thrust bearing was overwhelmed by a one-directional suction force, not by radial bearing collapse.
Is uniform compressor blade wear always caused by axial displacement?
Uniform wear across all blades — with no evidence of foreign object ingestion and no radial play — is the diagnostic signature of axial displacement. Foreign object damage (FOD) typically produces asymmetric or localized damage on individual blades.
What is the difference between axial play and radial play in a turbo?
| Parameter | Axial Play (In-Out) | Radial Play (Side-Side) |
|---|---|---|
| Direction | Along shaft axis | Perpendicular to shaft |
| Bearing responsible | Thrust bearing | Journal bearings |
| Failure signature | Uniform blade tip wear | Asymmetric housing scoring |
| Common cause | Intake vacuum, clogged filter | Oil starvation, contamination |
| Normal spec (typical) | 0.025–0.076 mm | 0.03–0.06 mm |
📌 Note on Shaft Play: "Shaft play" is the umbrella term covering both axial and radial movement of the turbo shaft. In common workshop usage it often refers specifically to radial (side-to-side) play, but technically encompasses both directions. Axial and radial play have different root causes, different bearing components, and require different diagnostic checks. For a full breakdown of what causes shaft play and how to measure it, see: What Causes Turbo Shaft Play?
Related Reading
Collapsing intake hose is one of the leading causes of the axial suction force described in this article. If you suspect your intake piping may be contributing to turbo stress, see our detailed guide:
Resolution
After RMA inspection confirmed extreme one-way axial displacement as the root cause, the CHRA and compressor housing were replaced. The rebuilt unit was dispatched on March 20th.
If you are experiencing similar symptoms — whistling at startup, aluminum debris in charge piping, or premature blade wear — contact Kinugawa support for a warranty assessment.
