BOV vs BCV: What’s The Real Difference?

A blow-off valve (BOV) vents excess boost pressure to the atmosphere, while a bypass compressor valve (BCV) recirculates that pressure back into the intake before the turbocharger. The right choice depends on your sensor type, boost level, and whether throttle response or sound is the priority.

What Is the Purpose of a BOV or BCV?

When a turbocharged engine’s throttle body closes suddenly — during a gear change or lift-off — the turbocharger is still spinning and generating boost. Without a relief valve, that trapped pressure spikes violently in the intercooler piping, risking blown couplers, compressor surge, or turbo wheel damage from reverse airflow.

Both a BOV and a BCV solve this problem by opening a valve to release that pressure the moment manifold vacuum is detected. The difference is where that air goes.

How Does a BOV (Blow-Off Valve) Work?

A BOV vents 100% of the excess boost pressure directly to the atmosphere — outside the intake system entirely. This produces the iconic “pssh” sound on gear changes and is the fastest way to shed pressure, making it ideal for high-boost builds.

Pros: Maximum pressure relief, handles extreme boost levels, audible feedback.
Cons: On MAF-equipped cars, metered air is lost to atmosphere, which can cause a momentary rich condition between shifts. Boost must rebuild from 0 psi after each lift-off, increasing turbo lag.

An adjustable BOV addresses this by allowing partial recirculation — you can tune the split between vent-to-atmosphere and recirculation to match your boost level and tune.

→ Shop Kinugawa Adjustable BOV for TD04 / TD05

How Does a BCV (Bypass Compressor Valve) Work?

A BCV recirculates 100% of the excess boost back into the intake system — upstream of the turbocharger but downstream of the airflow meter. Because the metered air stays in the system, there is no rich condition on MAF-equipped cars and boost pressure recovers faster after lift-off, improving throttle response.

Pros: Better throttle response, no AFR disruption on MAF cars, quieter operation (stock-like), OEM-preferred design.
Cons: Limited by intake plumbing — very high boost or open-intake setups may not have enough volume to recirculate effectively. Can cause compressor surge if the spring rate is too stiff for the boost level.

→ Shop Kinugawa BCV for Honda Civic Type R FK8 / FL5 and TD04 Applications

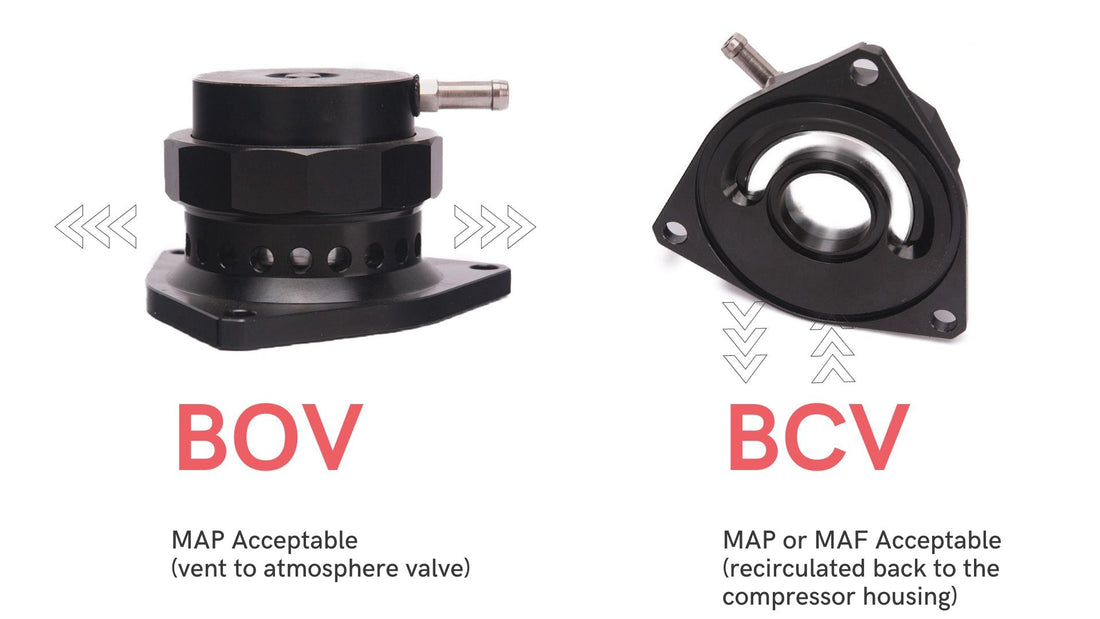

BOV vs BCV: Side-by-Side Comparison

Feature	BOV (Blow-Off Valve)	BCV (Bypass Compressor Valve)
Air routing	Vents to atmosphere	Recirculates to intake
Sound	Loud “pssh” on lift-off	Quiet / stock-like
Throttle response	Slower (boost rebuilds from 0)	Faster (pressure retained)
MAF sensor compatibility	Can cause rich condition	No AFR disruption
MAP sensor compatibility	Compatible	Compatible
High-boost suitability	Excellent	Limited by intake volume
OEM use	Rare	Common (Ford, Honda, SAAB, VOLVO)
Tuning requirement	May need retune on MAF cars	Typically plug-and-play

Which Should You Use — BOV or BCV?

Use a BCV if:

• Your car uses a MAF (Mass Air Flow) sensor — recirculation prevents AFR disruption.
• You want better throttle response and faster boost recovery between shifts.
• You are running a street or daily-driven build at moderate boost levels.
• Your car came with a factory BCV (Honda Civic Type R FK8/FL5, Ford Fiesta ST, SAAB 9-3, VOLVO 850 Turbo).

Use a BOV if:

• You are running a MAP (Manifold Absolute Pressure) sensor — vent-to-atmosphere is safe and effective.
• You are building a high-boost or high-horsepower setup where recirculation volume is insufficient.
• You have an open intake with no return path for recirculated air.
• You want the audible blow-off sound and have a supporting tune.

What Is a BCV Spacer?

A BCV spacer is a machined adapter that bolts between the factory BCV and the compressor housing. Cutouts in the spacer allow air to escape to atmosphere when the BCV opens — effectively converting a 100% recirculating BCV into a vent-to-atmosphere BOV without removing the stock valve.

This is popular on small-displacement OEM turbos (e.g., Honda 1.5T, Ford 1.6T EcoBoost) where the factory turbo spools so quickly that the added lag from VTA is imperceptible. Note: on MAF-equipped cars, a BCV spacer carries the same rich-condition risk as a BOV.

BOV vs BCV: Summary

• BOV — vents 100% to atmosphere. Best for high-boost, MAP-sensor, or open-intake builds.
• Adjustable BOV — splits between VTA and recirculation. Tunable for any boost level.
• BCV — recirculates 100% back to intake. Best for MAF-sensor, street, and OEM-replacement applications.
• BCV Spacer — converts a factory BCV to VTA without removing the stock valve.

Frequently Asked Questions

Does a BOV damage a turbocharged engine?

A properly sized and tuned BOV does not damage the engine or turbo. The risk comes from running without any relief valve — compressor surge and reverse airflow are the real threats to turbo longevity.

Will a BOV cause my car to run rich?

On MAF-equipped cars, yes — momentarily. The air metered by the MAF sensor is vented before it reaches the engine, causing a brief rich condition. A BCV or adjustable BOV with partial recirculation eliminates this issue.

Can I use a BCV on a high-boost build?

It depends on your intake plumbing. If there is sufficient volume and a clear return path upstream of the turbo, a high-flow BCV can work at elevated boost. For builds above 30 psi or with open intakes, a BOV is typically more reliable.

What vehicles use a factory BCV?

Common OEM BCV applications include the Honda Civic Type R FK8 and FL5 (K20C1), Honda Civic 1.5T, Ford Fiesta ST and Focus ST, SAAB 9-3 Aero, VOLVO S40/S70/850 Turbo, and most Mitsubishi TD04-equipped vehicles.
