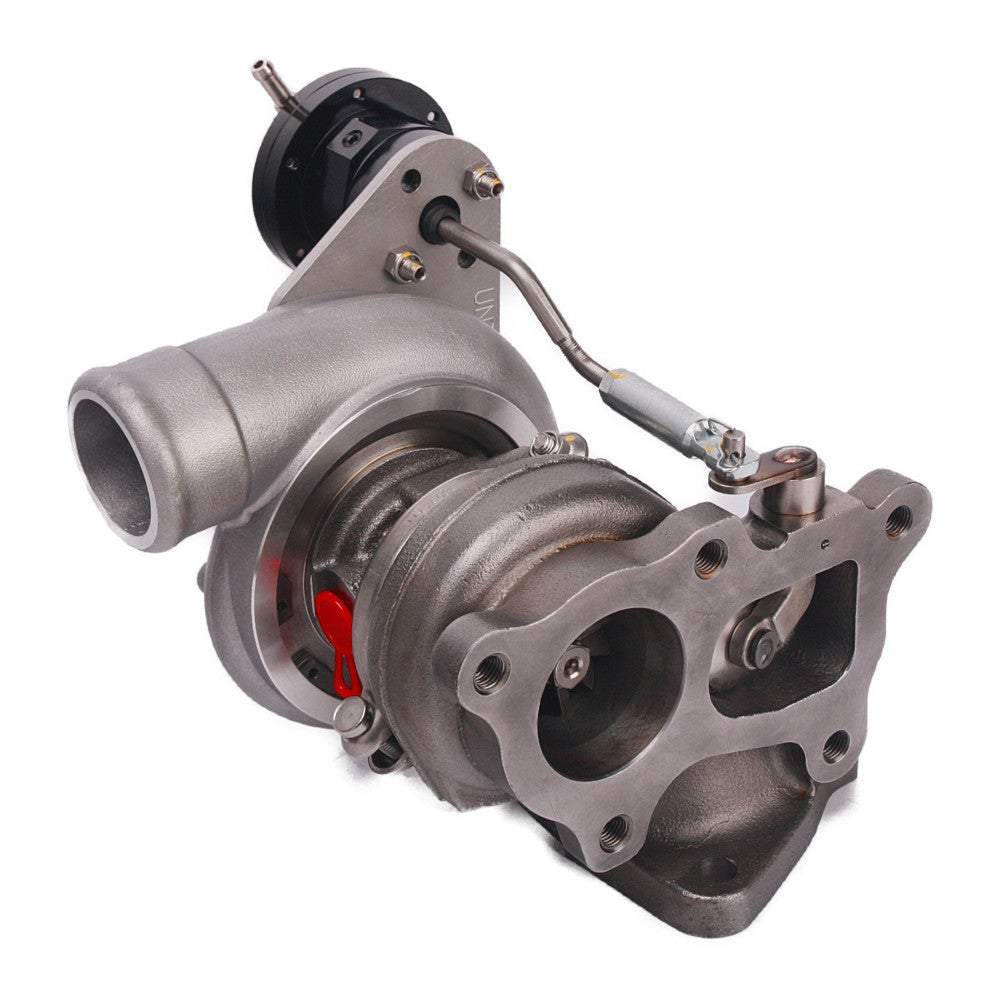

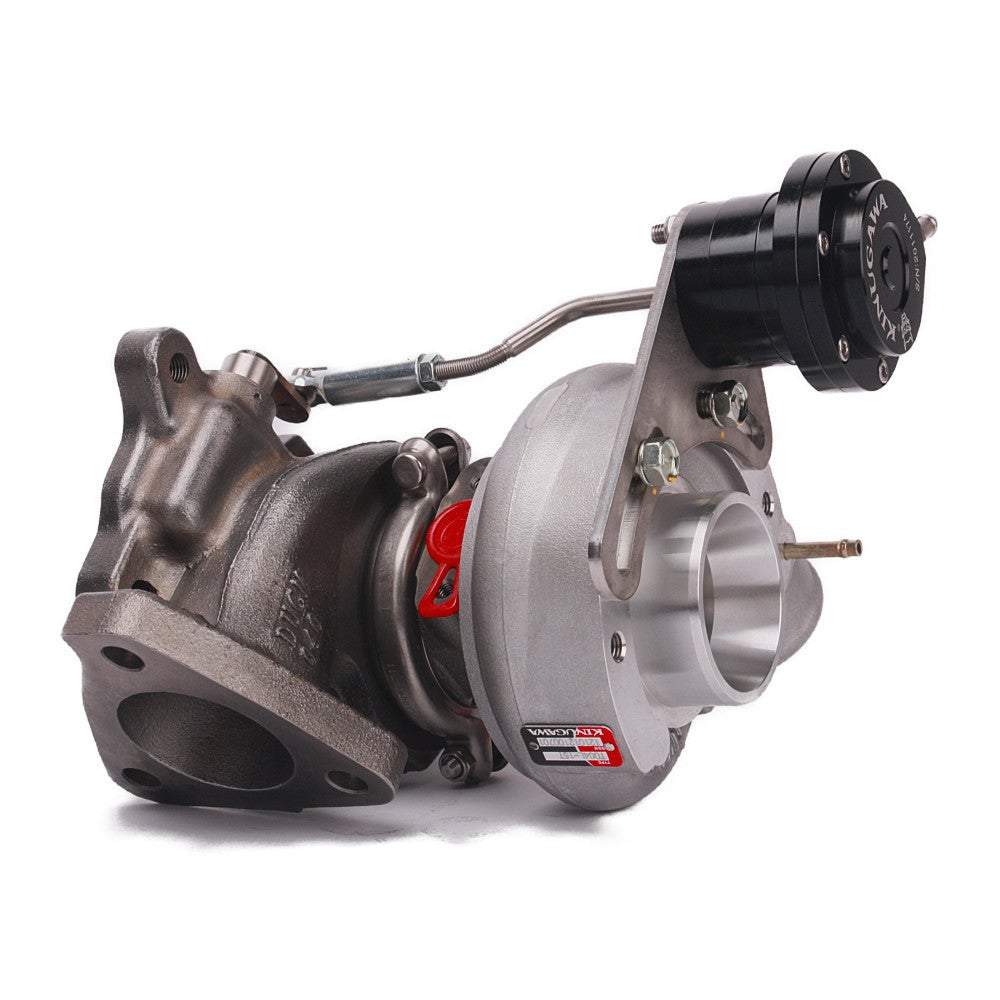

Kinugawa Turbo TD04-13T 5 Bolt Outlet Upgrade for Mitsubishi 4D56T 2.5L Pajero Delica Triton

Sale price $749.00 Regular price $749.00



Application

- Mitsubishi 4D56T turbocharger with 5 bolt turbine outlet housing on 2.5L diesel Delica, Pajero L200, L300, L400

- TD04: 49177-02500, 49177-02501, 49177-02502, 49177-02503, 49177-02510, 49177-02511, 49177-02512, 49177-02513, 49177-02520, 49177-02521, 49177-02530, 49177-02531, 49177-02540, 49177-02551...all 49177-025xx turbo with 5 bolt outlet

- TF035HM: 49135-02100, 49135-49135-02110, 49135-02200, 49135-02210, 49135-02220, 49135-02230, 49135-02240

- 1992-1996 Mitsubishi L 200 2,5L TD 4WD (K_4T) with 4D56 Engine
- 1988-1996 Mitsubishi L 300 2,5L TD 4WD (P25W,P25V) with 4D56 Engine
- 1986-1989 Mitsubishi Pajero I 2.5L TD with 4D56 Engine
- 1989-1990 Mitsubishi Pajero I 2.5 TD with 4D56 Engine
- 1990-1991 Mitsubishi Pajero II 2.5 TD with 4D56 Engine

- Horsepower Range: 20~25% horsepower and torque increased.

Wheels Spec
- Compressor wheel: 40.6 / 56 mm (13T). The stock type is TD04-9B 34.7/49.1 mm  (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: The stock type 40 / 47.1 mm (TD04 STD)

Turbines Housing
- 4cm ^ 2

Bearing Type
- Journal Bearing

Cooling Type
- Oil Cooling Bearing System (We blocked the water holes but you can unblock them to use the water lines attached)

The set includes
1 x Turbocharger
1 x oil feed line kit
1 x oil return gasket
1 x turbine gasket set in/outlet
1 x water line kit included
1 x balance report with anti-counterfeit tag

Situation
- Brand New
- Balance from Schenk Germany

Provider
- Kinugawa Turbo Systems

Guarantee
- One year

Kinugawa STS Turbin Wheel


Kinugawa Turbo Systems Compressor Map TD02-TD08
Kinugawa Turbo Systems SCHENK Balancer
Kinugawa Turbo Systems Anti-Counterfeit Tag
`
