Kinugawa STS Turbocharger TD05H-18G 8cm T25 5 Bolt for Nissan Silvia SR20DET 200SX S14 S15

Regular price $1,059.00

Product Features
  • Brand:KINUGAWA
  • Features:Strengthen / Replace Turbo Chargers & Parts
  • Manufacturer Part Number:331-02035-002
  • Accommodation on the vehicle:Equipment Engines
  • Manufacturer:Kinugawa
  • Compressor wheel:Billet Wheel
  • Turbine Wheel:9 Blades Wheel
Product description
For Nissan Silvia td05h-18g td05h-18g turbo w / 9 wheel turbine blades
Position no.
-For nissan sr20det Silvia S14 S15
-Change and update the stock for garrett T28 TURBO Direclty
Wheels Spec

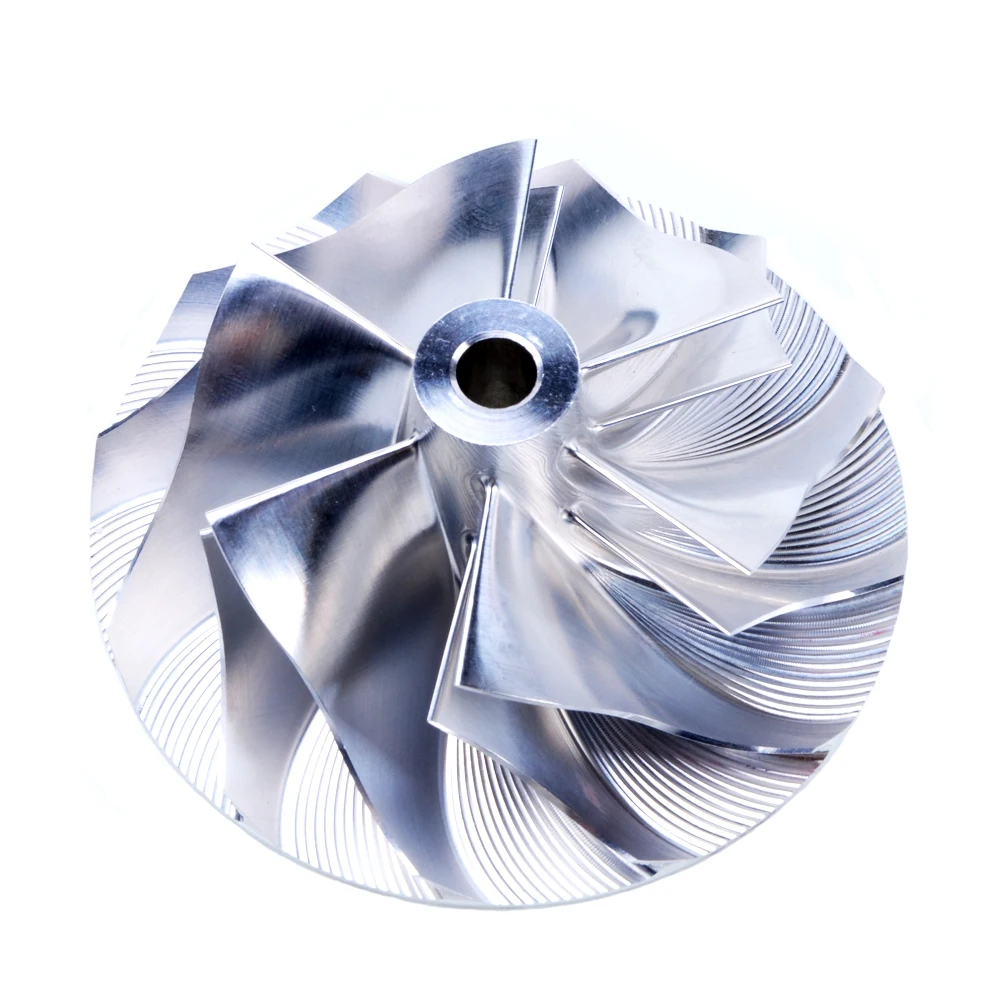

-Compressor wheel: 50.3 / 68 mm (Workpiece 6 + 6 blades of the wheel)

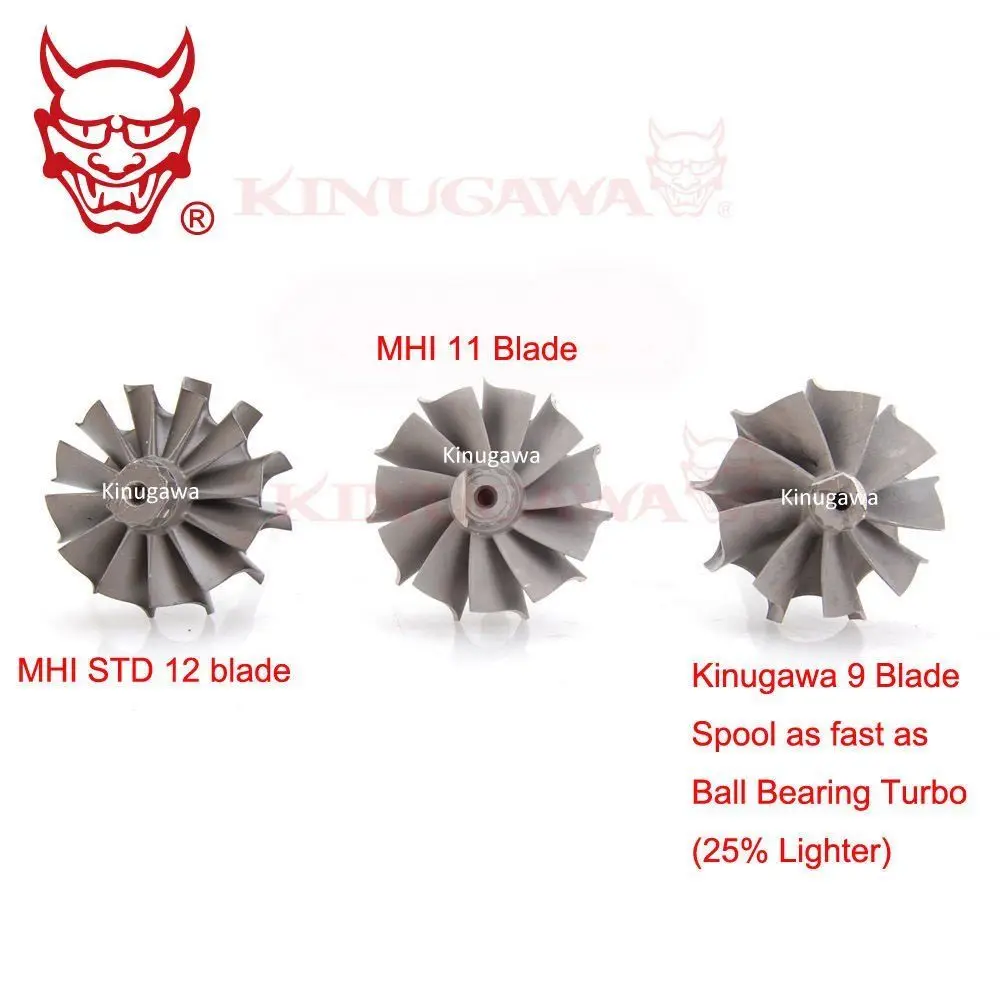

- Turbine wheel: 55.8 / 49.1 mm (9 blades of wheel)
Turbines Housing
-Size of nozzle: 8 cm.
-Introduction of the turbine: Т25
- Turbine outlet: 5 bolt / inner closed
-33 mm larger than the Flapper turbine
Bearing Type
-System of bearing system (high-speed bearing set)
Cooling Type
-System of oil and water cooling

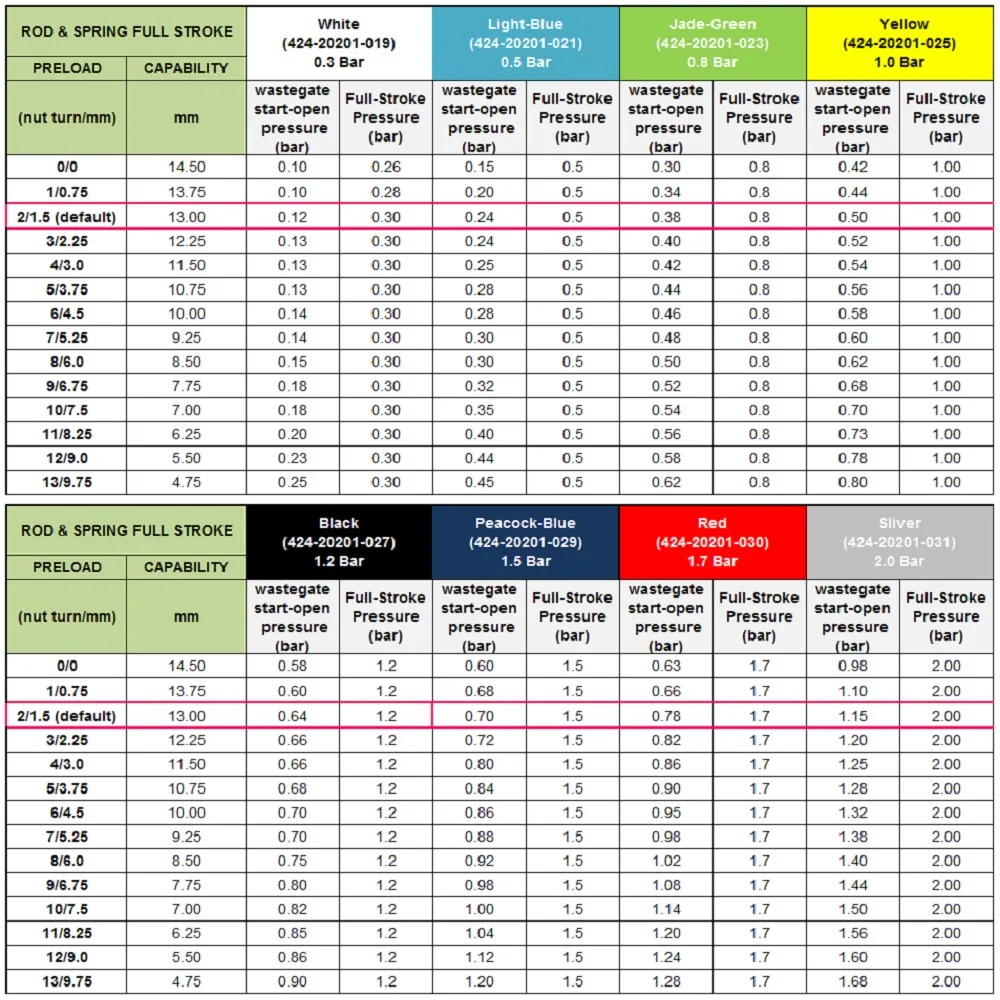

Drive Pressure
1.0bar The drive will go with the turbo.
-We have 0.5bar, 0.8bar, 1.2bar, 1.5bar, 1.7bar and 2.0bar drives, Please add a comment to your order if you need to change it.
Boost / HP
-Max l. s .: 350 ~ 420 liters. from.
-The acceleration is limited: 2.8bar
-Preposed beat: 1.5bar
The set includes
-1 x turbine inlet / outlet seal set
-1 x Compressor inlet / outlet gasket kit
-1 x Return gasket
-1 x Oil supply set
-1 x water supply and return line set
-1 x Return Oil Pipeline
-9 x Hairpin and nut set

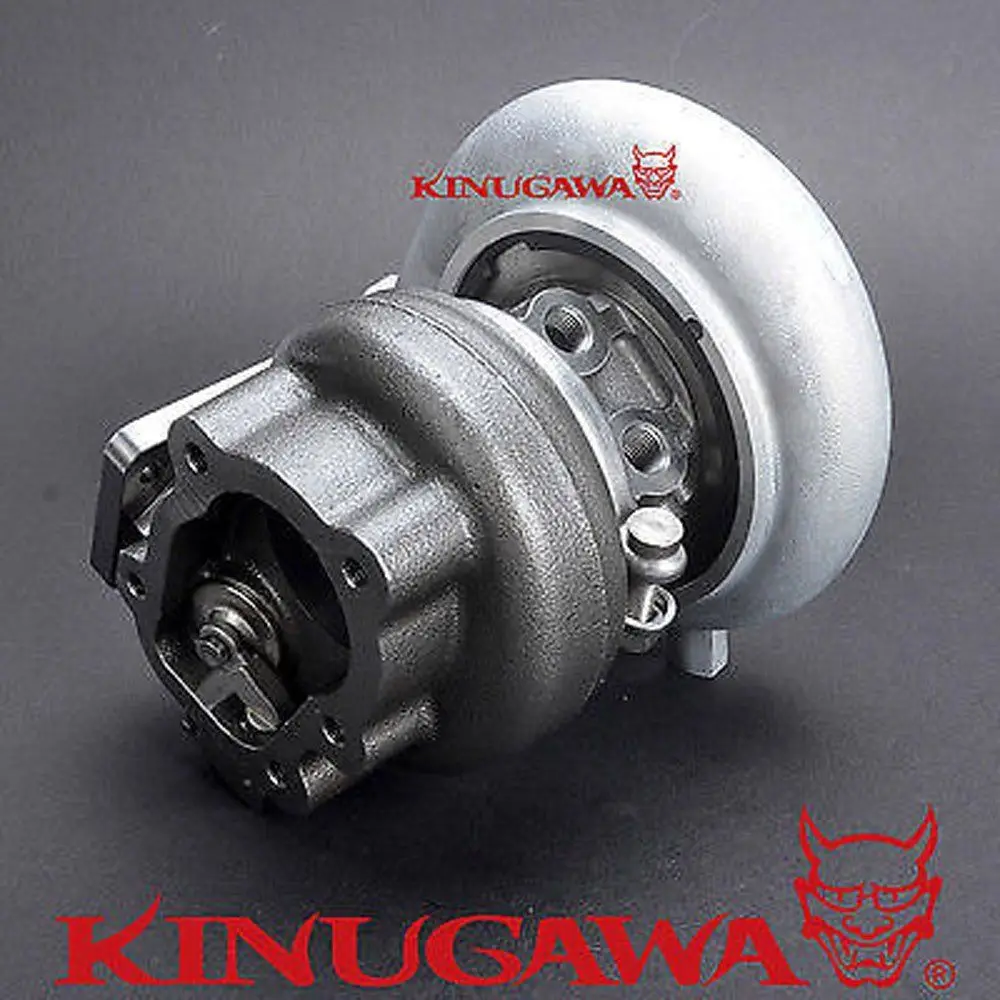

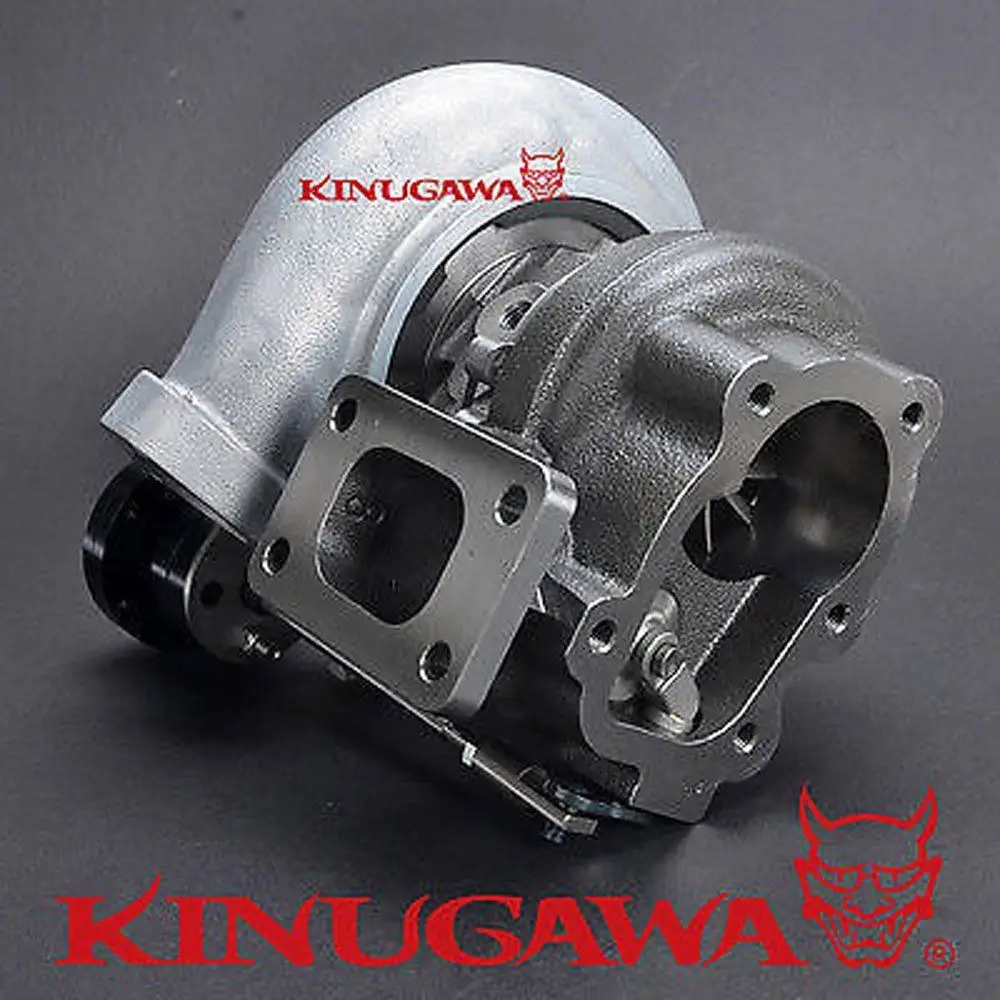

What you see in Image This is what you get. (picture # 1)
Situation code
-Fixed New

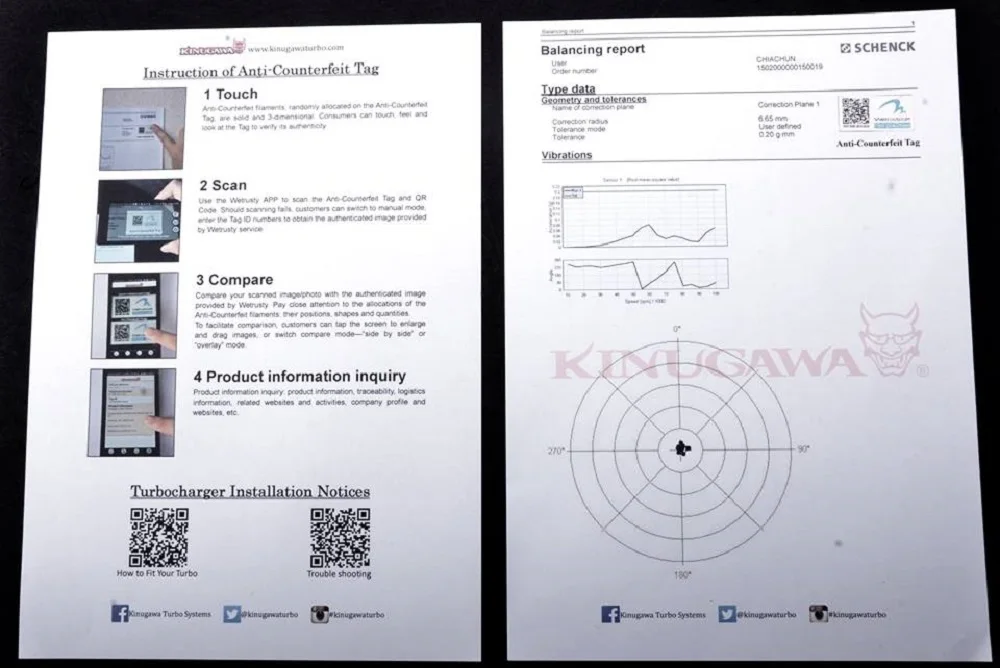

-Full balance from schenk mbrs 110 Germany
-Kinugawa Turbo
-One year
