Kinugawa Ball Beairng Turbo 3" TD05H-16G 6cm T3 3" V-Band Dump Pipe for Toyota Land Cruiser 1HD

Regular price $1,199.00



Description
Kinugawa Toyota 1HD diesel td05h-16g spec turbocharger with 3" cover and 6cm T3 3" V-Band turbine housing provides ultimate shorter spool time than the stock (8cm) and comes with the manifold convert kit that you can convert from ct26 to T3 flange easily.

Application
  • 1991~1997 TOYOTA 1HD-T / 1HD-FT 4.2L Land Cruiser (HDJ80/81/82)
  • TOYOTA Landcruiser 4.2LD HDJ100, HDJ78, HDJ79 1HD-FTE CT12B CT20B CT26
  • Replace & Upgrade 17201-17010, 17201-17030
  • The compressor cover inlet pipe / Air filter needs to modify to fit this 3” inlet.
  • Horsepower Range: 160~200hp
Wheels Spec
- Compressor wheel: 48.3 / 68.0 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56 / 49.2 mm
Feature: The STS (Superior Turbine Strike) turbine wheel. It will take a shorter time (decrease 5-8%) to build a boost and, at higher RPM, prevent choking easier because it's less inertia and restrictive than an 11 or 12 blades turbine.
Compressor Housing
- Compressor inlet: 3 " Anti-surge AR 60
Turbines Housing
- A/R: 6 cm .41
- Turbine input: T3
- Turbine outlet: 3" v-Band internal wastegate

Bearing Type
- Dual Ceramic Ball Bearing
Cooling Type
- oil and water cooling

Actuator Pressure
- Default 1.0barWe offer 0.5bar, 0.8bar, 1.2bar, 1.5bar, 1.7bar, and 2.0bar spring preinstalled, too. Please add a comment to your order if you need to change it.

Boost Level
- The peak pressure setup is limited: 2.8bar
- Suggested pressure setup: 1.5bar

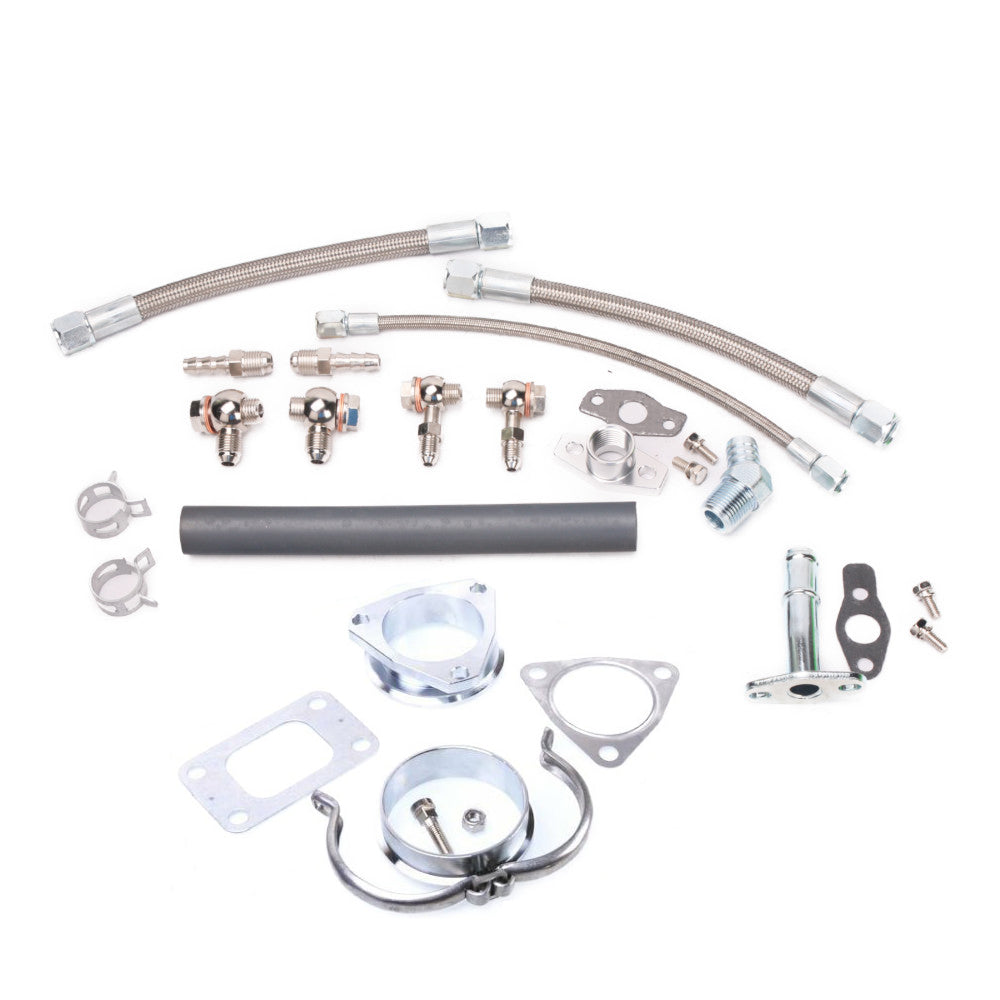

The set includes
- 1 x Oil supply set
- 1 x water coolant and return set
- 1 x T3 gasket
- 1 x V-Clamp and V-Band Socket Adapter Kit
- 1 x  Manifold convert kit for CT26 to T3 flange.
- 1 x Turbocharger
- 1 x Balance Report with Anti-Counterfeit Tag
kinugawa turbo manifold convert kit for CT26 to T3 flange
Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany

Provider
- Kinugawa Turbo Systems

Guarantee
- One year

 Kinugawa Turbo Toyota 1HZ Install kit instruction


Kinugawa STS Turbin Wheel

Kinugawa Turbo Systems STS Advanced Fast Spool



Kinugawa Turbo Systems SCHENK Balancer
Kinugawa Turbo Systems Anti-Counterfeit Tag
`
